![Tp-Link T1700G-28TQ V2 [330/772] Configuring auto refresh](/views2/1472751/page330/bg14a.png)
Configuring Layer 2 Multicast IGMP Snooping Configurations
Configuration Guide
305

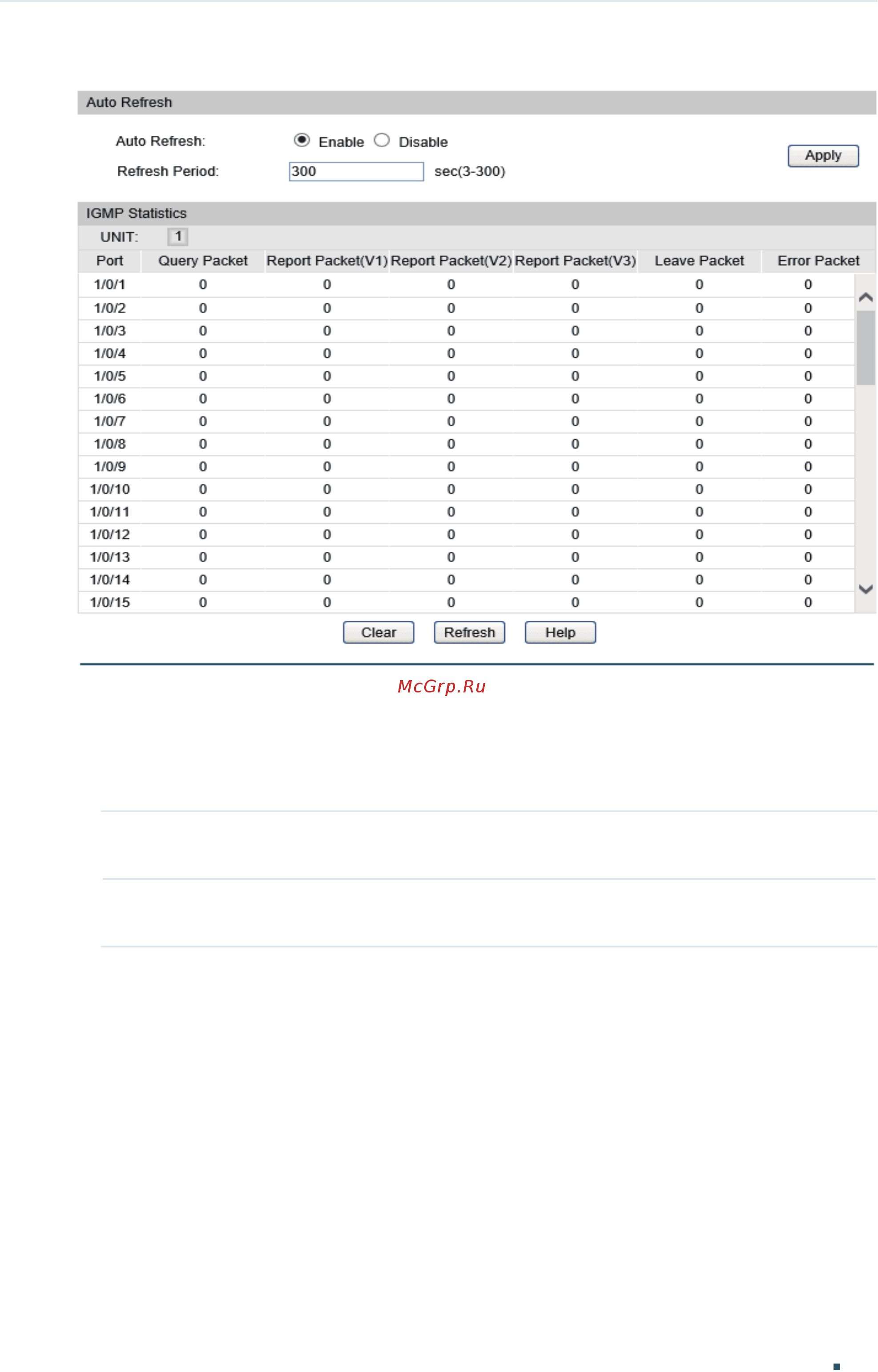

Figure 2-9 View IGMP Statistics on the Port
Configuring Auto Refresh
Follow these steps to configure auto refresh.
1) Enable or disable Auto Refresh.
Auto Refresh If Auto Refresh is enabled, statistics of IGMP packets on this page will refresh
automatically.
Refresh Period After Auto Refresh is enabled, enter the interval between each refresh. The valid
values are from 3 to 300 seconds.
2) Click Apply.
Viewing IGMP Statistics
The IGMP Statistics table displays all kinds of IGMP statistics of all the ports.
2.1.9 Enabling IGMP Accounting and Authentication
Choose the menu Multicast > IGMP Snooping > IGMP Authentication to load the following
page.
