Managing Physical Interfaces Configuration Examples
Configuration Guide
123
7.2.2 Configuration Scheme
You can configure port isolation to implement the requirement. Set 1/0/4 as the only
forwarding port for port 1/0/1, thus forbidding Host A to forward packets to the other
hosts.
Demonstrated with T1700G-28TQ, the following sections provide configuration procedure
in two ways: using the GUI and using the CLI.
7.2.3 Using the GUI
1) Choose the menu Switching > Port > Port Isolation to load the following page. It
displays the port isolation list.

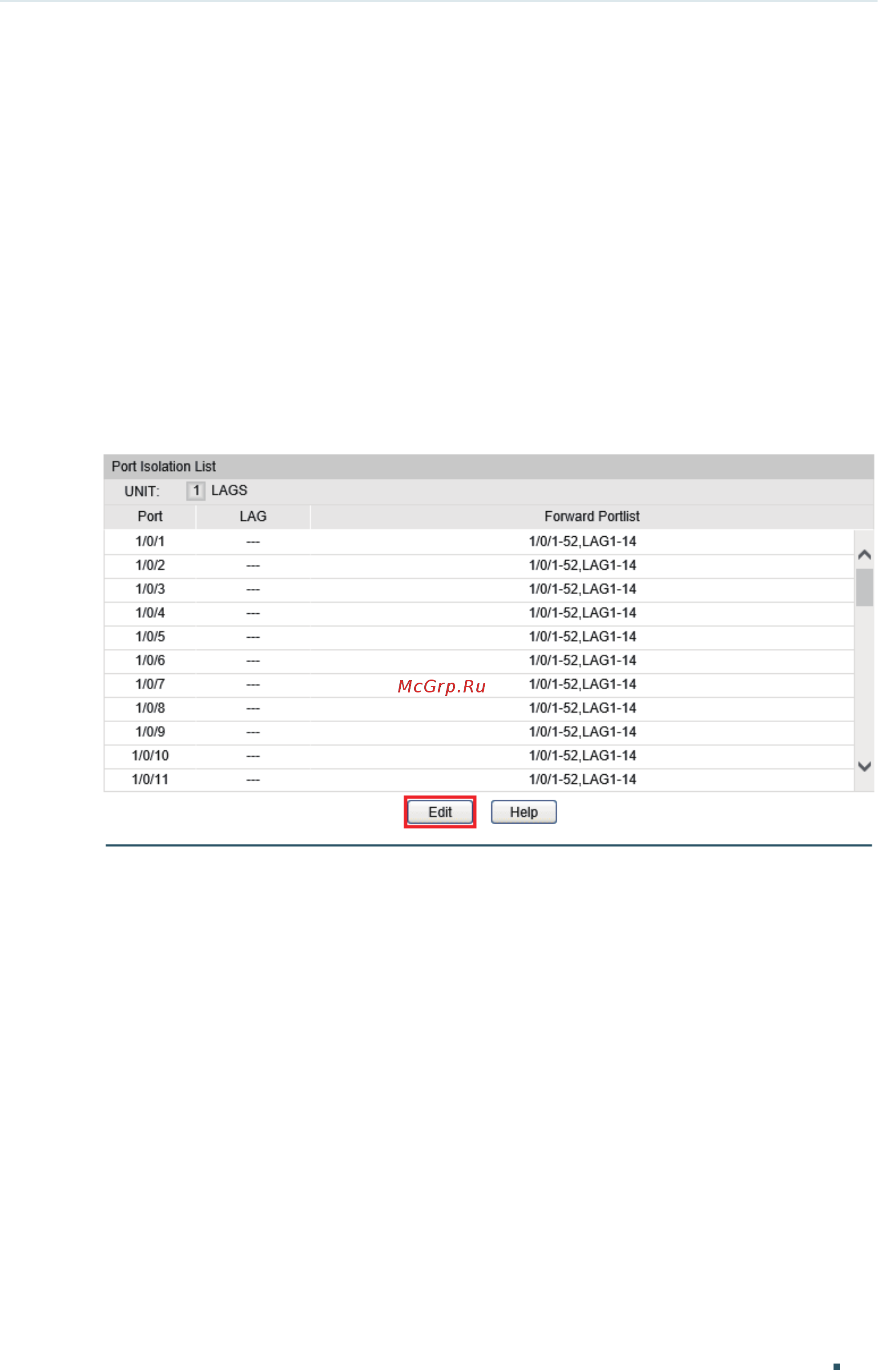

Figure 7-6 Port Isolation List
2) Click Edit on the above page to load the following page. Select port 1/0/1 as the
isolated port, and select port 1/0/4 as the forwarding port. Click Apply.
