Configuring Spanning Tree STP Security Configurations
Configuration Guide
263
4
STP Security Configurations
With STP security, you can:
Configure the Loop Protect function.
Configure the Root Protect function.
Configure the TC Protect function.
Configure the BPDU Protect function.
Configure the BPDU Filter function.
4.1 Using the GUI
4.1.1 Configuring the STP Security
Choose the menu Spanning Tree > STP Security > Port Protect to load the following
page.

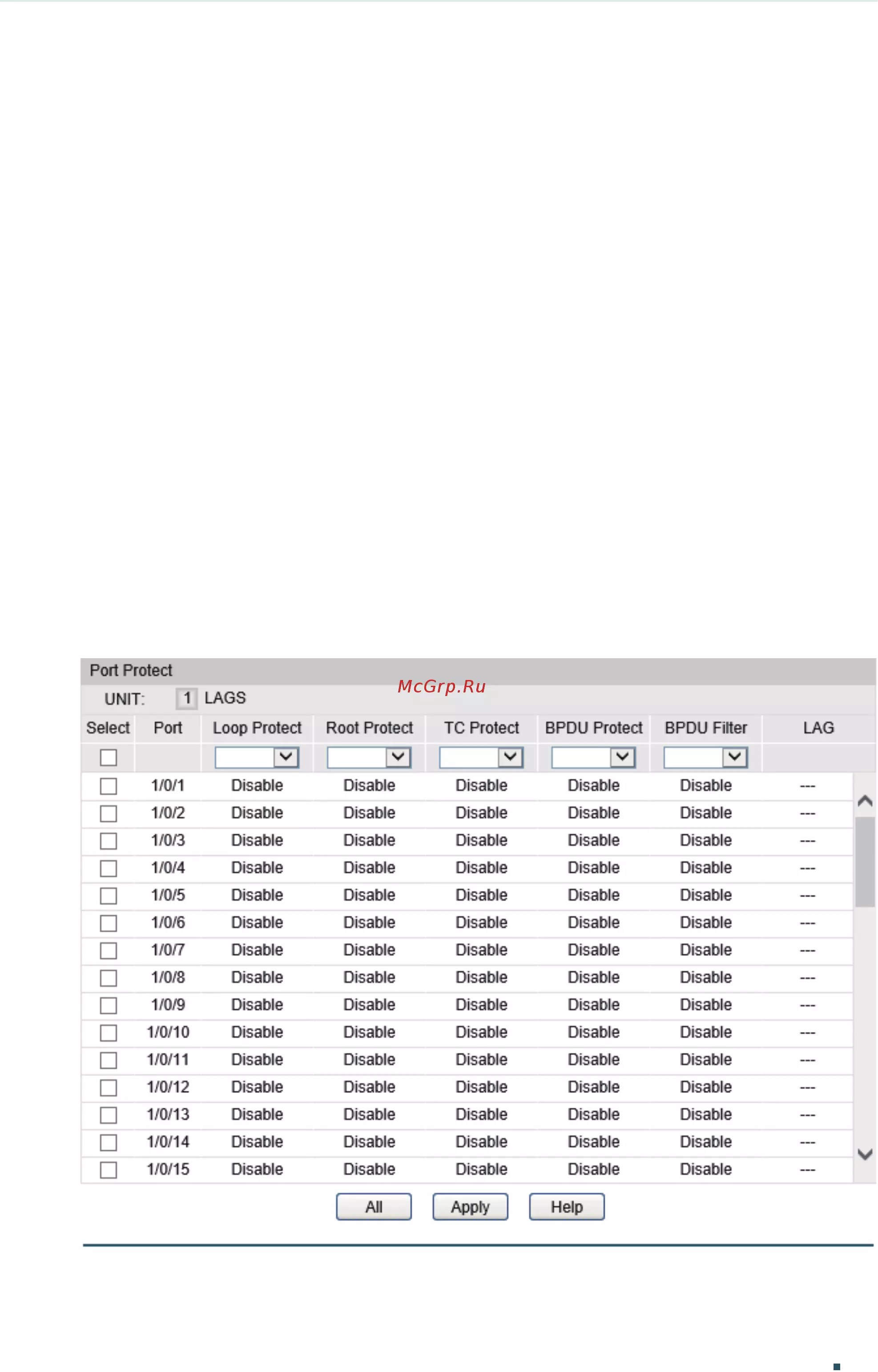

Figure 4-1 Configuring the Port Protect
