Configuring ACL ACL Configuration
Configuration Guide
515

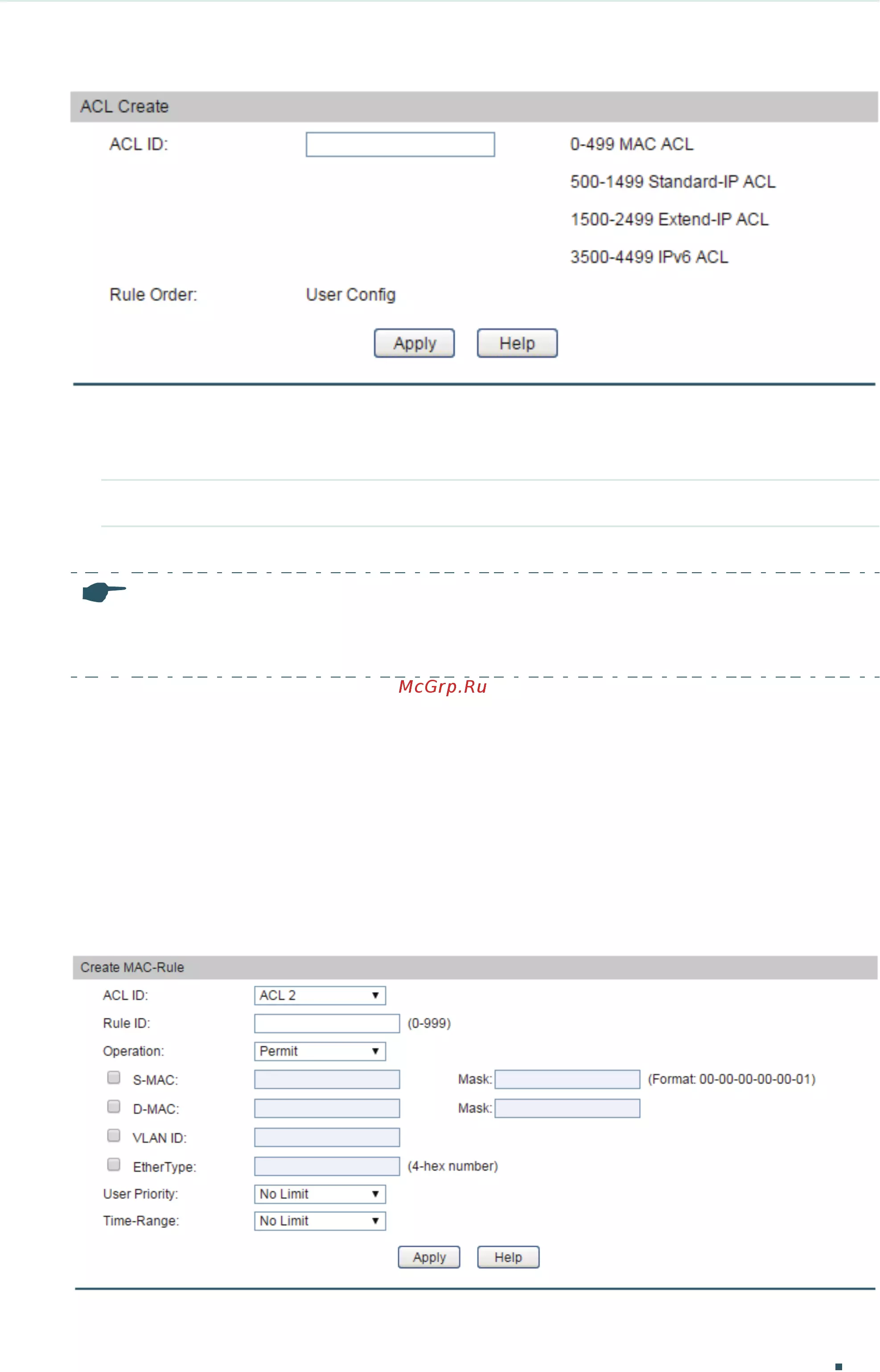

Follow these steps to create the MAC ACL:
1) Select an MAC ACL ID from the drop-down list, enter a Rule ID, then specify the operation for the
matched packets.
ACL ID Select an MAC ACL from the drop-down list.
Rule ID Enter an ID number to identify the rule.
It should not be the same as any existing MAC ACL Rule IDs.
Operation Select an action to be taken when a packet matches the rule.
Permit: To forward the matched packets.
Deny: To discard the matched packets.
2) Define the rule’s packet-matching criteria.
S-MAC/Mask Enter the source MAC address with a mask. A value of 1 in the mask indicates
that the corresponding bit in the address will be matched.
D-MAC/Mask Enter the destination IP address with a mask. A value of 1 in the mask
indicates that the corresponding bit in the address will be matched.
VLAN ID Enter the ID number of the VLAN to which the ACL will apply.
EtherType Specify the EtherType to be matched using 4 hexadecimal numbers.
User Priority Specify the User Priority to be matched..
3) (Optional)Select a time-range from the drop-down list.
Time-Range Select a time-range during which the rule will take effect. The default value is
No Limit, which means the rule is always in effect..
4) Click Apply to make the settings effective.
Configuring the Standard-IP ACL Rule

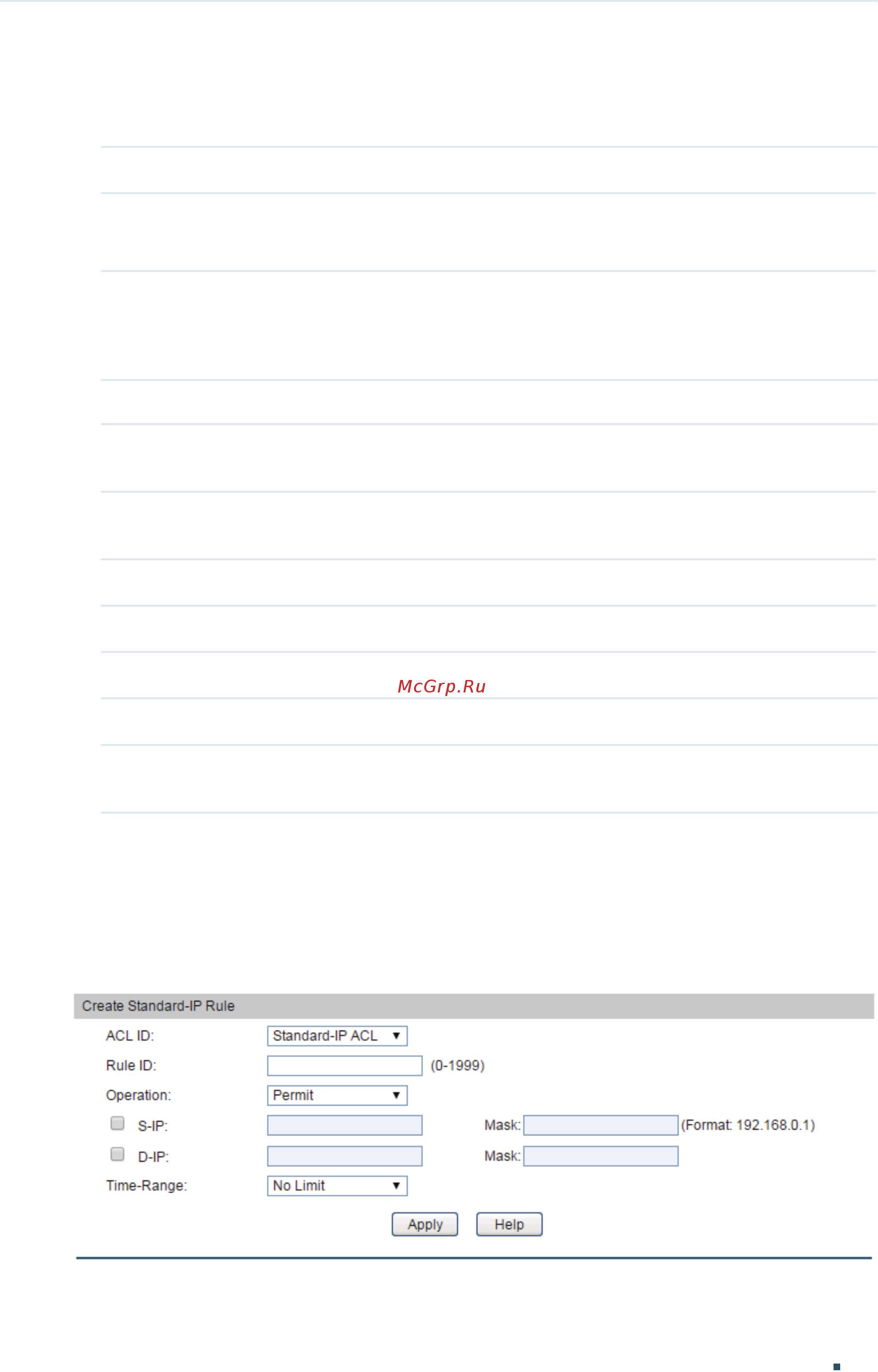

Choose the menu ACL > ACL Config > Standard-IP ACL to load the following page.

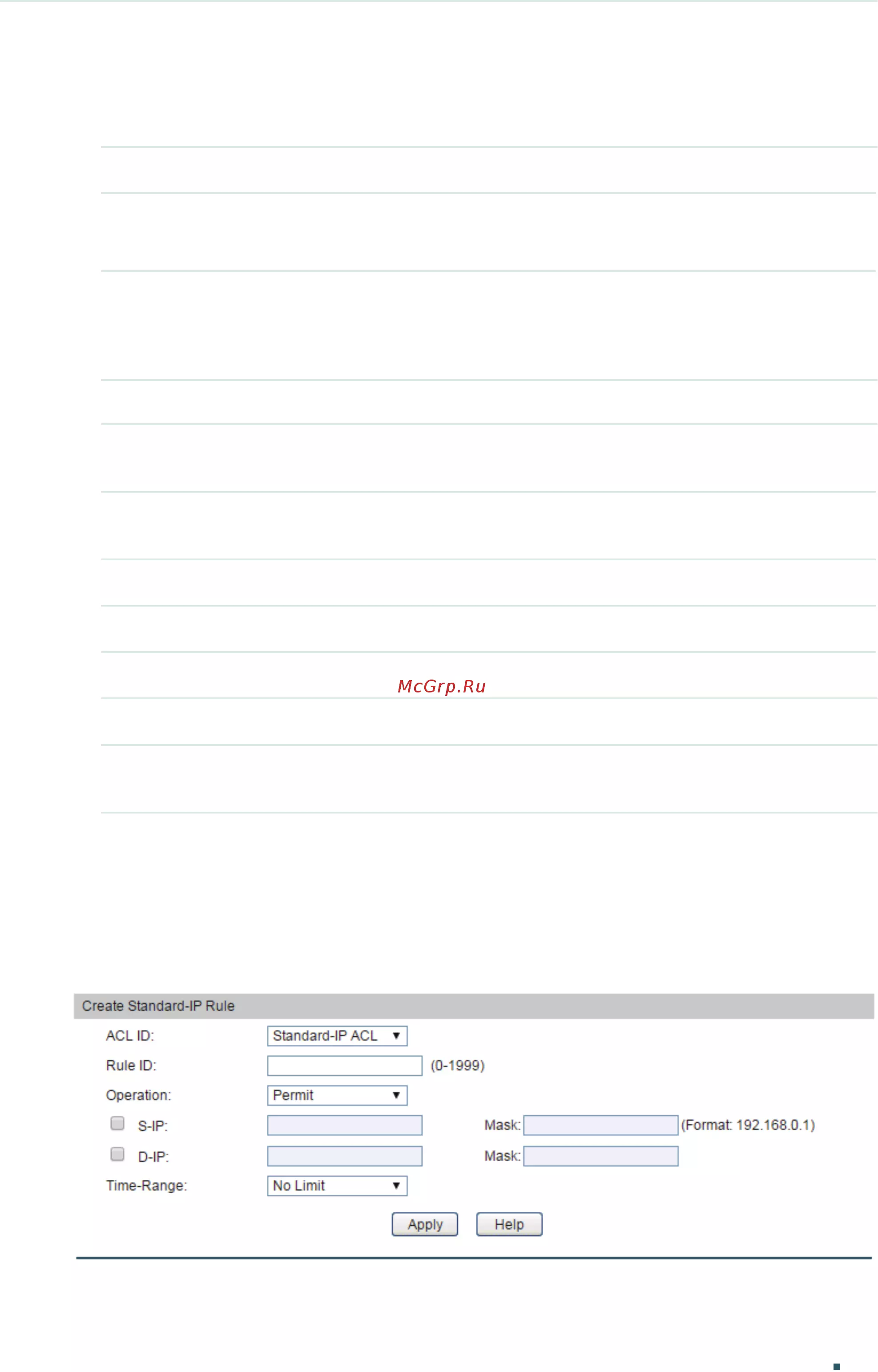

Figure 2-5 Creating the Standard-IP ACL Rule
Follow these steps to create the Standard-IP ACL:
