Configuration Guide 542
Configuring ACL Configuration Example for ACL

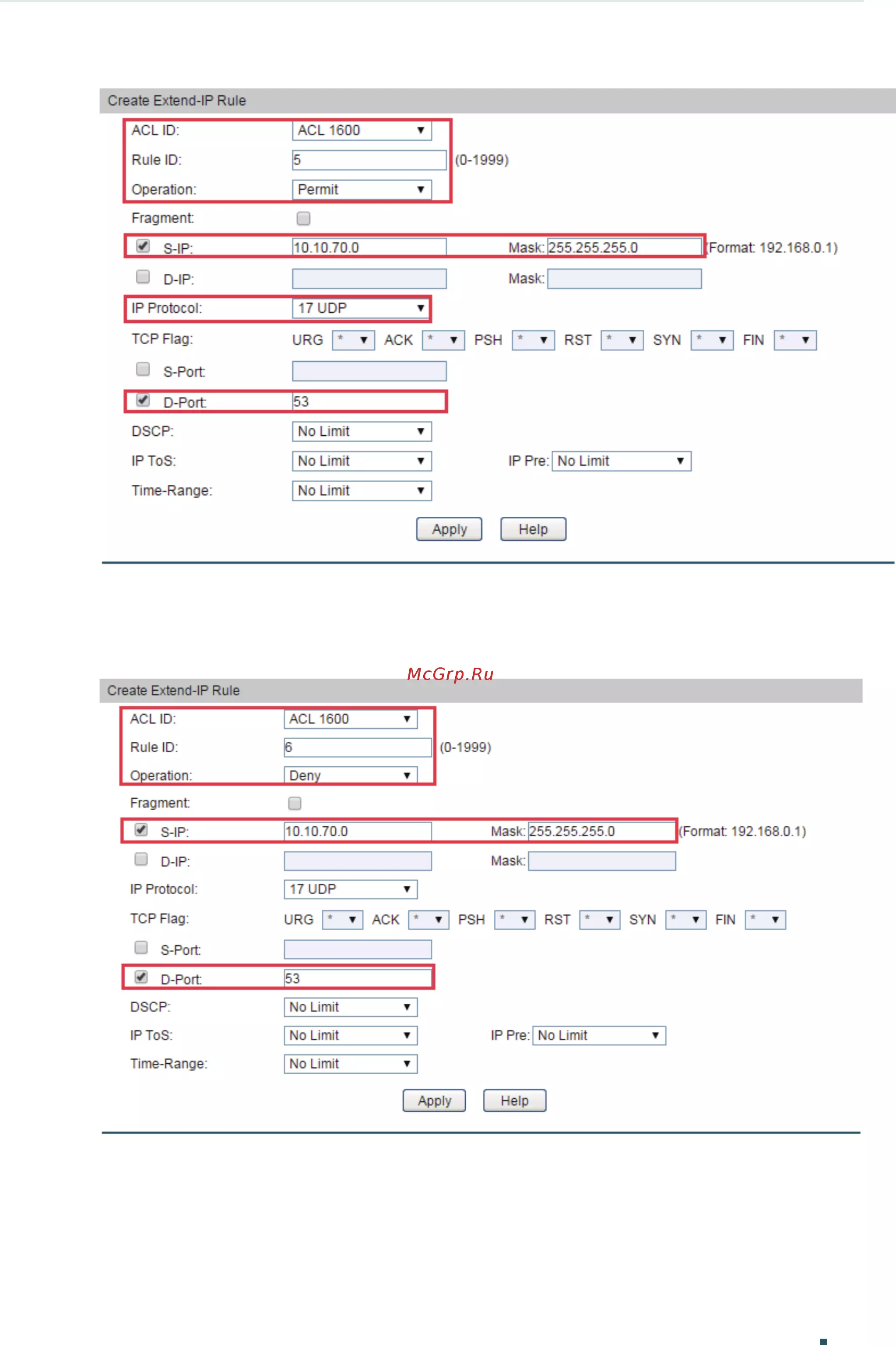

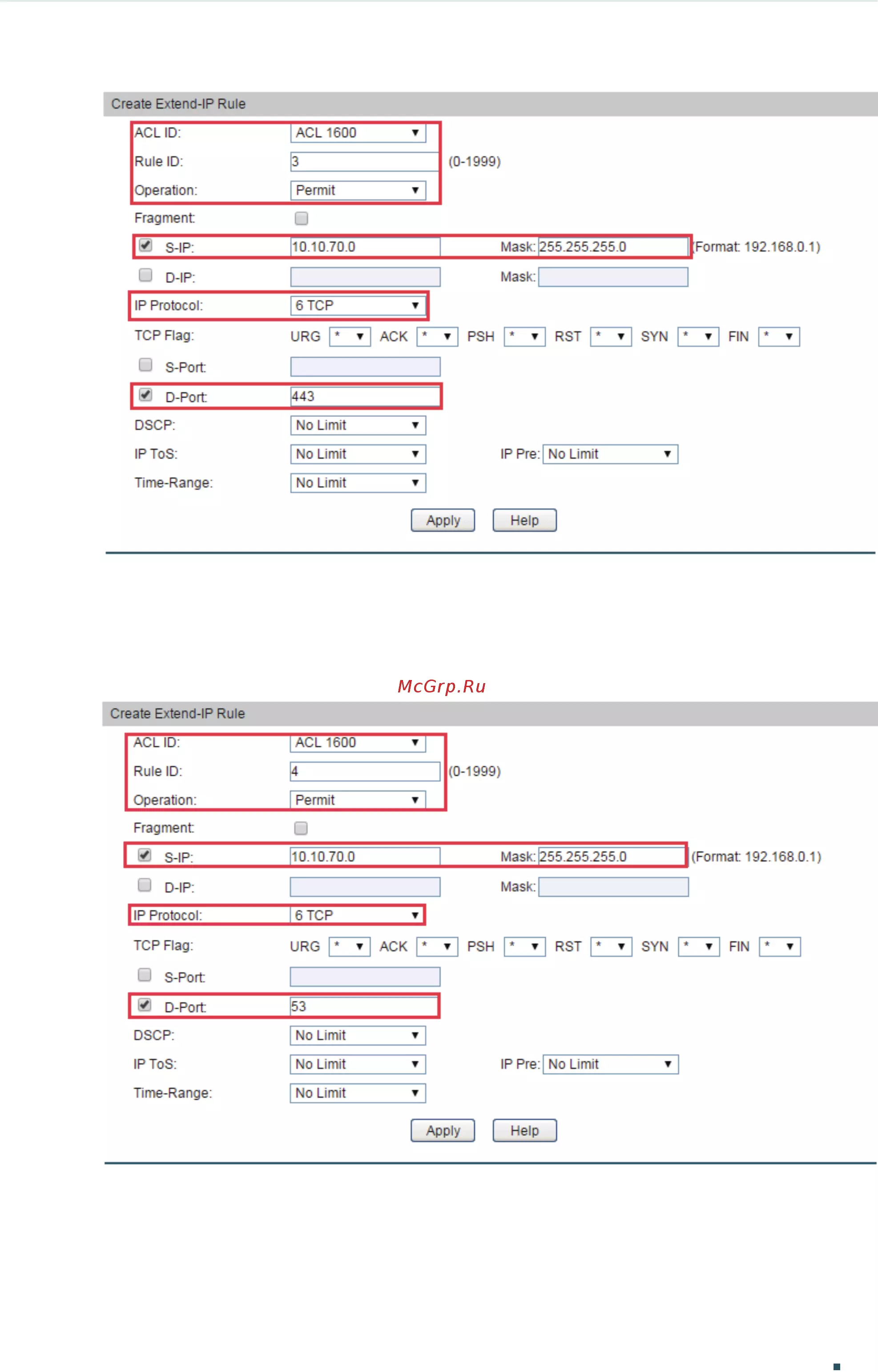

Figure 3-7 Configuring Rule 5
5) Choose the menu ACL > Policy Config > Policy Create to load the following page.
Configure Rule 6 to deny packets with source IP 10.10.70.0.
Figure 3-8 Configuring Rule 6
6) Choose the menuACL > Policy Config > Policy Createto load the the following page.

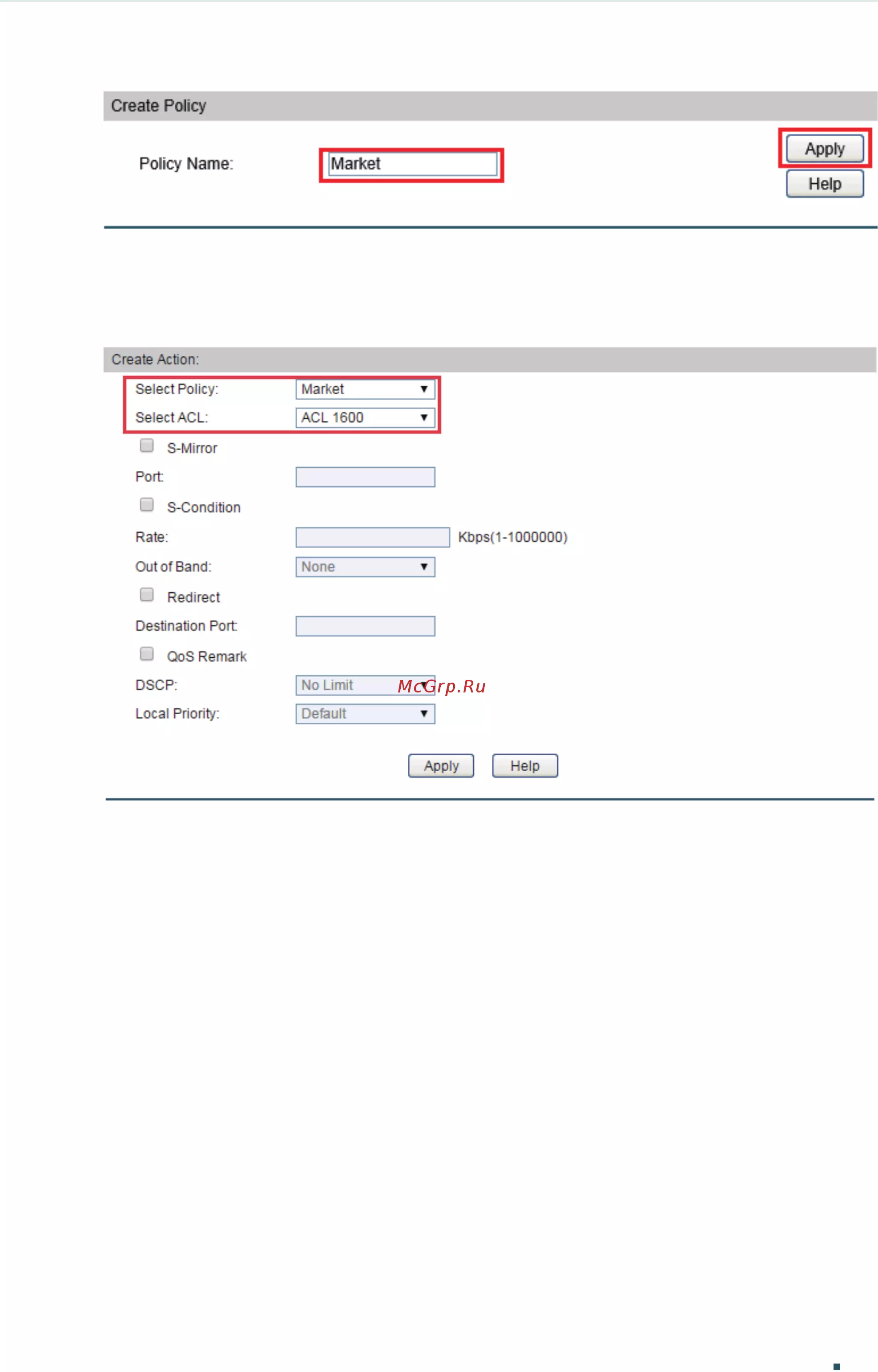

Then create Policy Market.
