Configuration Guide 372
Configuring Layer 2 Multicast Configuration Examples

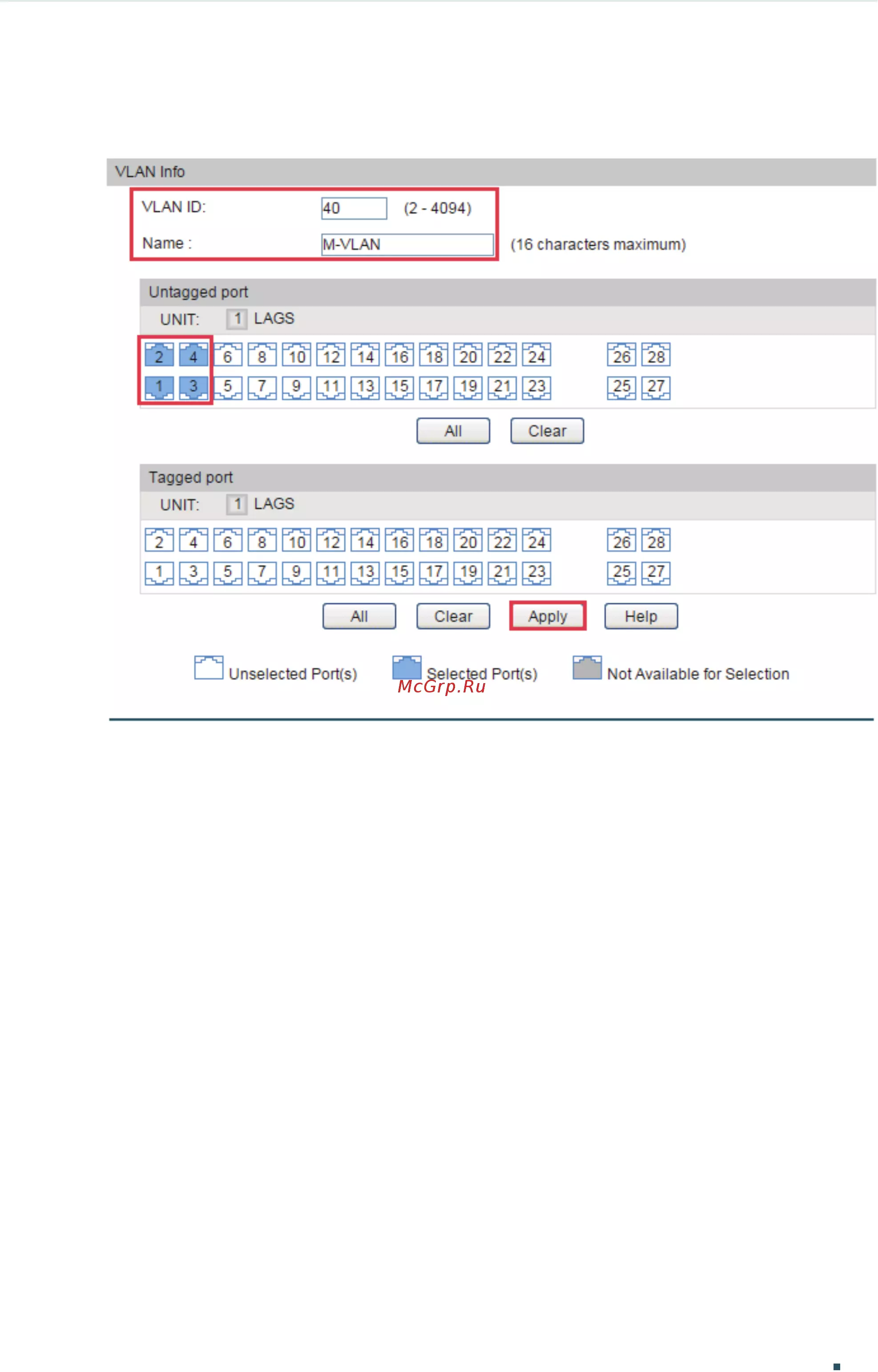

Figure 5-11 Create VLAN and Add Member Ports

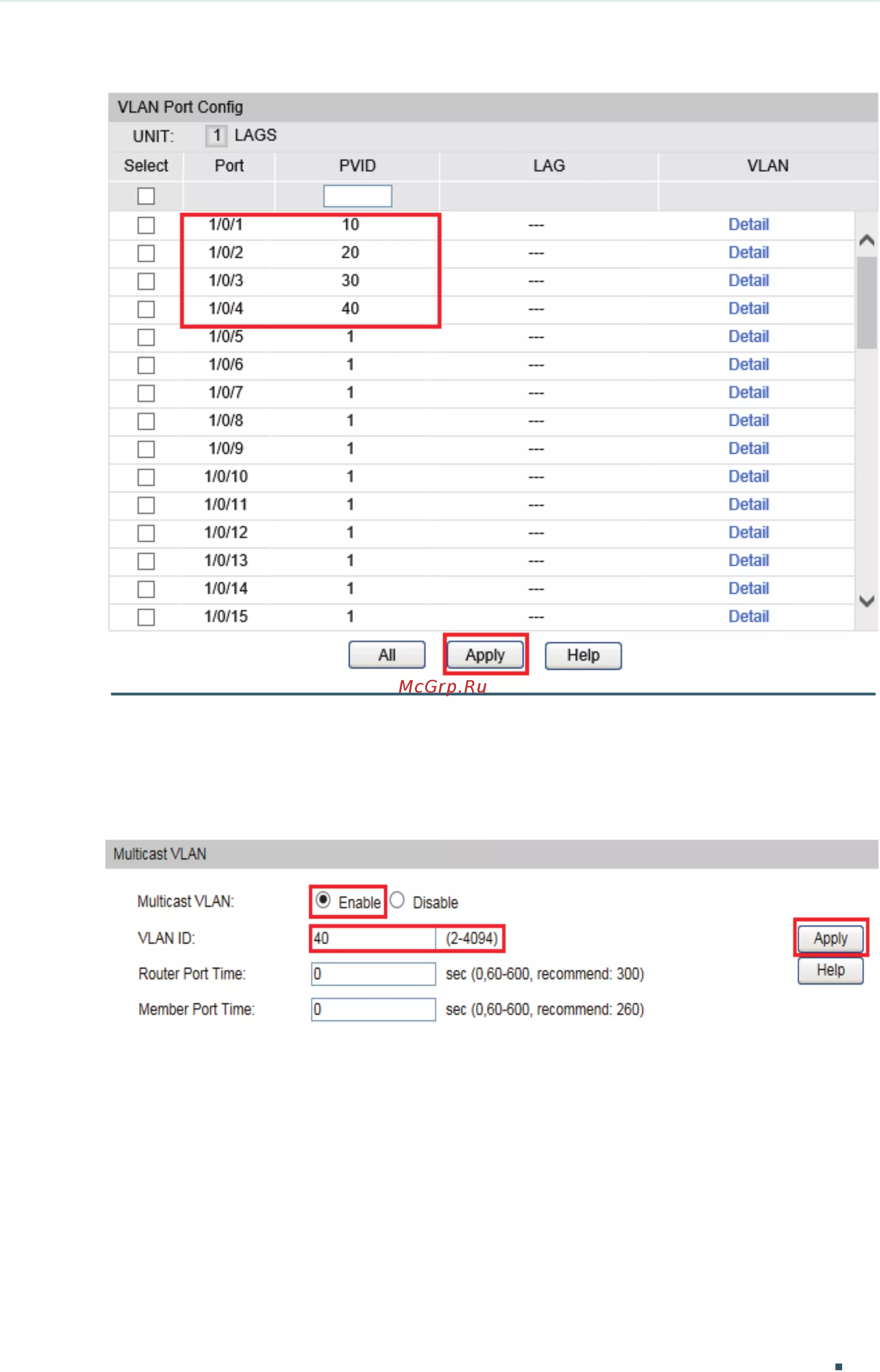

5) Choose the menu Multicast > IGMP Snooping > Multicast VLAN to load the following
page. Enable Multicast VLAN and configure VLAN 40 as the multicast VLAN. Keep
Router Port Time and Member Port Time as 0.
Figure 5-12 Create Multicast VLAN
6) Click Save Config to save the settings.
5.2.5 Using the CLI
1) Enable IGMP Snooping Globally.
Switch#configure
Switch(config)#ip igmp snooping
2) Enable IGMP Snooping on port 1/0/1-4.
