Configuring SNMP & RMON RMON Configurations
Configuration Guide
721
5
RMON Configurations
With RMON configurations, you can:
Configuring the statistics group.
Configuring the history group.
Configuring the event group.
Configuring the alarm group.
Configuration Guidelines
To ensure that the NMS receives notifications normally, please complete configurations of
SNMP and SNMP Notification before RMON configurations.
5.1 Using the GUI
5.1.1 Configuring Statistics
Choose the menu SNMP > RMON > Statistics to load the following page.

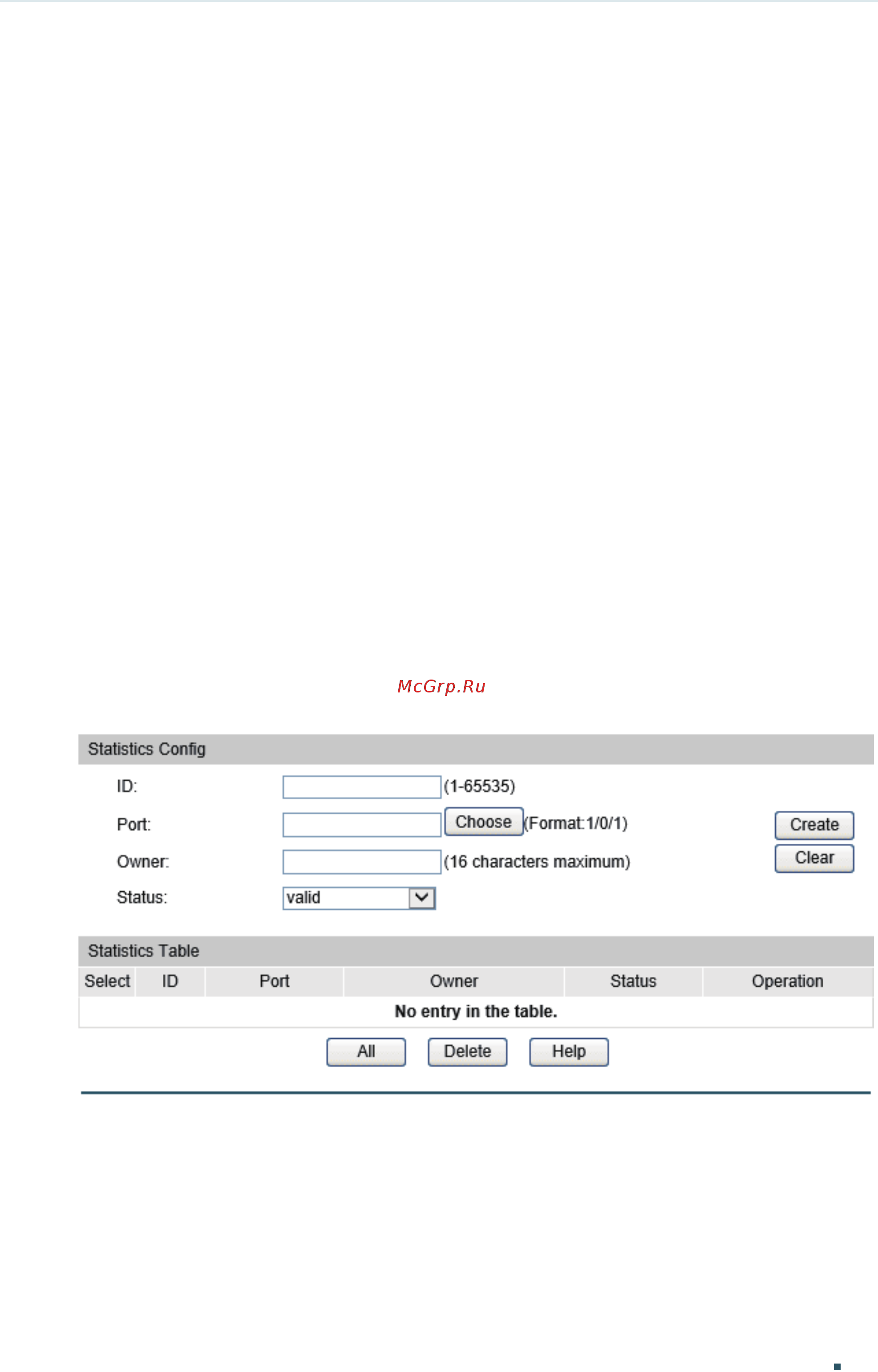

Figure 5-1 Statistics Config
