Configuring Layer 2 Multicast Configuration Examples
Configuration Guide
383

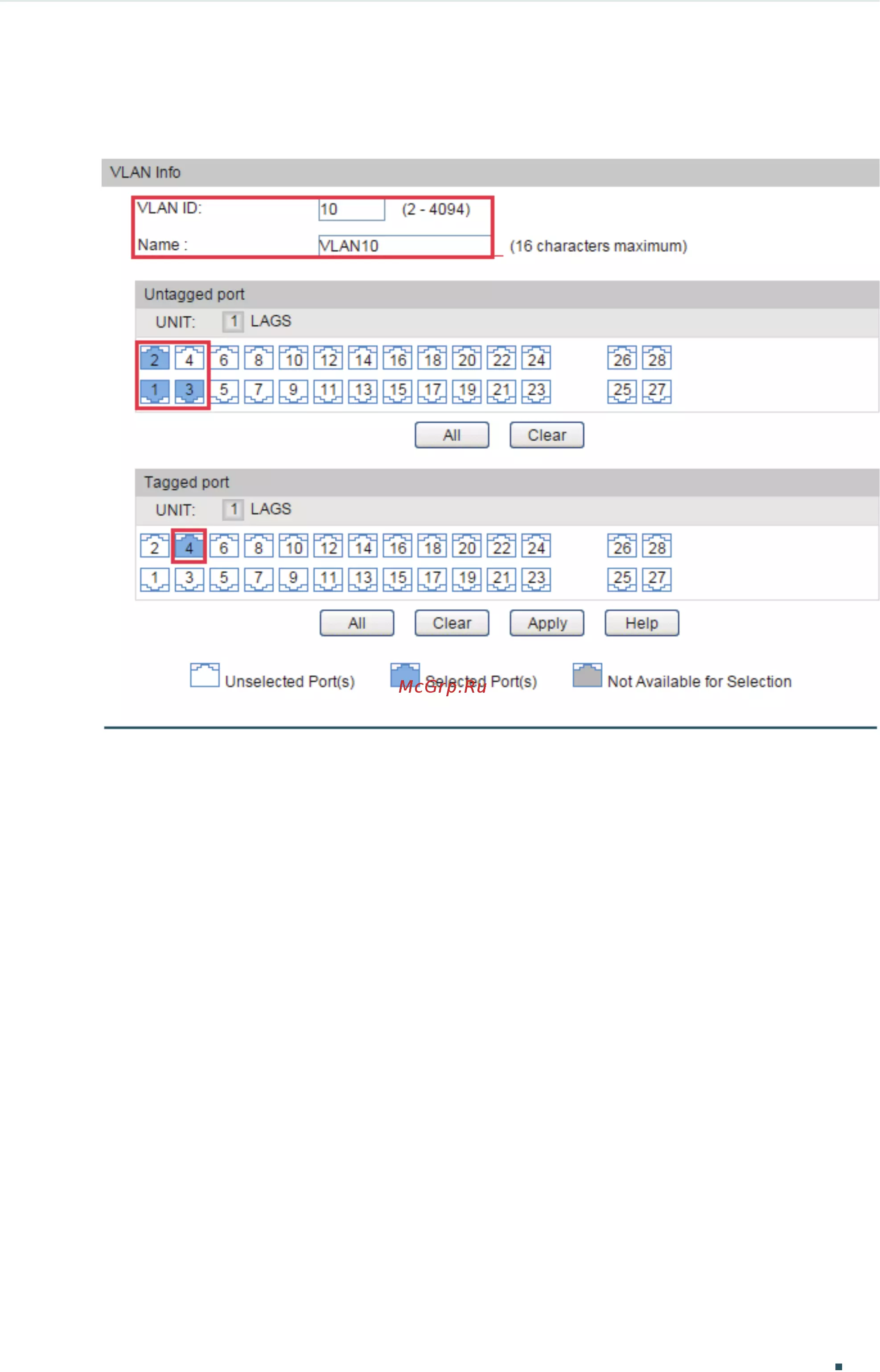

Figure 5-21 Create VLAN and Add Member Ports

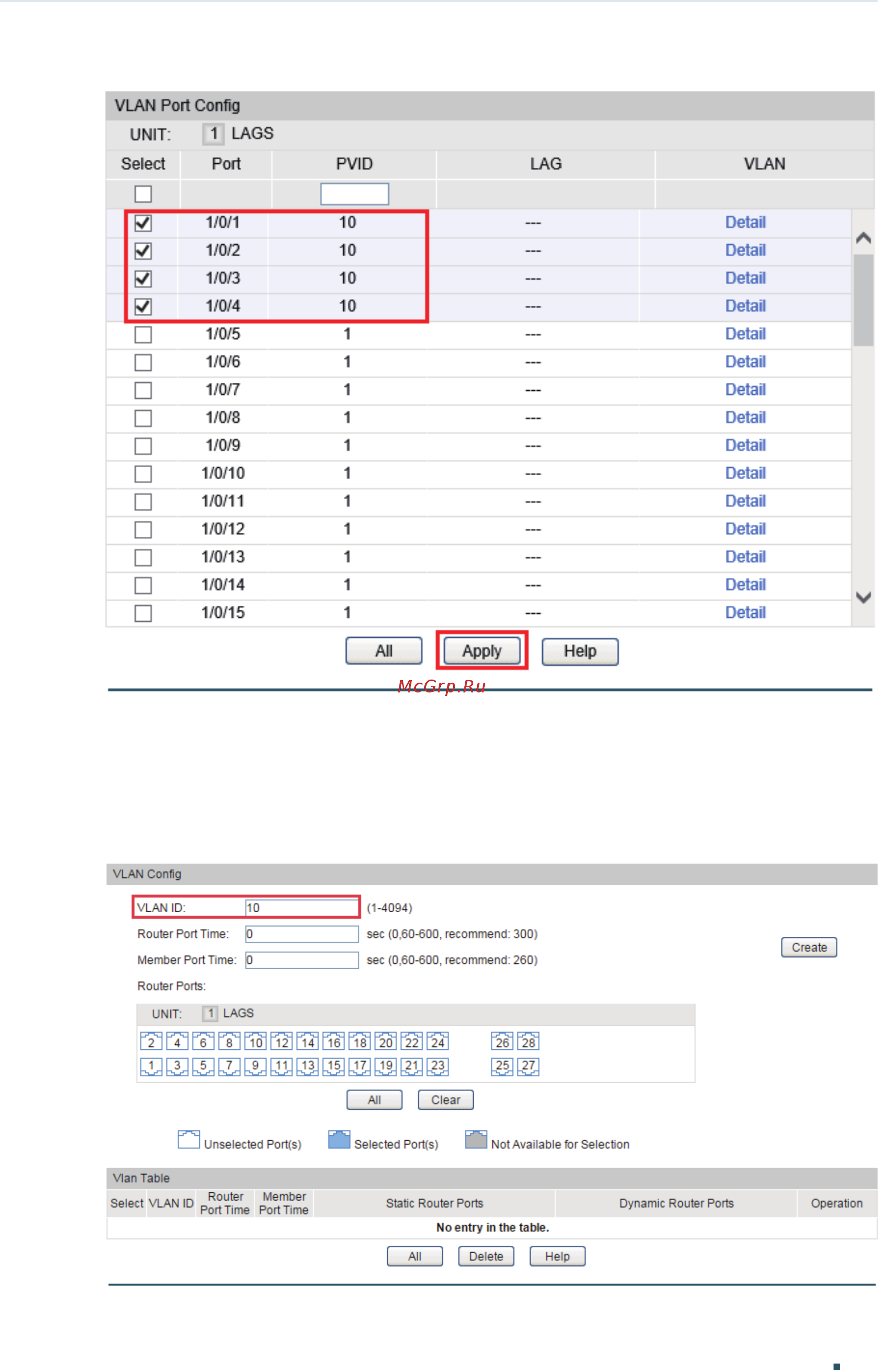

5) Choose the menu Multicast > IGMP Snooping > VLAN Config to load the following
page. Enable IGMP Snooping in VLAN 10. Keep 0 as the Router Port Time and Member
Port Time, which means the global settings will be used.
Figure 5-22 Enable IGMP Snooping in the VLAN
