Configuration Guide 382
Configuring Layer 2 Multicast Configuration Examples
3) Choose the menu VLAN > 802.1Q VLAN > VLAN Config to load the following page.
Create VLAN 10 and add Untagged port 1/0/1-3 and Tagged port 1/0/4 to VLAN 10.

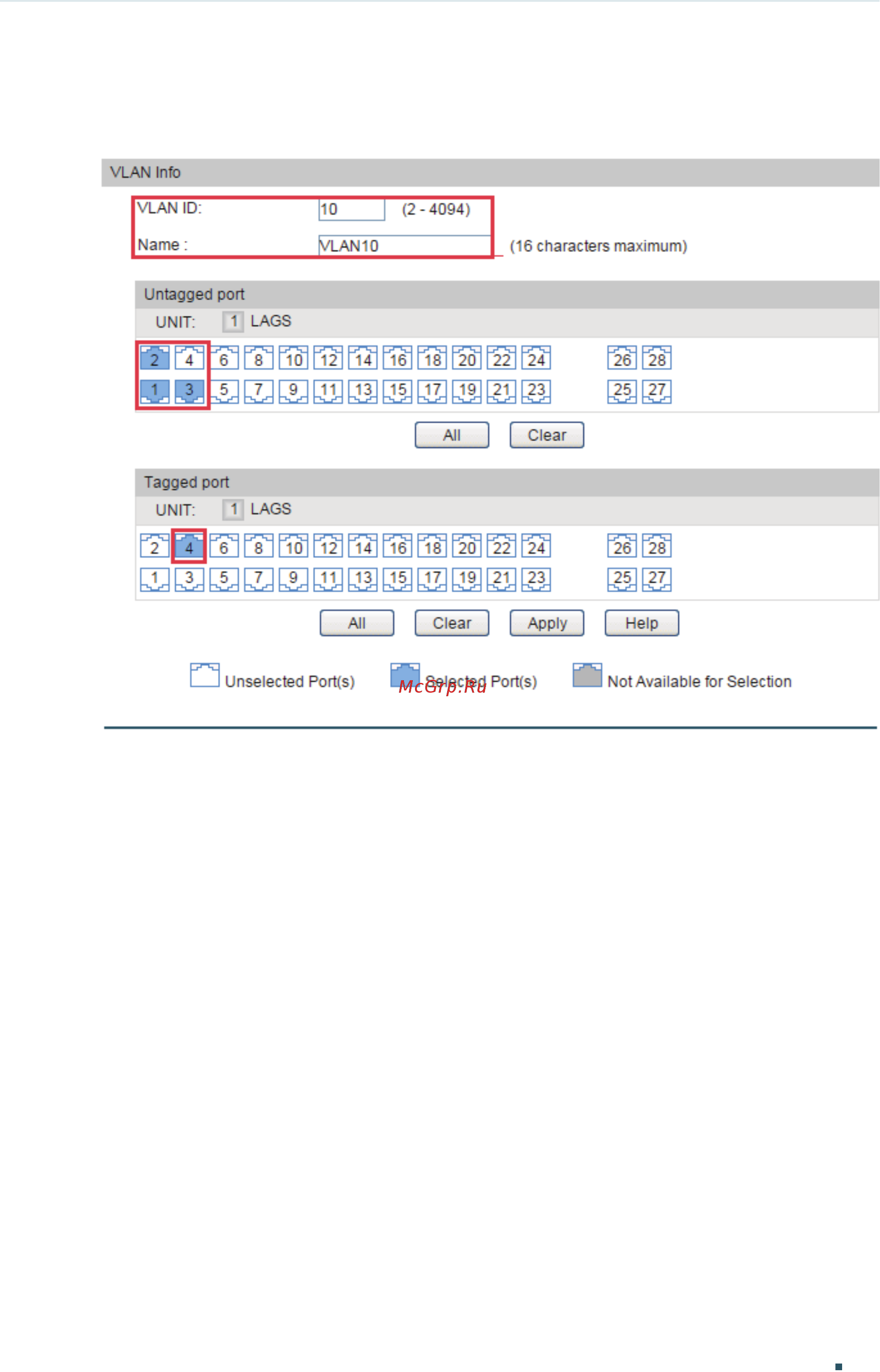

Figure 5-20 Configure Link Type
4) Choose the menu VLAN > 802.1Q VLAN > Port Config to load the following page.
Configure the PVID of port 1/0/1-4 as 10.
