Configuration Guide 518
Configuring ACL ACL Configuration
Time-Range Select a time-range during which the rule will take effect. The default value is
No Limit, which means the rule is always in effect..
Configuring the IPv6 ACL Rule
Choose the menu ACL > ACL Config > IPv6 ACL to load the following page.

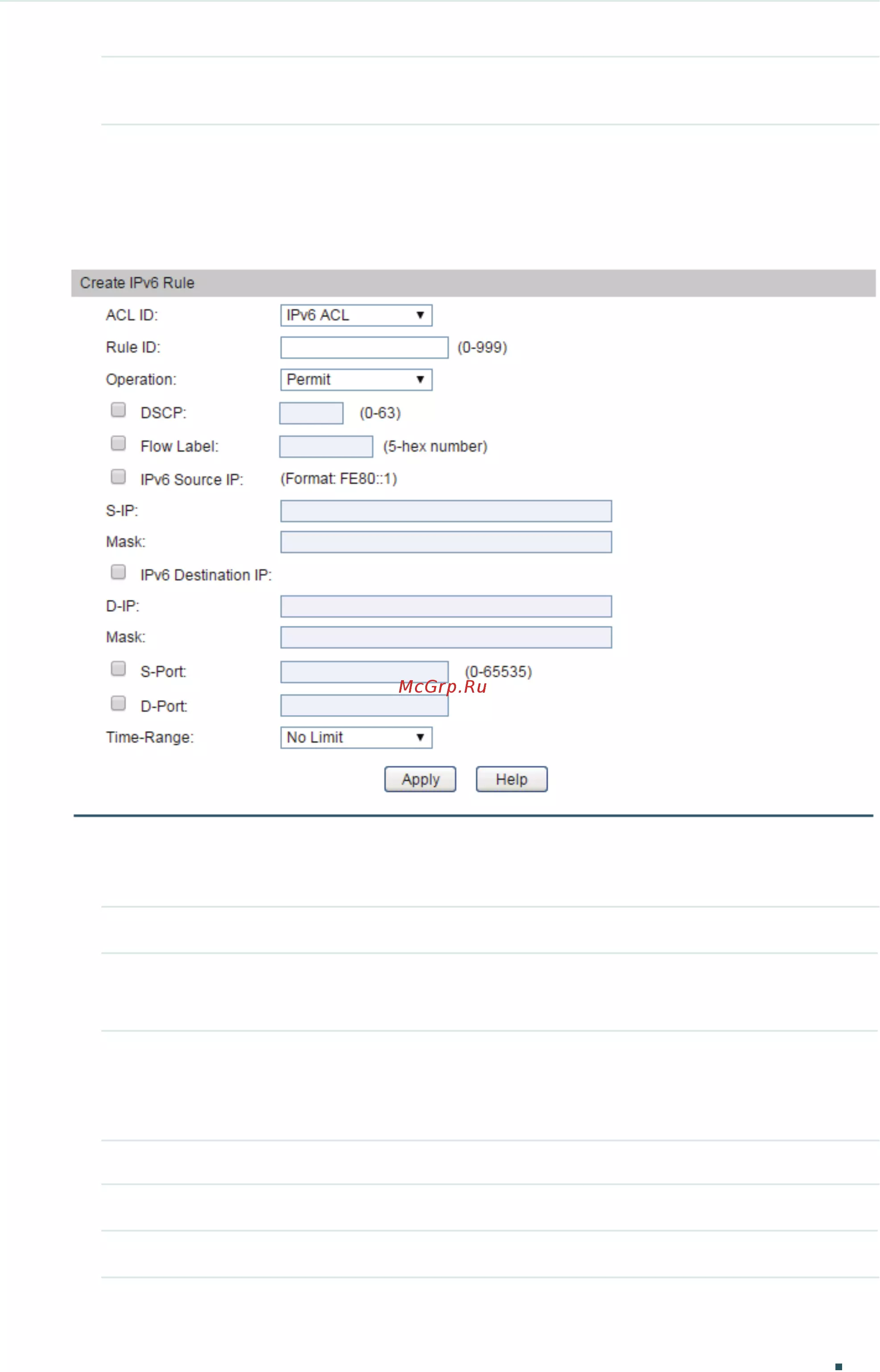

Figure 2-7 Creating the IPv6 ACL Rule
Follow these steps to create the IPv6 ACL:
1) Select an IPv6 ACL ID from the drop-down list, enter a Rule ID, then specify the operation for the rule.
ACL ID Select an IPv6 ACL from the drop-down list.
Rule ID Enter an ID number to identify the rule.
It should not be the same as any existing IPv6 ACL Rule IDs.
Operation Select an action to be taken when a packet matches the rule.
Permit: To forward the matched packets.
Deny: To discard the matched packets.
2) Define the rule’s packet-matching criteria.
DSCP Specify a DSCP value to be matched.
Flow Label Specify a Flow Label value to be matched.
