Managing System System Tools Configurations
Configuration Guide
49
Save Before
Reboot
Select to save the switch’s configurations before it reboots.
4.1.7 Reseting the Switch
Choose the menu System > System Tools > System Reset to load the following page.

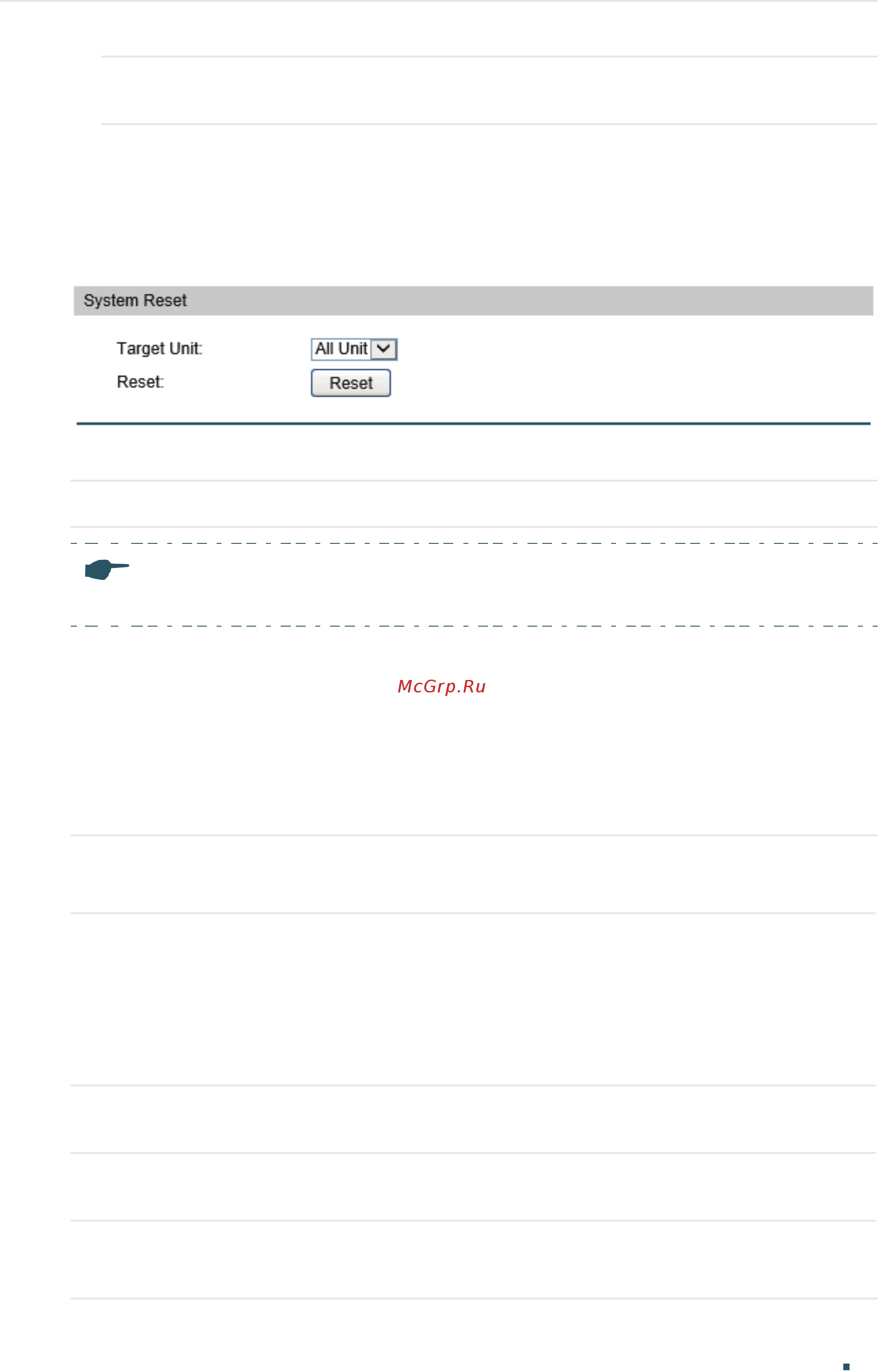

Figure 4-7 Reseting the Switch
In the System Reset section, select the desired unit and click Reset.
Target Unit Select the desired unit to reset. By default, it is ALL Unit.
Note:
After the system is reset, configurations of the switch will be reset to the default.
4.2 Using the CLI
4.2.1 Configuring the Boot File
Follow these steps to configure the boot file:
Step 1 configure
Enter global configuration mode.
Step 2 boot application filename { image1 | image2 } { startup | backup }
Specify the configuration of the boot file. By default, the image1.bin is the startup image and
the image2.bin is the backup image.
image1 | image2: Select the image file to be configured.
startup | backup: Select the property of the image file.
Step 3 show boot
Verify the boot configuration of the system.
Step 4 end
Return to privileged EXEC mode.
Step 5 copy running-config startup-config
Save the settings in the configuration file.
