![Tp-Link T1700G-28TQ V2 [490/772] Network requirements](/views2/1472751/page490/bg1ea.png)
Configuring QoS Configuration Examples
Configuration Guide
465
4
Configuration Examples
4.1 Example for Configuring SP Mode
4.1.1 Network Requirements
Two hosts, Admin and Host A, can access the local network server through the switch.
Configure the switch to ensure the traffic from the Admin can be treated preferentially
when congestion occurs. Only when the traffic from the Admin is completely forwarded will
the traffic from Host A be forwarded.
The figure below shows the network topology.

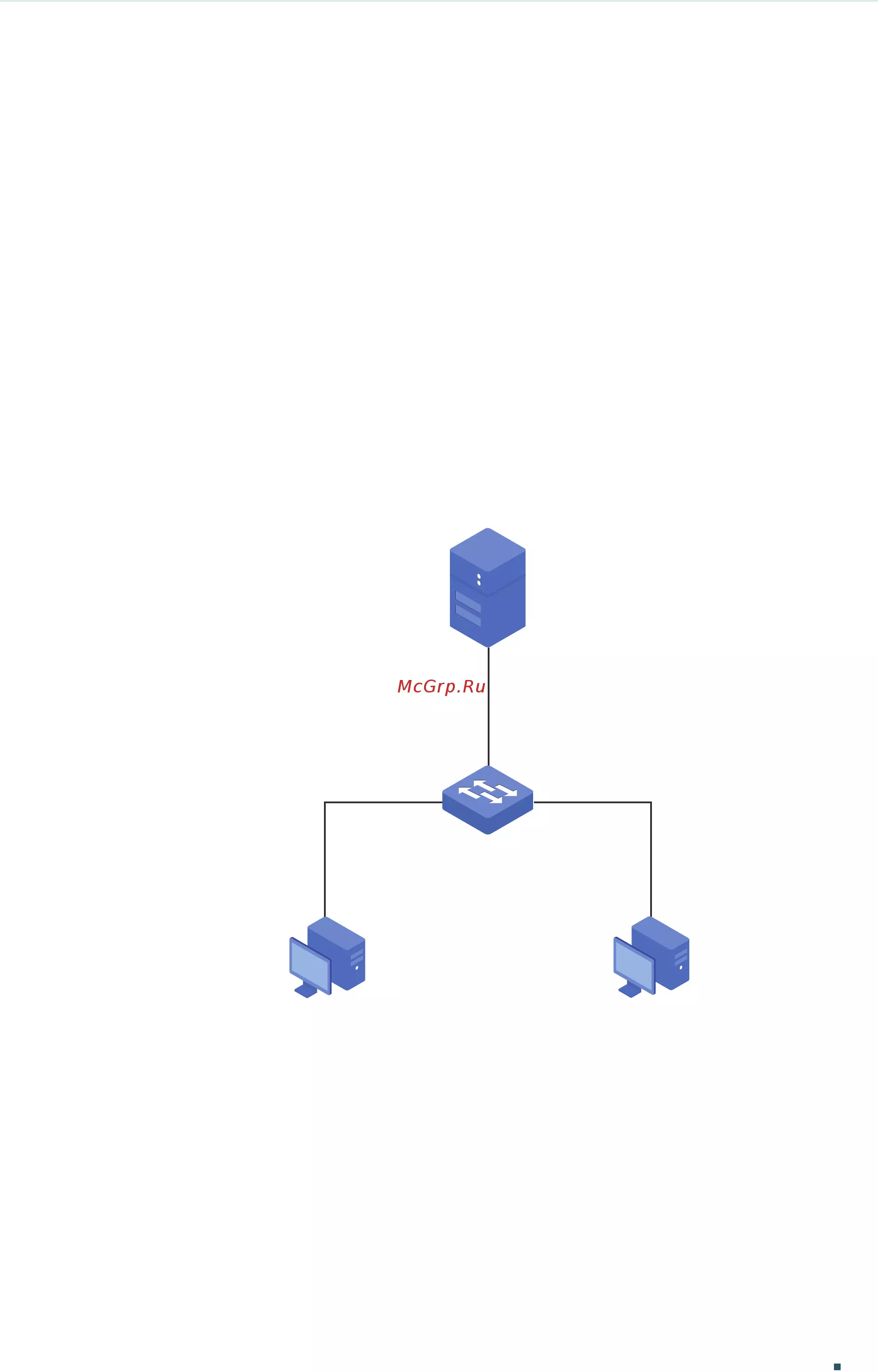

Figure 4-1 QoS Application Topology
Server
Gi1/0/3
Gi1/0/1
Gi1/0/2
Switch
Admin
Host A
4.1.2 Configuration Scheme
The overview of the configuration is as follows:

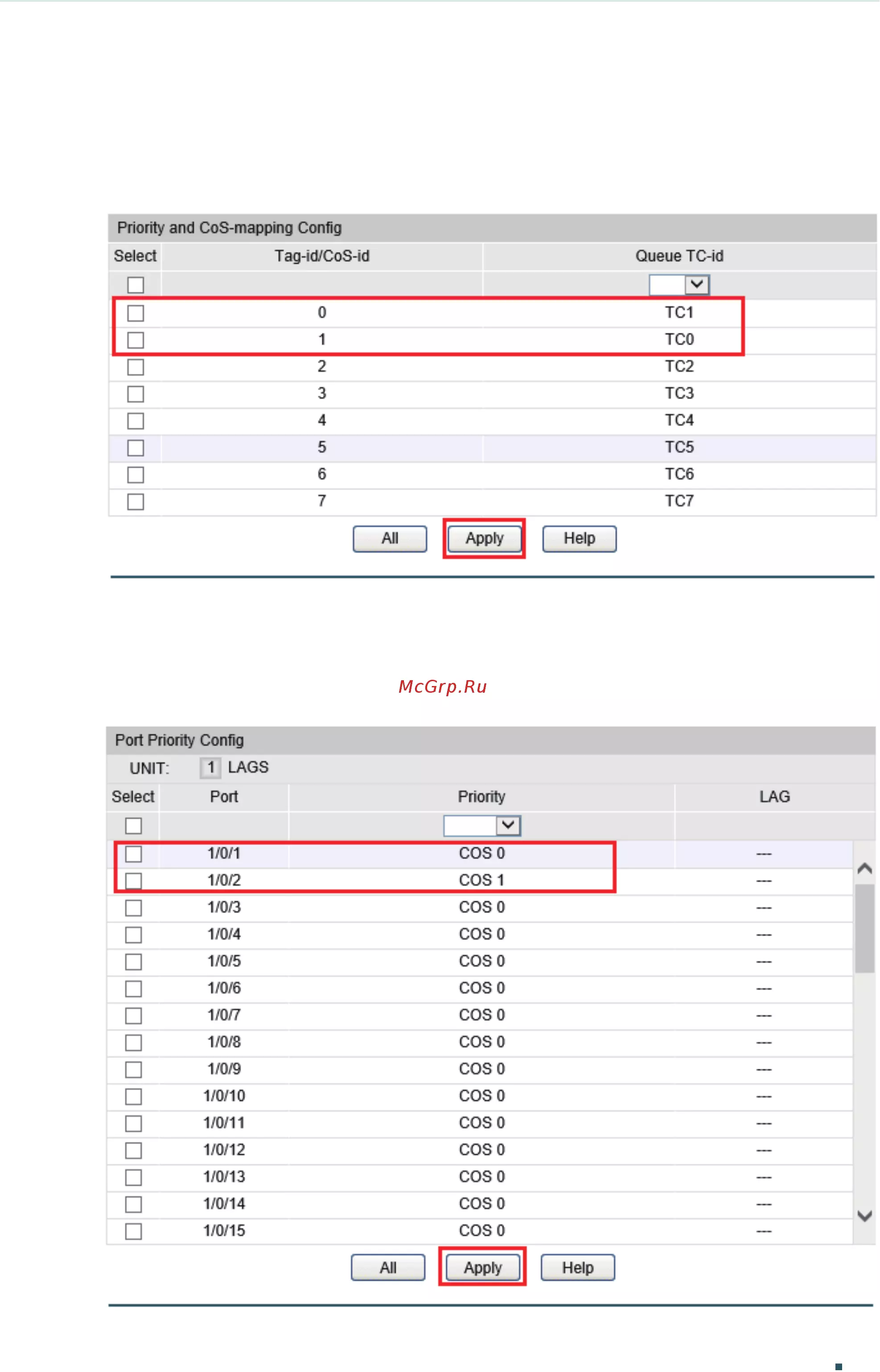

1) Configure the Port Priority for the two ports. Set Port 1/0/1 with higher priority.
2) Select SP schedule mode.
Demonstrated with T1700G-28TQ this chapter provides configuration procedures in two
ways: using the GUI and using the CLI.
