Managing System System Info Configurations
Configuration Guide
27

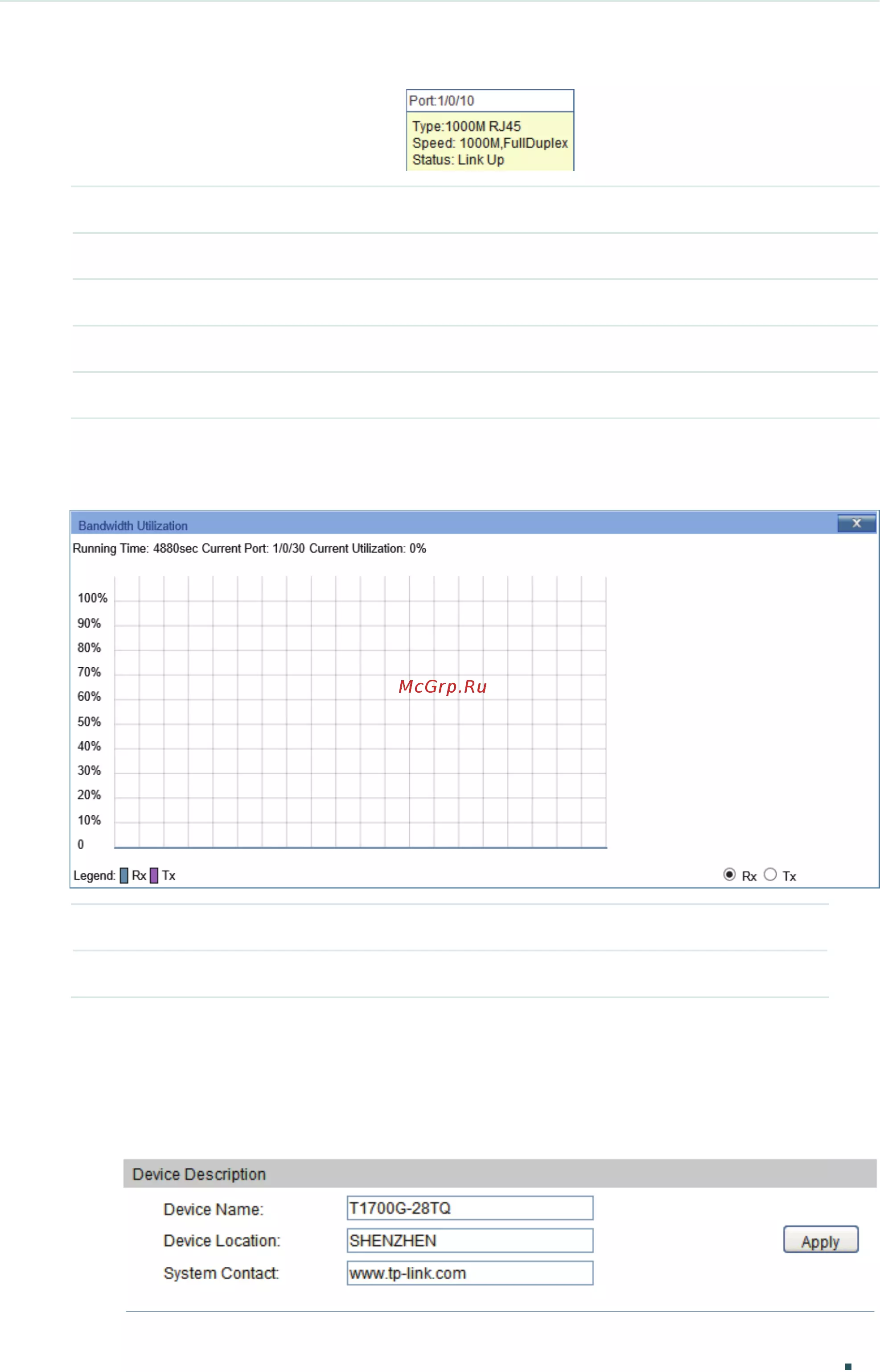

1) In the Device Description section, specify the following information.
Device Name Enter the name of the switch.
Device Location Enter the location of the switch.
System Contact Enter the contact information.
2) Click Apply.

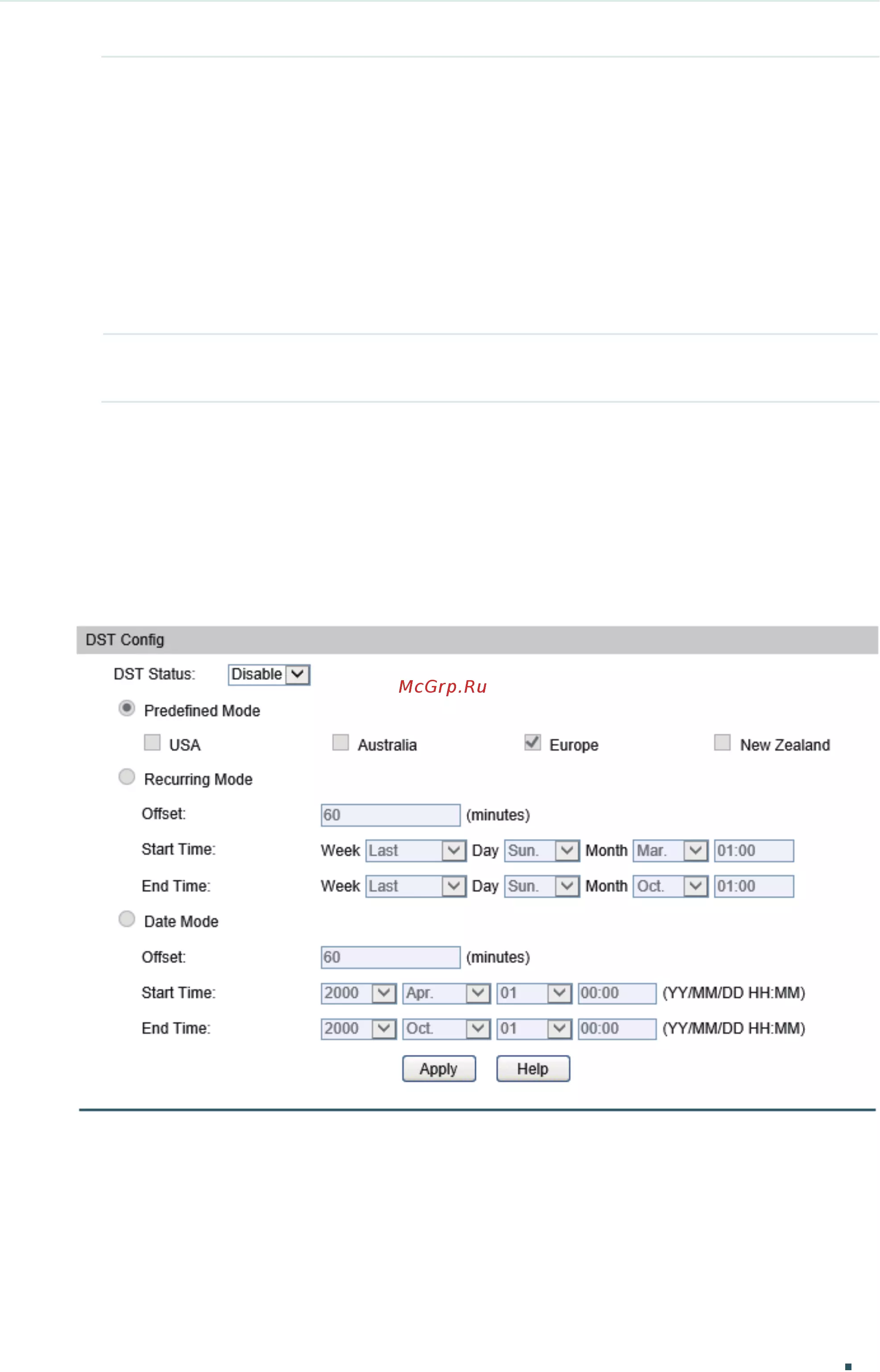

2.1.3 Setting the System Time
Choose the menu System > System Info > System Time to load the following page.

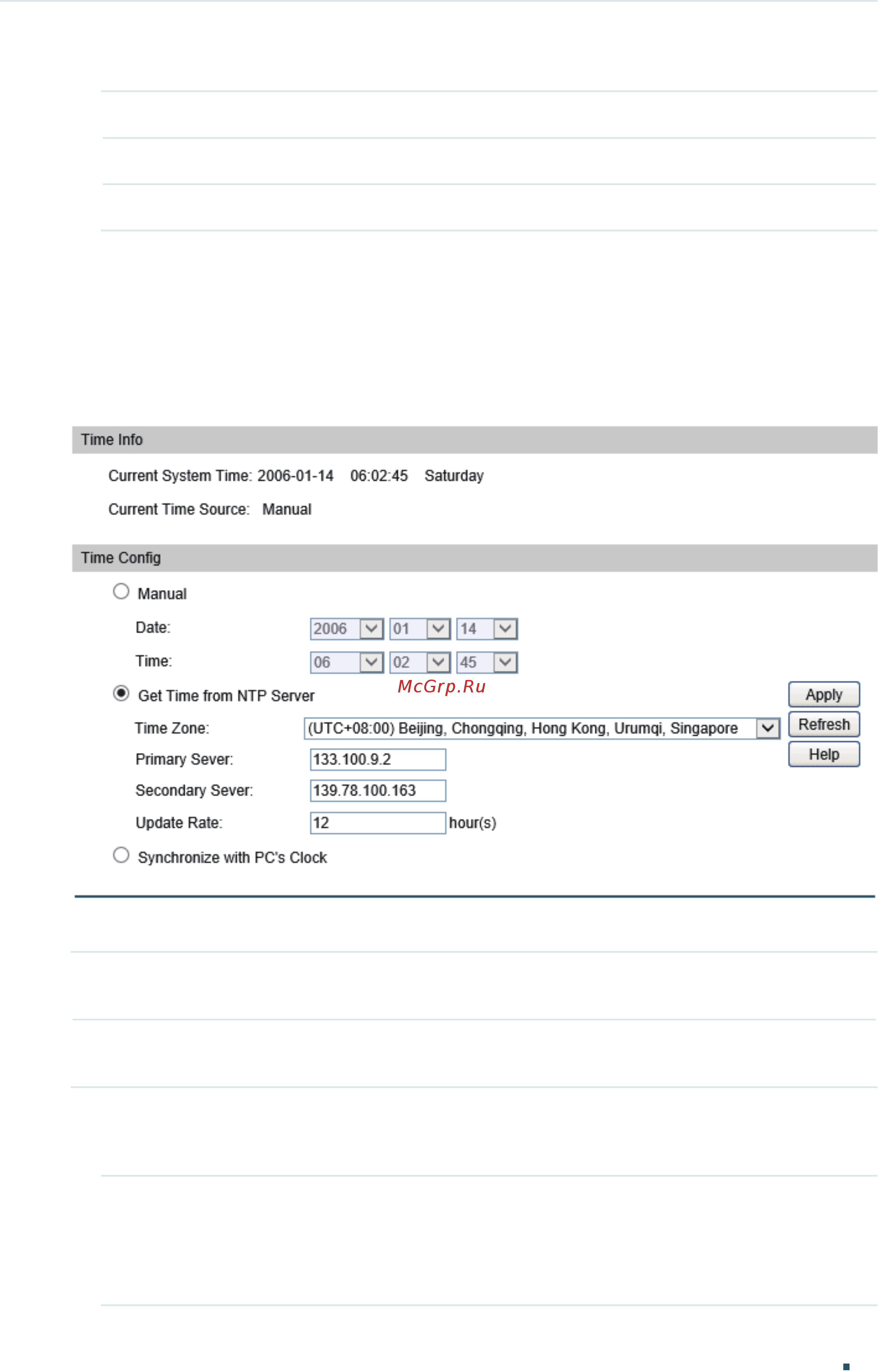

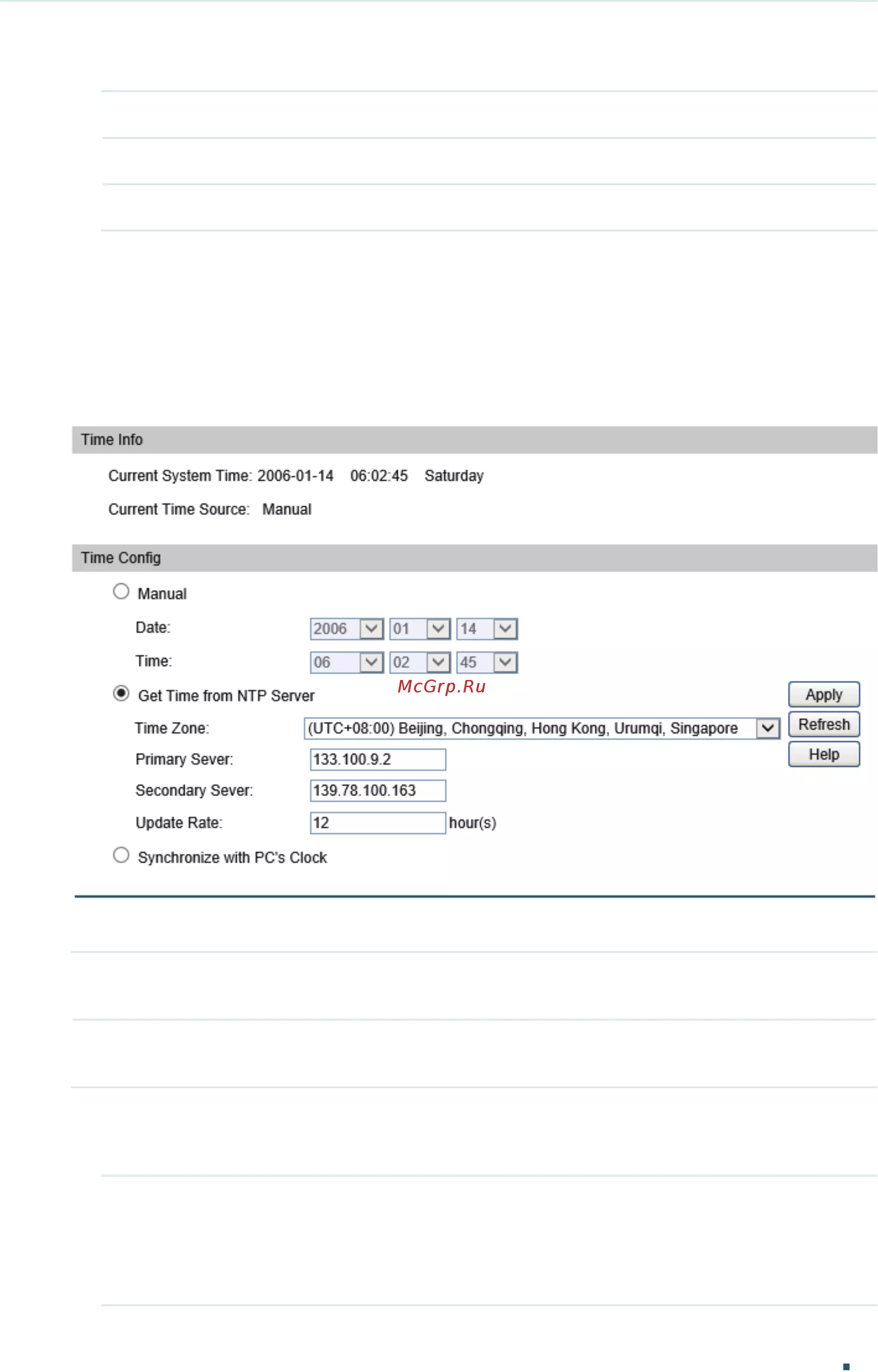

Figure 2-5 Setting the System Time
In the Time Info section, view the current time information of the switch.
Current System
Time
Displays the current date and time of the switch.
Current Time
Source
Displays the current time source of the switch.
In the Time Config section, follow these steps to configure the system time:
1) Choose one method to set the system time and specify the information.
Manual Set the system time manually.
Date: Specify the date of the system.
Time: Specify the time of the system.
