Configuring ACL ACL Configuration
Configuration Guide
513

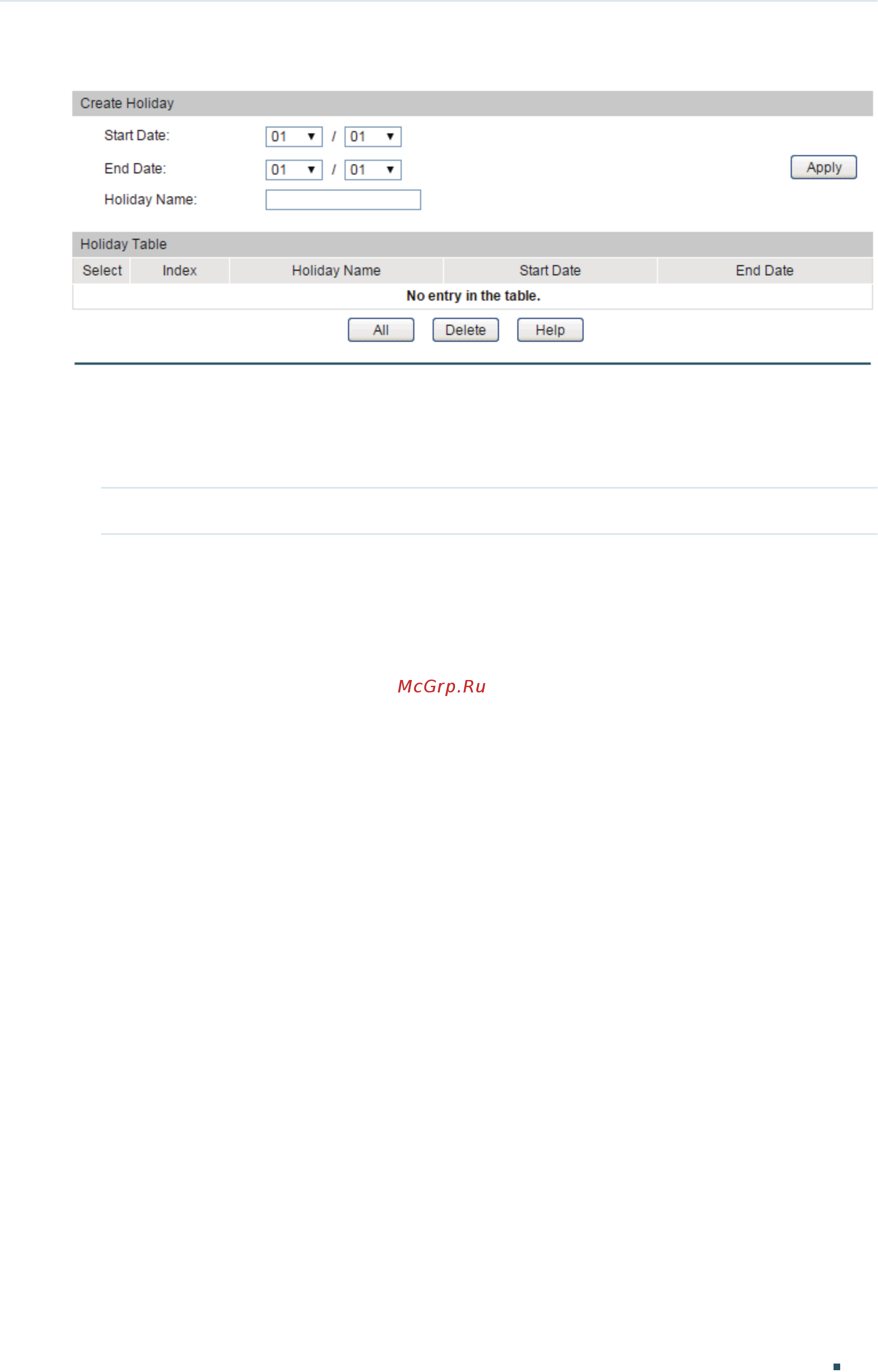

Figure 2-2 Configuring the Holiday
Follow these steps to configure the holiday:
1) In the Create Holiday section, configure the start and end date, and assign a name to
the holiday.
Start Date / End Date Specify the start and end date of the holiday
2) Click Apply to make the settings effective.
2.1.3 Creating an ACL
You can create different types of ACL and define the rules based on source MAC or IP
address, destination MAC or IP address, protocol type, port number and so on.
MAC ACL: MAC ACL uses source and destination MAC address for matching operations.
Standard-IP ACL: Standard-IP ACL uses source and destination IP address for matching
operations.
Extended-IP ACL: Extended-IP ACL uses source and destination IP address, IP protocols
and so on for matching operations.
IPv6 ACL: IPv6 ACL uses source and destination IPv6 address for matching operations.
Choose the menu ACL > ACL Config > ACL Create to load the following page.
