Managing Physical Interfaces Basic Parameters Configurations
Configuration Guide
101
2
Basic Parameters Configurations
2.1 Using the GUI
Choose the menu Switching > Port > Port Config to load the following page.

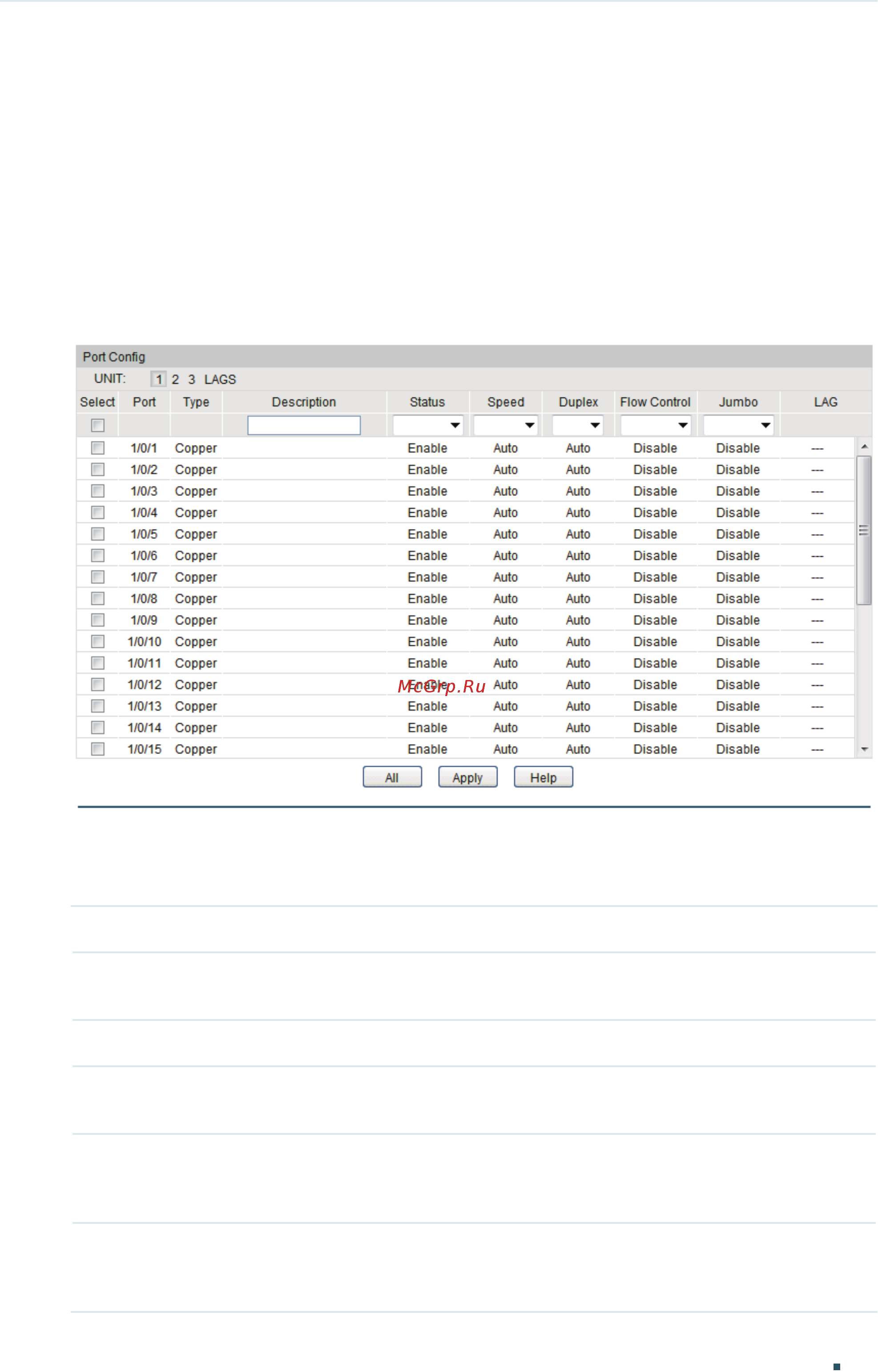

Figure 2-1 Configuring Basic Parameters
Follow these steps to set basic parameters for ports:
Select and configure your desired ports or LAGs. Then click Apply.
UNIT:1/LAGS Click 1 to configure physical ports. Click LAGS to configure LAGs.
Type Displays the port type. Copper indicates an Ethernet port, and SFP or SFP+ indicates
a fiber port.
Description Give a port description for identification.
Status With this option enabled, the port forwards packets normally. Otherwise, the port
discards all the received packets. By default, it is enabled.
Speed Select the appropriate speed mode for the port. When Auto is selected, the port
autonegotiates speed mode with the connected device. The default setting is Auto.
This value is recommended if both ends of the line support auto-negotiation.
Duplex Select the appropriate duplex mode for the port. There are three options: Half, Full
and Auto. When Auto is selected, the port autonegotiates duplex mode with the
connected device. The default setting is Auto.
