Accessing the Switch Command Line Interface Access

Configuration Guide

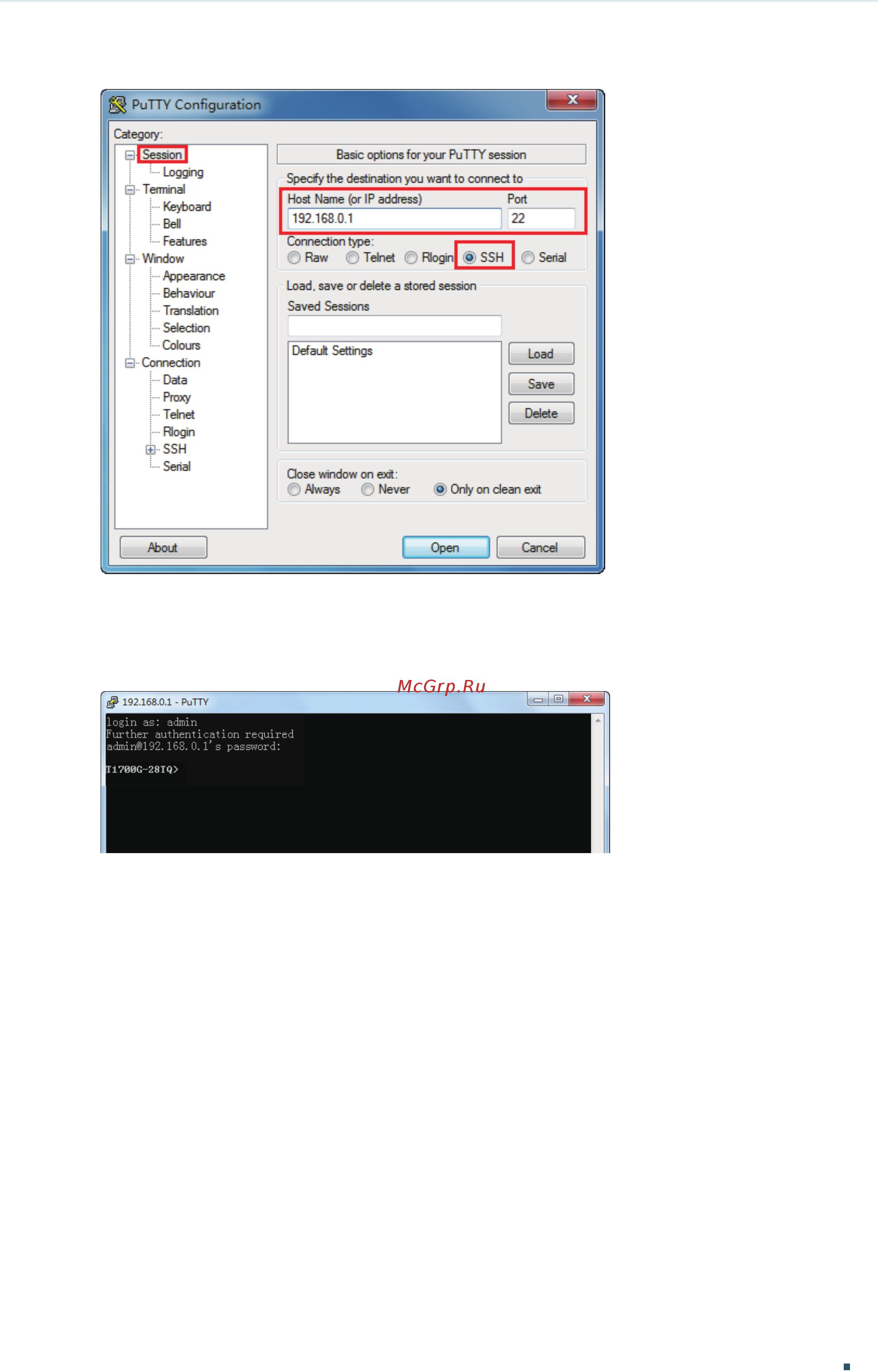

Figure 3-8 Configurations in PuTTY

2) Enter the login username and password to log in to the switch, and you can continue to

configure the switch.

Figure 3-9 Log In to the Switch

Key Authentication Mode

1) Open the PuTTY Key Generator. In the Parameters section, select the key type and

enter the key length. In the Actions section, click Generate to generate a public/private

key pair. In the following figure, an SSH-2 RSA key pair is generated, and the length of

each key is 1024 bits.
