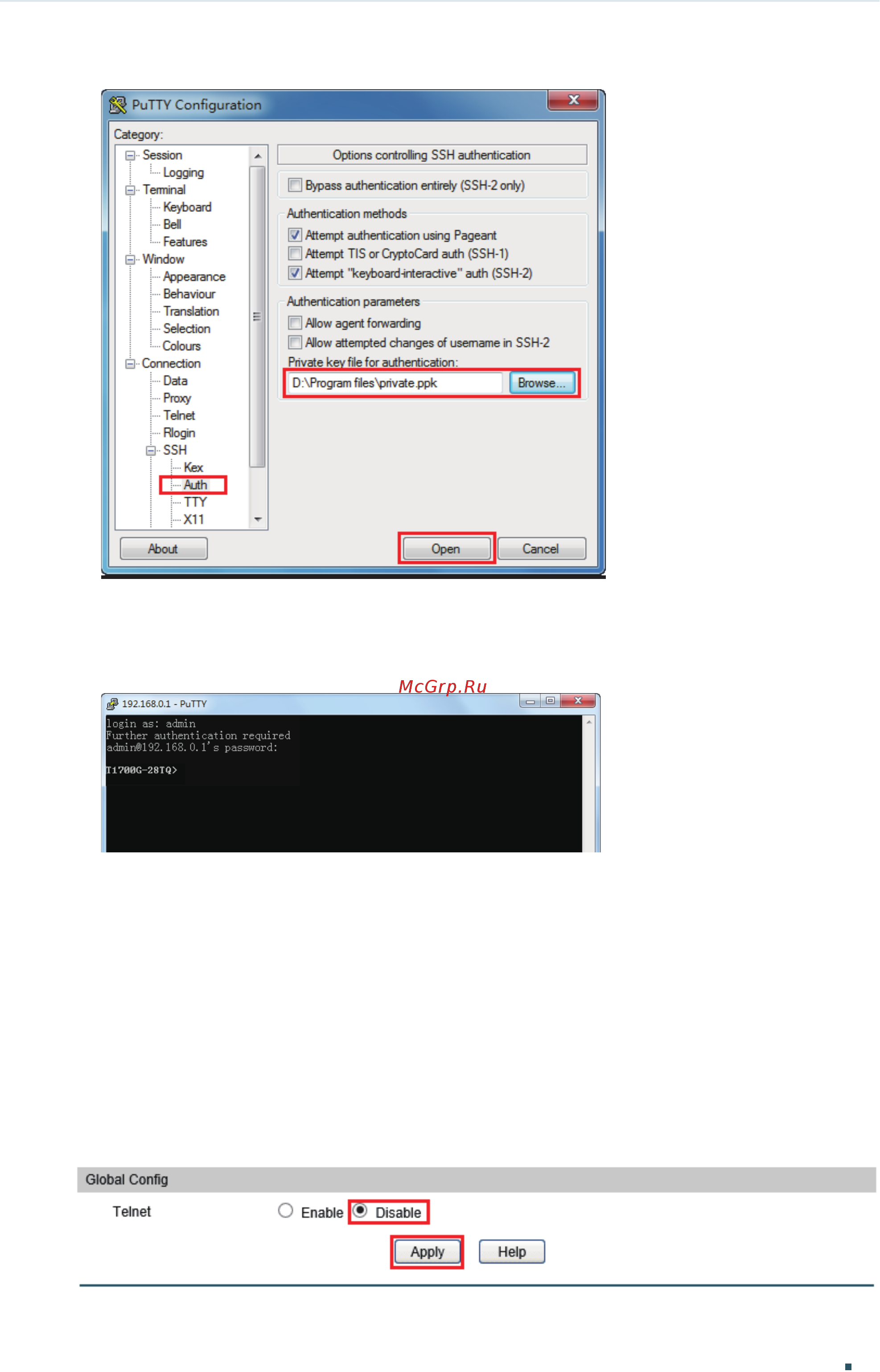

![Tp-Link T1700G-28TQ V2 [43/772] You can shut down the telnet function to block any telnet access to the cli interface](/views2/1472751/page43/bg2b.png)
Configuration Guide 18
Accessing the Switch Command Line Interface Access
Figure 3-14 Download the Private Key to PuTTY
6) After negotiation is completed, enter the username to log in. If you can log in without
entering the password, the key authentication completed successfully.
Figure 3-15 Log In to the Switch
3.4 Disable Telnet login
You can shut down the Telnet function to block any Telnet access to the CLI interface.
Using the GUI:
Go to
System > Access Security > Telnet Config, disable the Telnet function and click Apply.
Figure 3-16 Disable Telnet login
