Configuring Layer 2 Multicast IGMP Snooping Configurations
Configuration Guide
300
Viewing Dynamic Router Ports in the Multicast VLAN
This table displays all the dynamic router ports in the multicast VLAN.
(Optional) Configuring the Static Router Ports
Follow these steps to configure static router ports in the multicast VLAN:
1) Configure the router ports in the multicast VLAN.
VLAN ID Specify the VLAN to be configured.
Static Router
Ports
Select one or more ports to be the static router ports in the VLAN. All multicast
data in this VLAN will be forwarded through the static router ports.
2) Click Apply.
Note:
When configuration is finished, all multicast data through the ports in the VLAN will be processed in
this multicast VLAN.
2.1.5 (Optional) Configuring the Querier
IGMP Snooping Querier sends general query packets regularly to maintain the multicast
forwarding table. Choose the menu Multicast > IGMP Snooping > Querier Config to load
the following page.

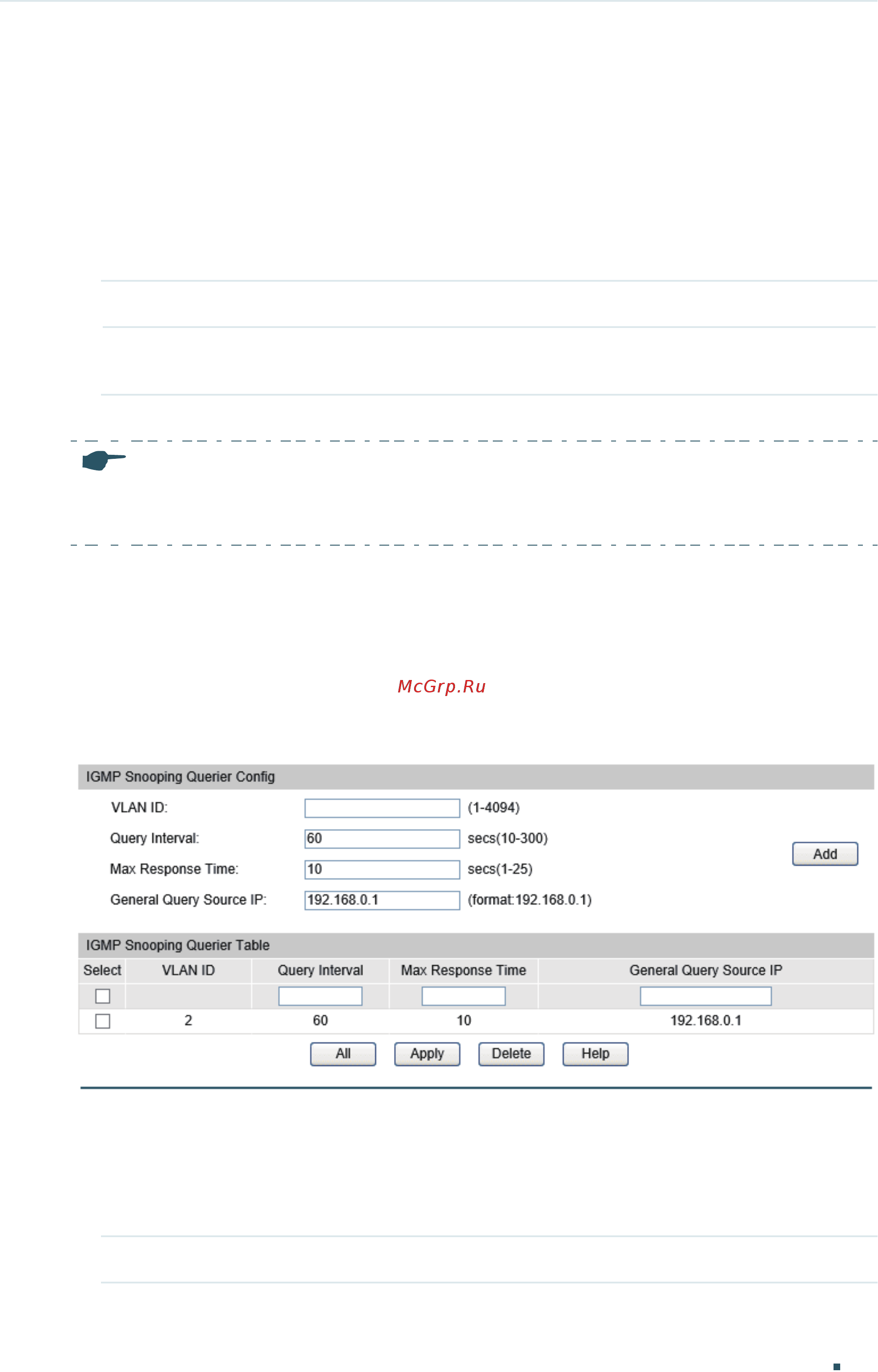

Figure 2-5 Querier Config
Configuring the Querier
Follow these steps to configure the querier.
1) Specify a VLAN and configure the querier on this VLAN.
VLAN ID Specify the VLAN to be configured.
