Configuration Guide 89
Configuring Stack Configuration Example
3
Configuration Example
3.1 Ring Stack Application
3.1.1 Network Requirements
Three PCs are connecting to the router through three different switches. It’s required to
establish a ring-stack with these three switches to improve the network performance and
redundancy.

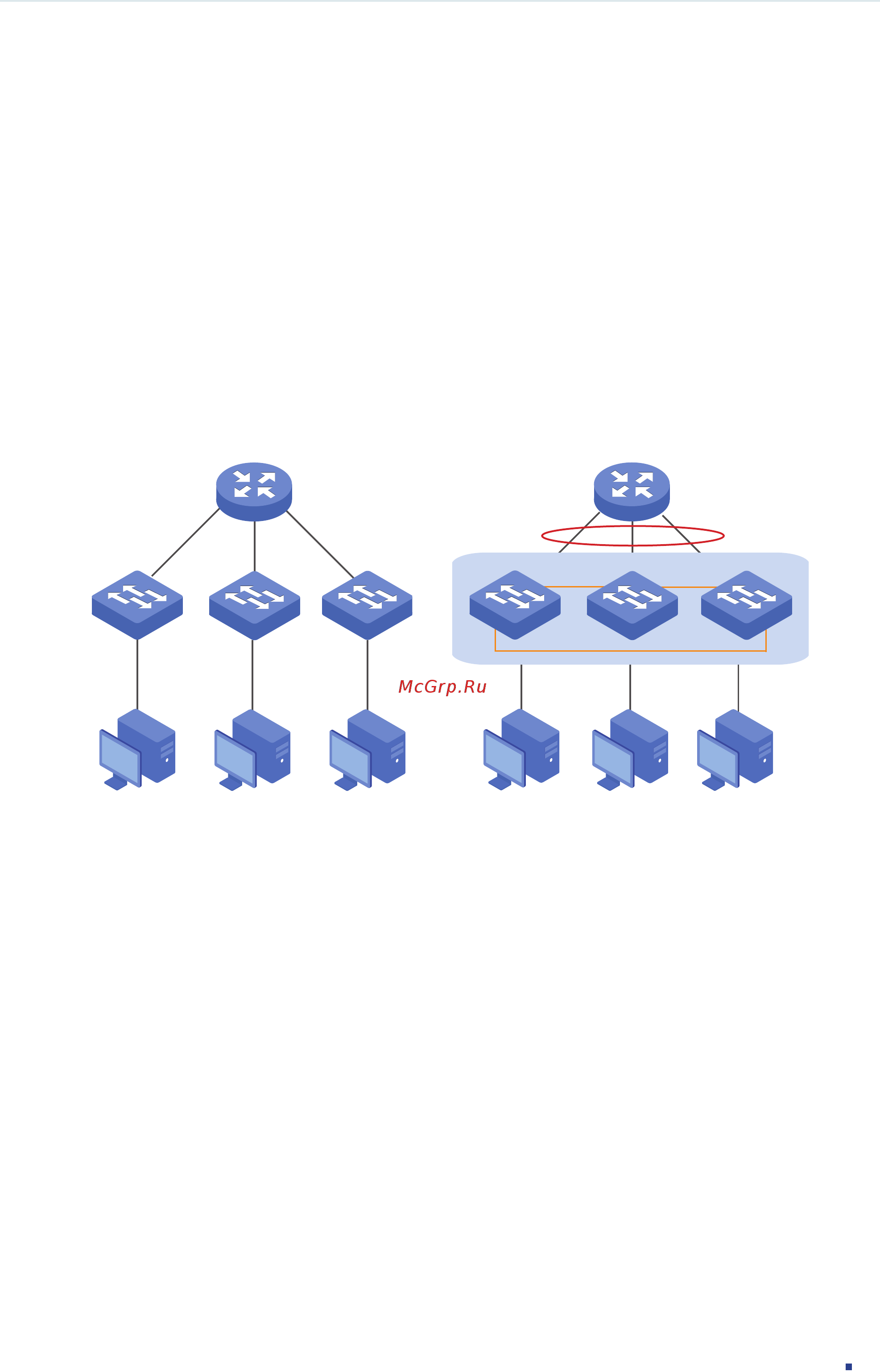

Figure 3-1 Network Topology
LAG
Stack
Switch A
Switch B
Switch C
Te1/0/25
Te3/0/25
Te2/0/26
Te1/0/26
Te3/0/26
Te2/0/25
3.1.2 Configuration Scheme
Connect the three switches in a ring topology to build up a ring stack.
Configure the link between the stack and the router as LAG. For details about the LAG
configuration, please refer to
Configuring LAG
.
Demonstrated with T1700G-28TQ, this chapter provides configuration procedures in two
ways: using the GUI and using the CLI.
3.1.3 Using the GUI
1) Power on the three switches and enable their stack ports 1/0/25 and 1/0/26
respectively. Go to Stack > Stack Management > Stack Config.
