Configuration Guide 90

Configuring Stack Configuration Example

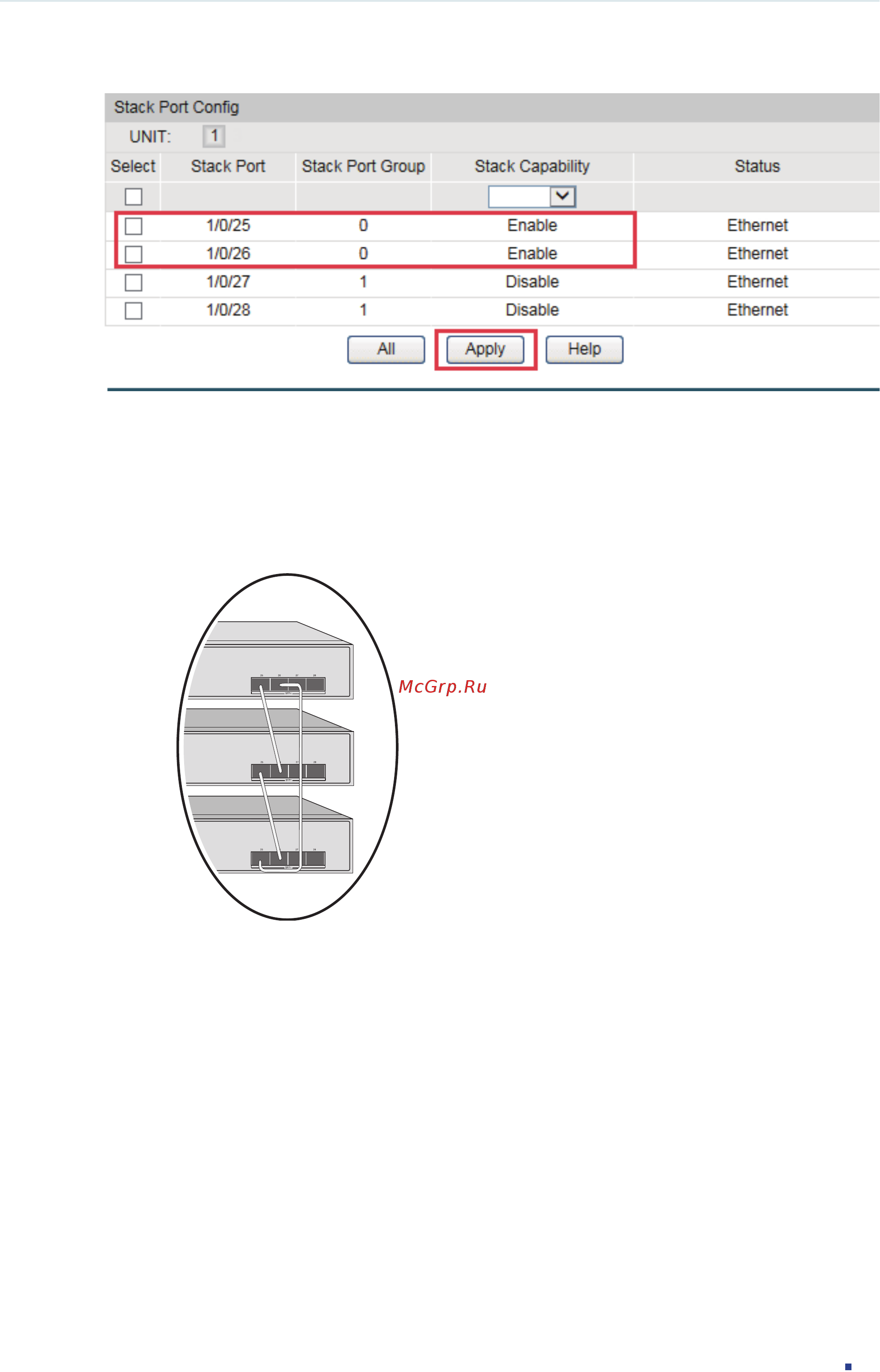

Figure 3-2 Enable Stack Ports

2) Power off the three switches.

3) Connect the three switches as a ring topology with SFP module and SFP cable. For

example, connect switch A’s 1/0/25 to switch B’s 1/0/26, switch B’s 1/0/25 to switch C’s

1/0/26 and switch C’s 1/0/25 to switch A’s 1/0/26.

Figure 3-3 Ring Connection

4) Identify the unit to be the master. Power this unit up first.

5) If this unit has the default configuration, it will come up as unit1 (as displayed on the

Unit ID LED) and automatically becomes the master.

6) Power on the second switch. It will come up as a member switch. Its Unit ID LED on the

front panel will display 2.

7) Power on the third switch. It will come up as a member switch. Its Unit ID LED on the

front panel will display 3.

8) Log in to one of the switch to check the ring stack configurations. Go to Stack > Stack

Management > Stack Info.
