Configuration Guide 380
Configuring Layer 2 Multicast Configuration Examples
Figure 5-17 Network Topology for Multicast Filtering
Internet
Host B
Receiver
Host C
Receiver
Host D
Receiver
VLAN 10
Querier
Source
Gi1/0/4
Gi1/0/2
Gi1/0/3
Gi1/0/1
Demonstrated with T1700G-28TQ, this section provides configuration procedures in two
ways: using the GUI and using the CLI.
5.4.4 Using the GUI

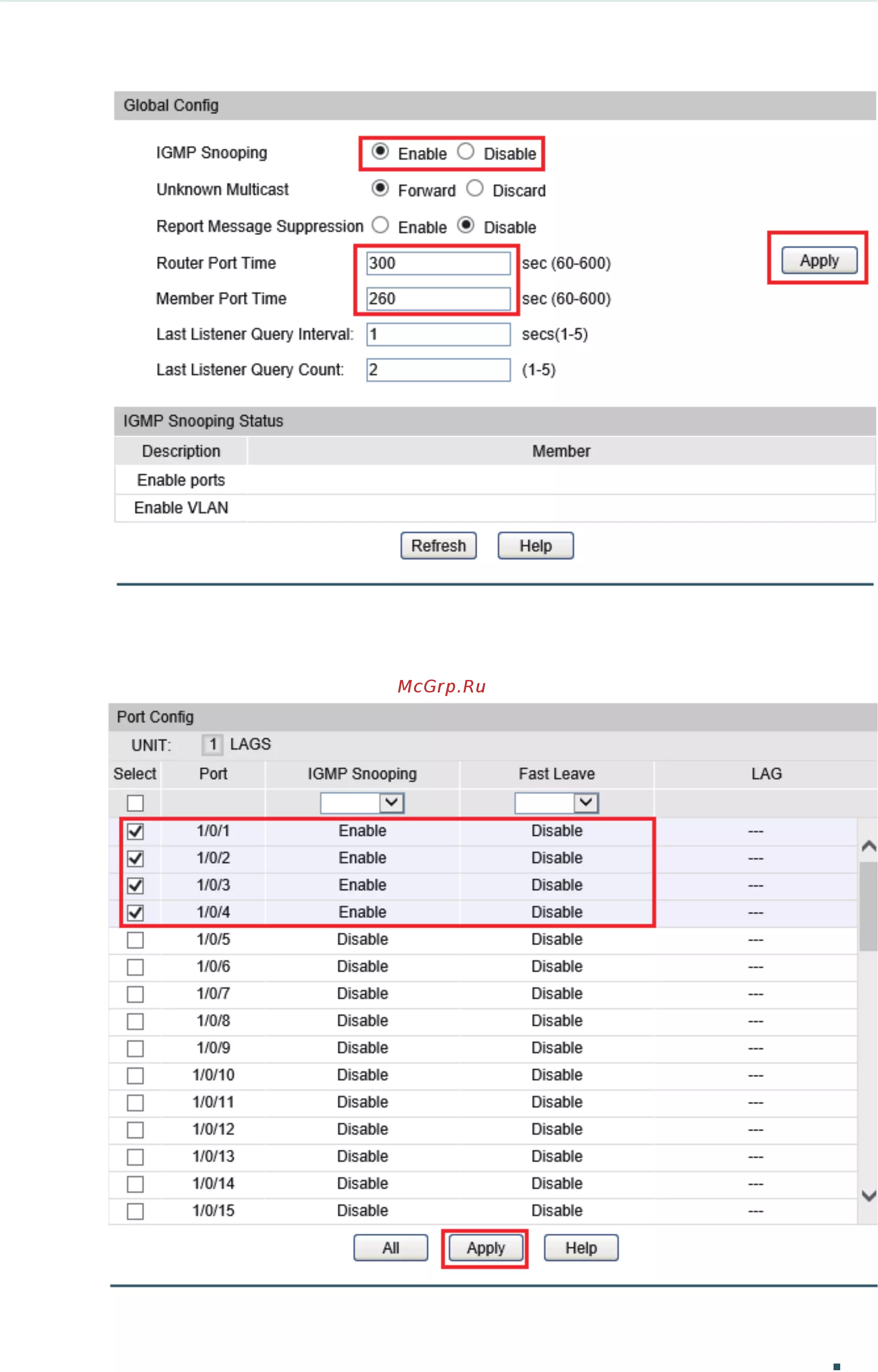

1) Choose the menu Multicast > IGMP Snooping > Snooping Config to load the following
page. Enable IGMP Snooping globally, and keep the default values in the Router Port
Time and Member Port Time fields.
