![Tp-Link T1700G-28TQ V2 [494/772] Vlan config and click create to load the following page create vlan 10 with the description of rd add port 1 0 1 as an untagged port and port 1 0 3 as a tagged port to vlan 10 then click apply](/views2/1472751/page494/bg1ee.png)
Configuring QoS Configuration Examples
Configuration Guide
469

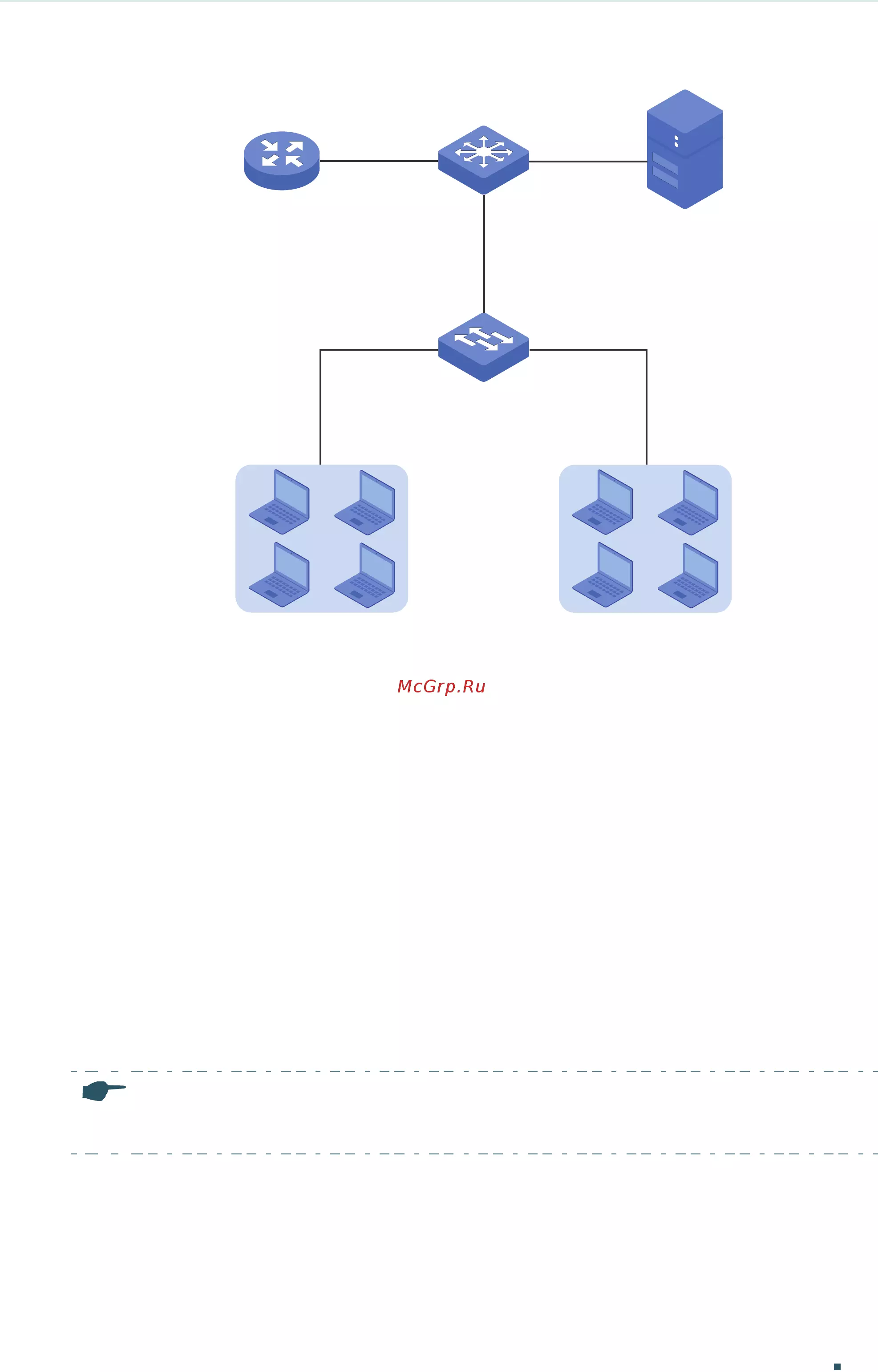

Figure 4-5 QoS Application Topology
Server
10.10.88.5/24
RD Dept.
10.10.10.0/24
Marketing Dept.
10.10.20.0/24
Router
Gi1/0/3
Gi1/0/1
Gi1/0/1
VLAN 10
VLAN 20
Gi1/0/2
Gi1/0/2
Switch B
Switch A
4.2.2 Configuration Scheme
Configure Switch A to add different VLAN tags to the packets from the two departments
respectively.
Configure Switch B to classify the incoming packets from the two departments
according to the VLAN tags, and to map them into different TC queues. Configure the
schedule mode as WRR-Mode to implement the QoS feature.
This chapter provides configuration procedures in two ways: using the GUI and using the
CLI.
4.2.3 Using the GUI
Note:
Before configuration, ensure network segments are reachable to each other.
Configurations for Switch A (Demonstrated with T1700G-28TQ)

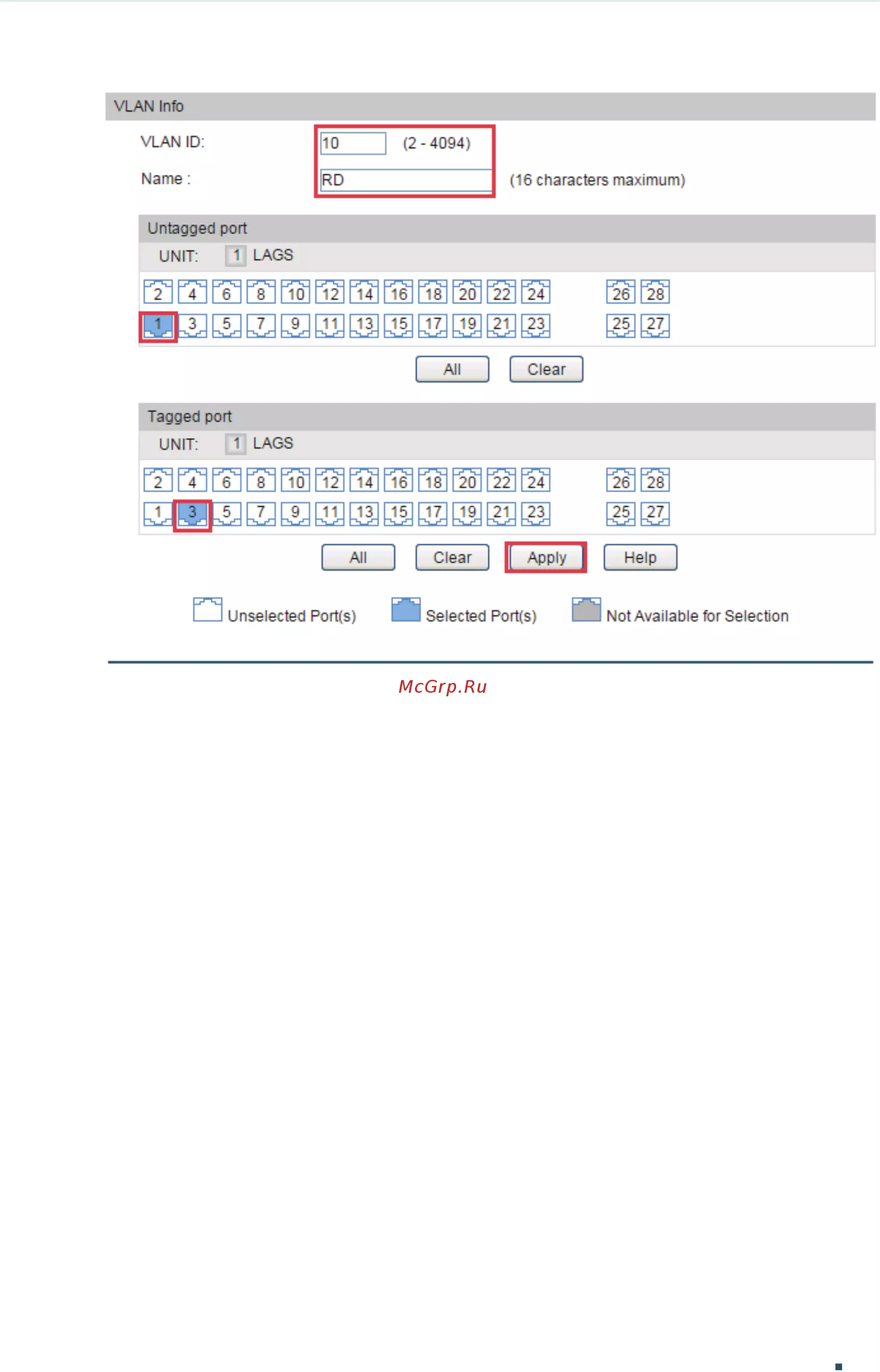

1) Choose VLAN > 802.1Q VLAN> VLAN Config, and click Create to load the following
page. Create VLAN 10 with the description of RD. Add port 1/0/1 as an untagged port
and port 1/0/3 as a tagged port to VLAN 10. Then click Apply.
