Configuration Guide 331
Configuring Layer 2 Multicast Configuring MLD Snooping
Fast Leave With Fast Leave enabled on a port, the switch will remove this port from the
forwarding list of the corresponding multicast group once the port receives a
leave message. You should only use this function when there is a single receiver
present on the port.
2) Click Apply.
3.1.3 Configuring MLD Snooping in the VLAN
Choose the menu Multicast > MLD Snooping > VLAN Config to load the following page.

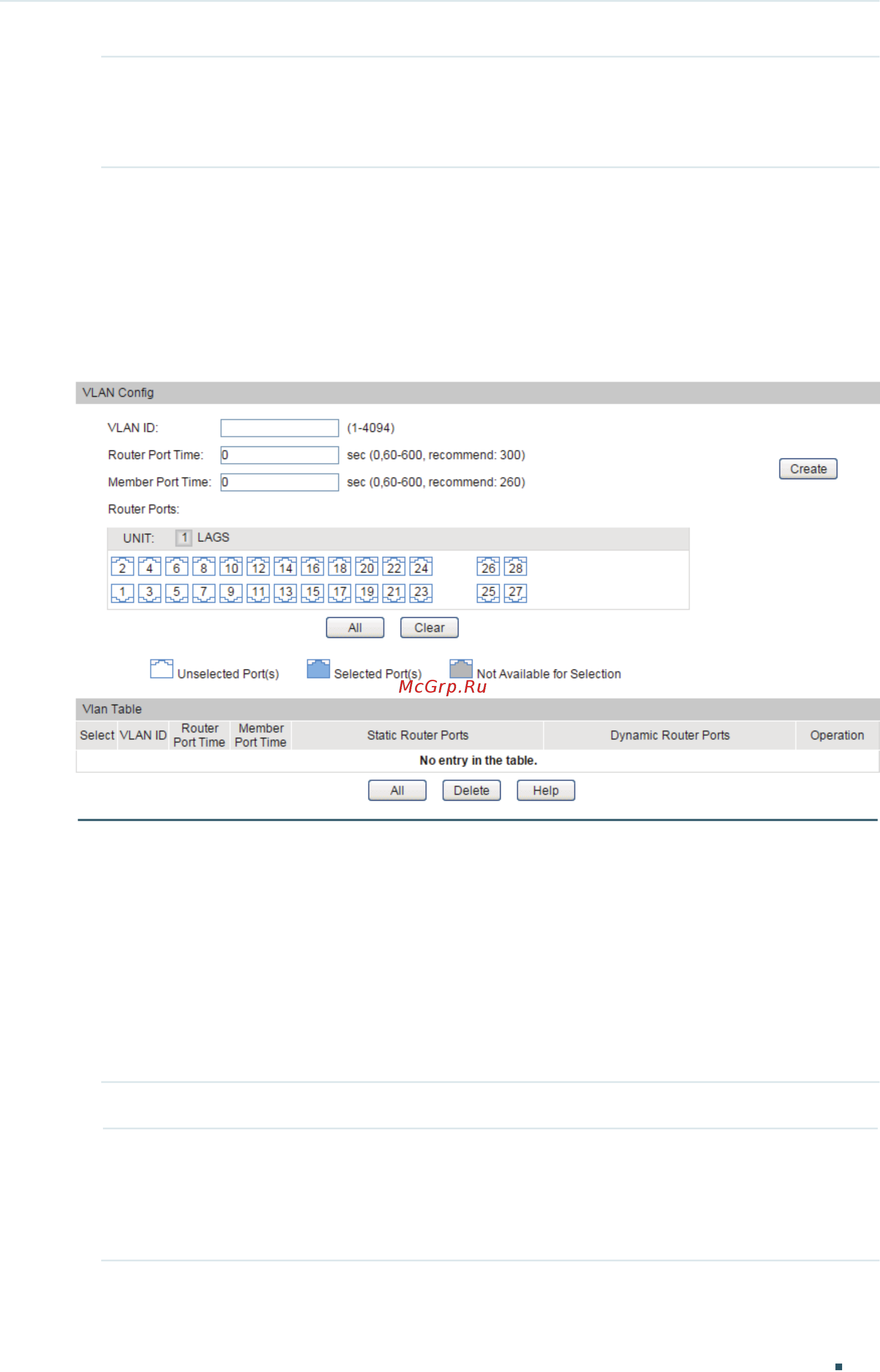

Figure 3-3 MLD Snooping in VLAN
Configuring MLD Snooping Globally in the VLAN
In the VLAN Config section, follow these steps to configure relevant parameters for the
designate VLAN.
1) Set up the VLAN that the router ports and the member ports are in. For details, please
refer to
Configuring 802.1Q VLAN
.
2) Enable MLD Snooping in the designate VLAN, and configure the aging time of the router
ports and the member ports.
VLAN ID Specify the VLAN to enable MLD Snooping.
Router Port
Time
Specify the aging time of the router ports in the VLAN. If the router port does not
receive any MLD general query message within the router port time, the switch
will no longer consider this port as a router port and delete it from the router port
list. The valid values are from 60 to 600 seconds. When the router port time is 0,
the VLAN uses the global time.
