Configuration Guide 738

Configuring SNMP & RMON Configuration Example

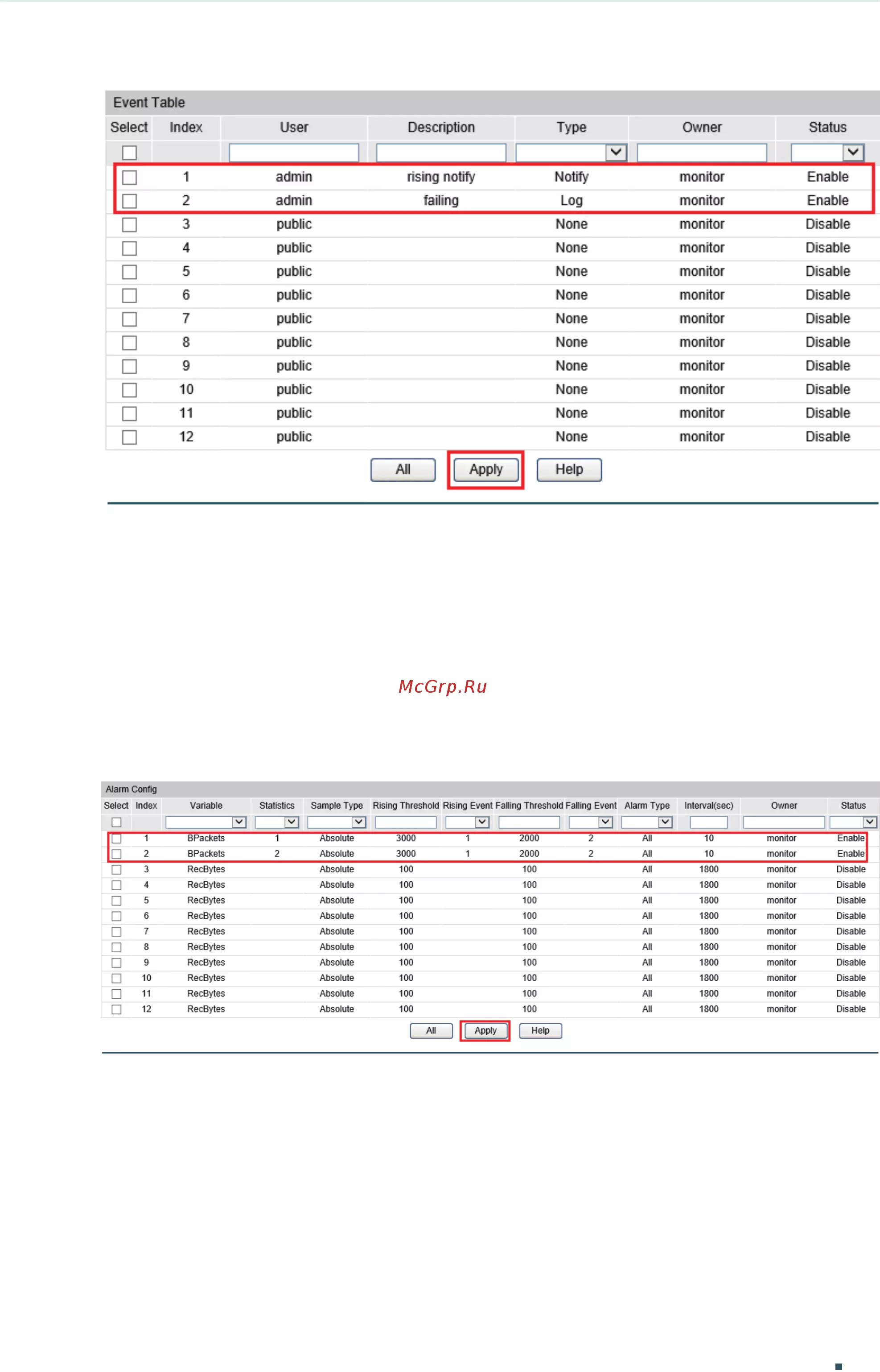

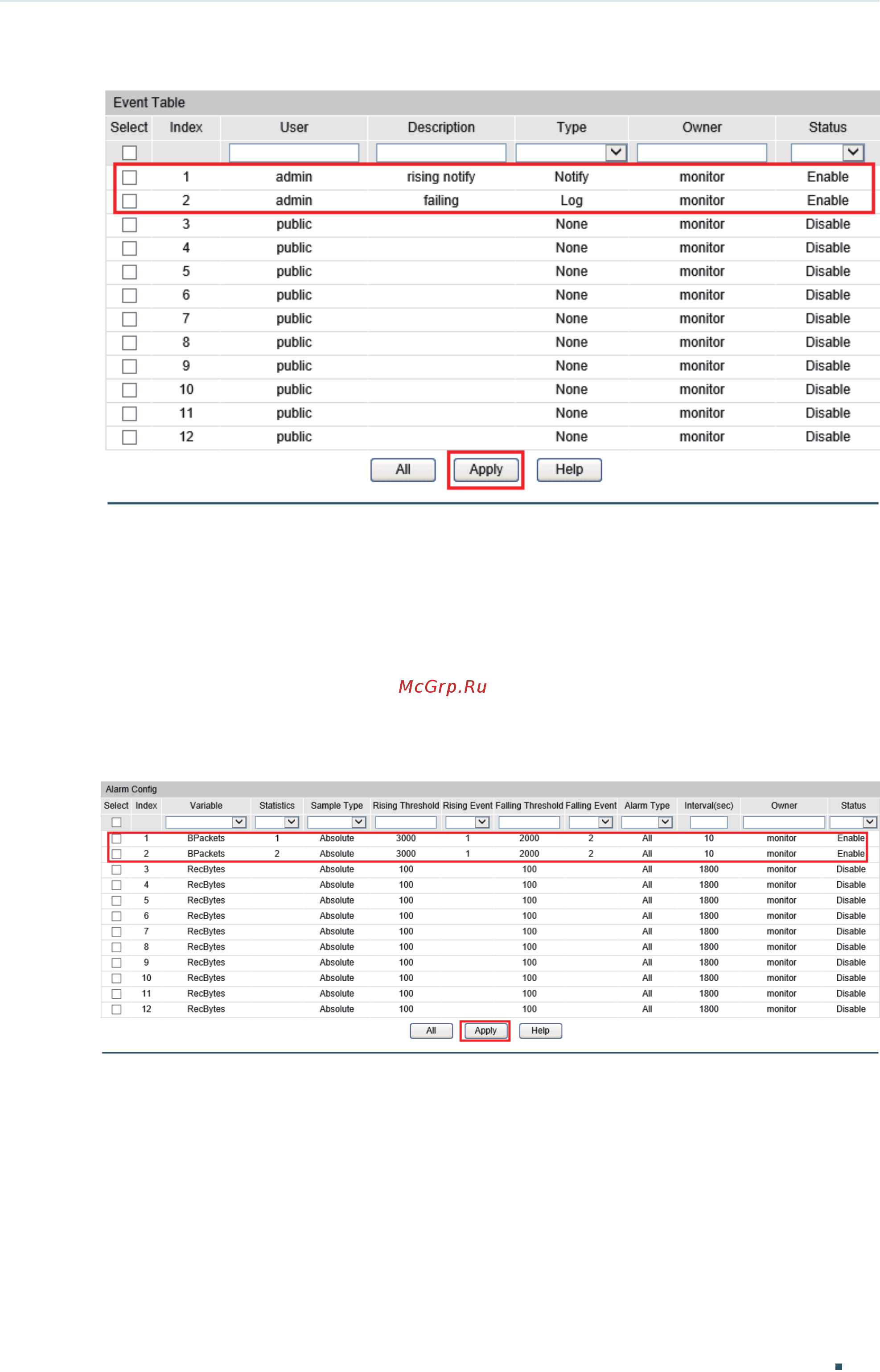

Figure 6-10 Event Configuration

4) Choose SNMP > RMON > Alarm to load the following page. Configure entries 1 and 2.

For entry 1, set the alarm variable as BPackets, related statistics entry ID as 1 (bound

to port 1/0/1), the sample type as Absolute, the rising threshold as 3000, associated

rising event entry ID as 1 (which is the notify type), the falling threshold as 2000, the

associated falling event entry ID as 2 (which is the log type), the alarm type as all, the

interval as 10 seconds, the owner name as monitor. For entry 2, set the associated

statistics entry ID as 2 (bound to port 1/0/2). Other configurations are the same as

those of entry 1.

Figure 6-11 Alarm Configuration

5) Click Save Config to save settings.

6.5 Using the CLI



Configuring Rate Limit on ports

Configure the rate limit on required ports. For detailed configuration, please refer to

Configuring QoS
