Configuration Guide 540
Configuring ACL Configuration Example for ACL

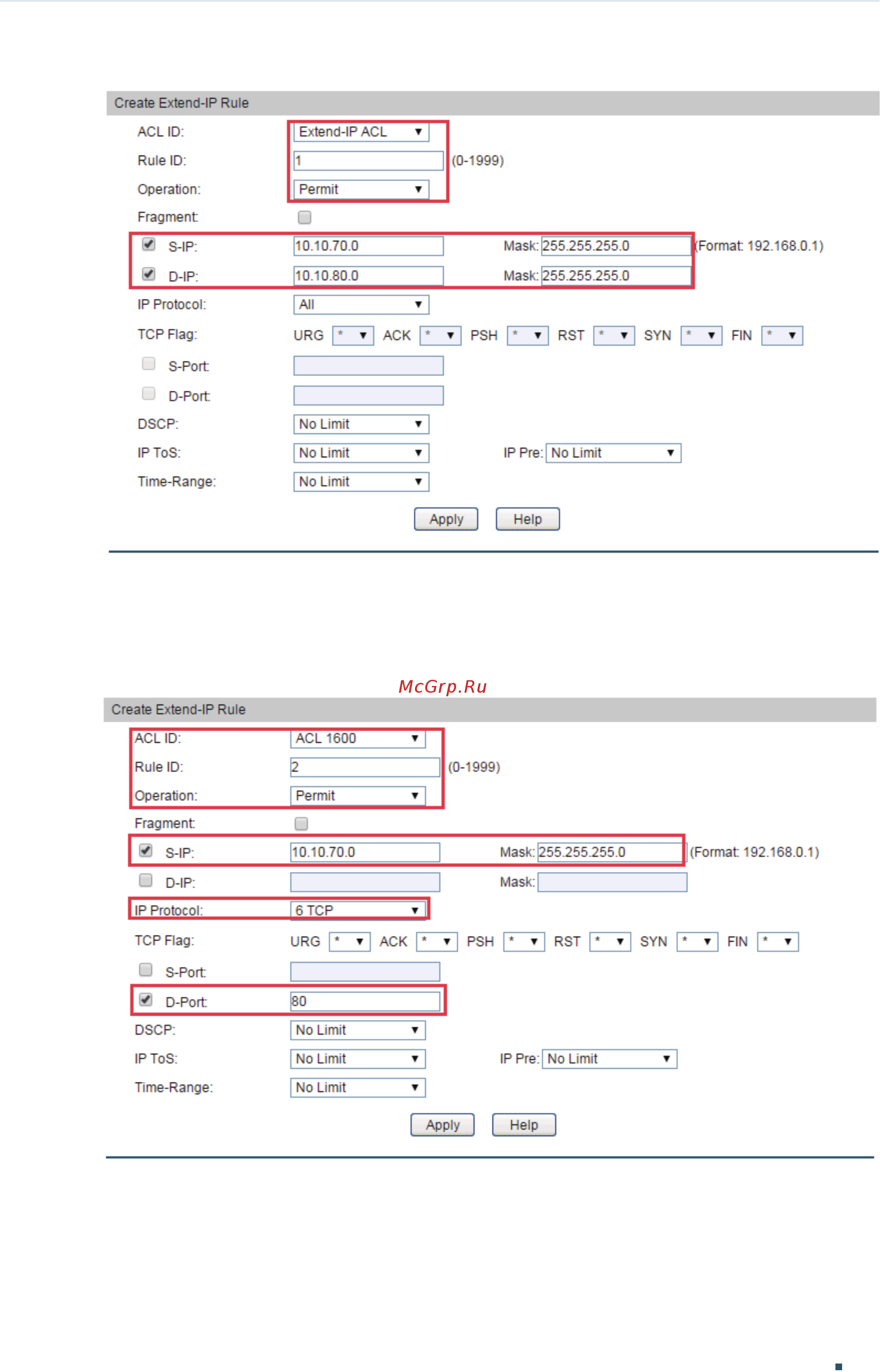

Figure 3-3 Configuring Rule 1
3) Choose the menu ACL > ACL Config > Extend ACL to load the the following page.
Configure rule 2 and rule 3 to permit packets with source IP 10.10.70.0 and destination
port TCP 80 (http service port) and UDP 443 (https service port).
Figure 3-4 Configuring Rule 2
