Configuration Guide 512
Configuring ACL ACL Configuration

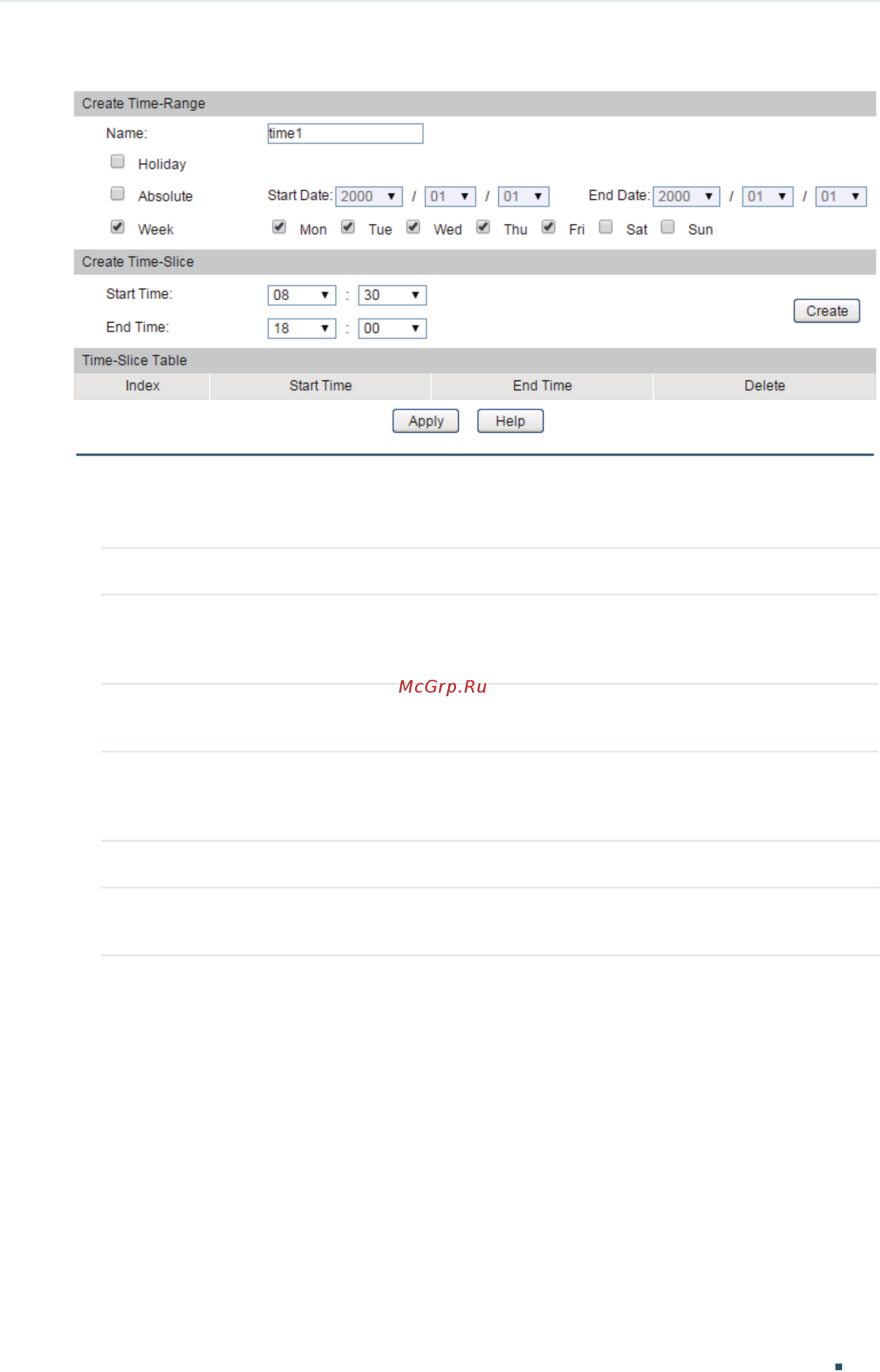

Figure 2-1 Creating the Time-Range
Follow these steps to create the time-range:
1) In the
Create Time-Range
section, assign a name to the time-range, and then select a mode.
Name Specify the name of the time-range.
Holiday Configure time-range in Holiday mode. In this mode, the corresponding ACL
rule takes effect only when the system date falls within the specified holiday
time. For details, refer to Configuring Holiday
Absolute Configure time-range in Absolute mode. In this mode, you can configure an
absolute date range during which the corresponding ACL rule will take effect.
Week Configure time-range in Week mode. In this mode, you can configure a cycle
time range so the corresponding ACL rule will take effect on certain days
each week.
2) In the
Create Time-Slice
section, configure the start and end time, then click Create.
Start Time / End
Time
Enter the start and end time of a time-slice so that this ACL rule will take
effect during specified time periods in the day.
3) Click Apply to make the settings effective.
2.1.2 (Optional) Configuring Holiday
In Holiday mode, you need to configure specific dates for the holidays.

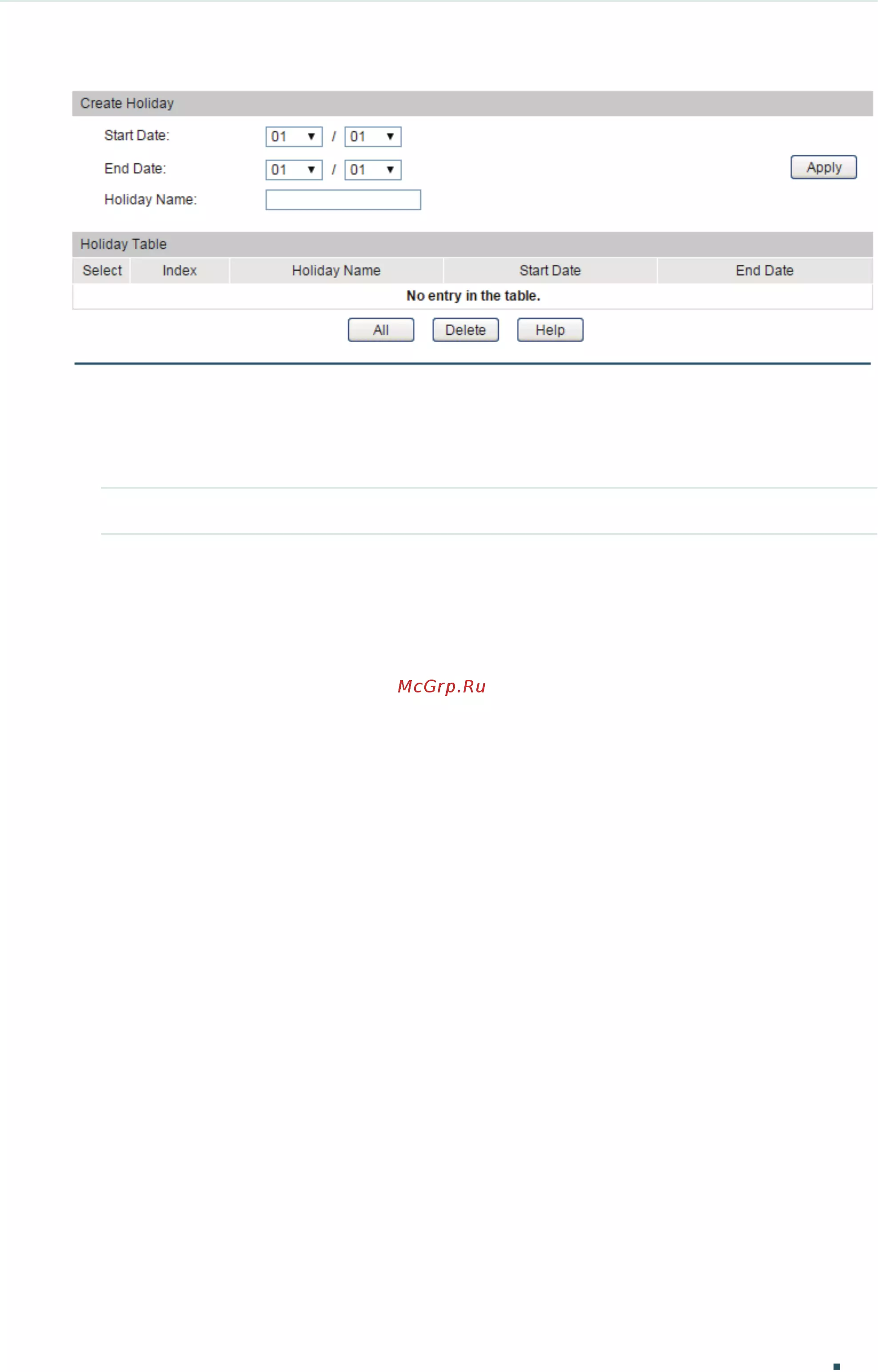

Choose the menu ACL > Time-Range > Holiday Create to load the following page.
