Configuration Guide 370
Configuring Layer 2 Multicast Configuration Examples

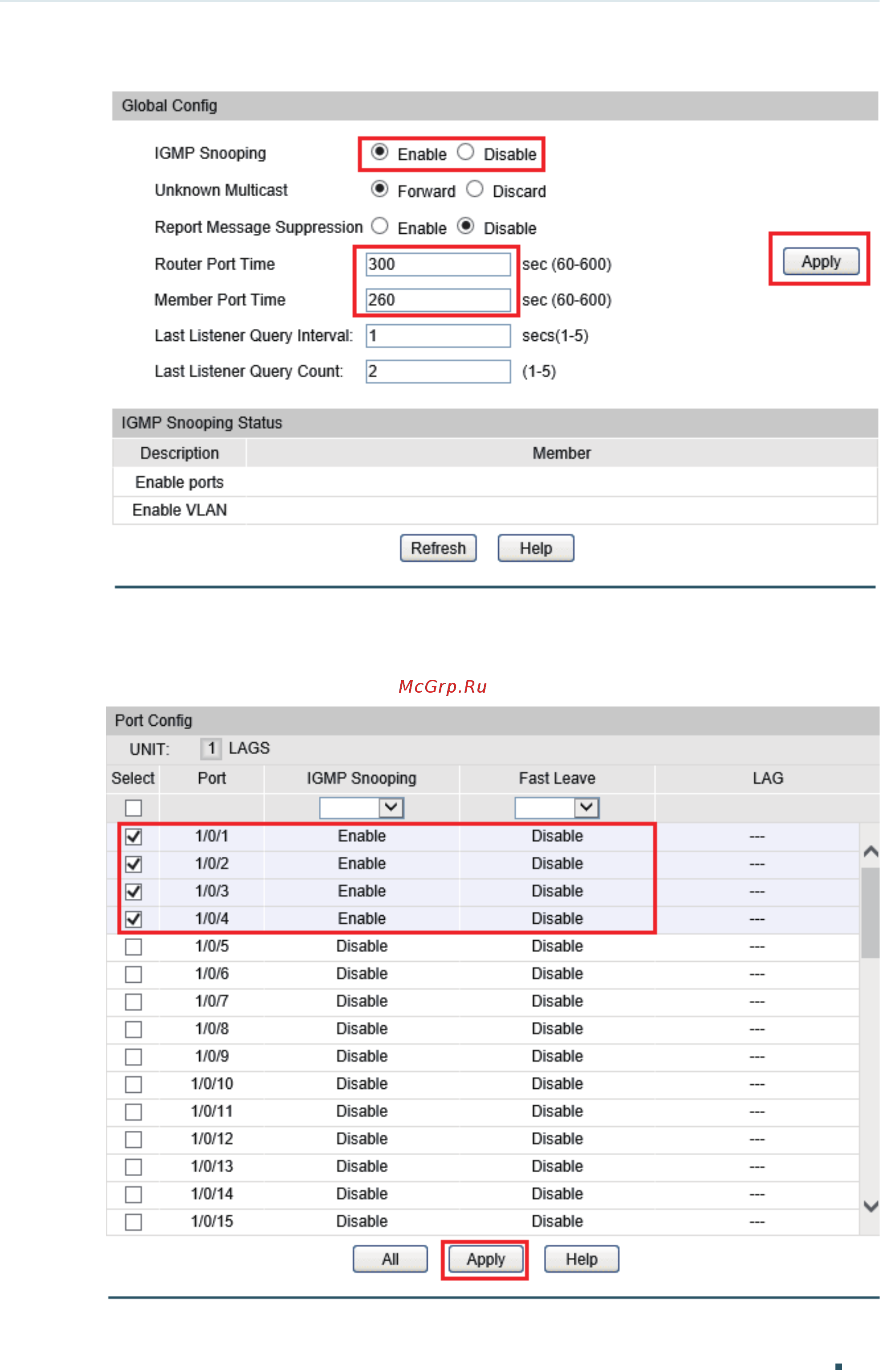

Figure 5-8 Configure IGMP Snooping Globally
2) Choose the menu Multicast > IGMP Snooping > Snooping Config to load the following
page. Enable IGMP Snooping on port 1/0/1-4.
Figure 5-9 Configure IGMP Snooping Globally
