![Tp-Link T1700G-28TQ V2 [520/772] Voice traffics from switch a and switch b are forwarded to voice gateway and internet through switch c](/views2/1472751/page520/bg208.png)
Configuring Voice VLAN Configuration Example
Configuration Guide
495
In the meeting room, computers and IP phones are connected to different ports of Switch B.
Ports connected to IP phones use the voice VLAN for voice traffic, and ports connected to
computers use the default VLAN for data traffic.
Voice traffics from Switch A and Switch B are forwarded to voice gateway and Internet
through Switch C.

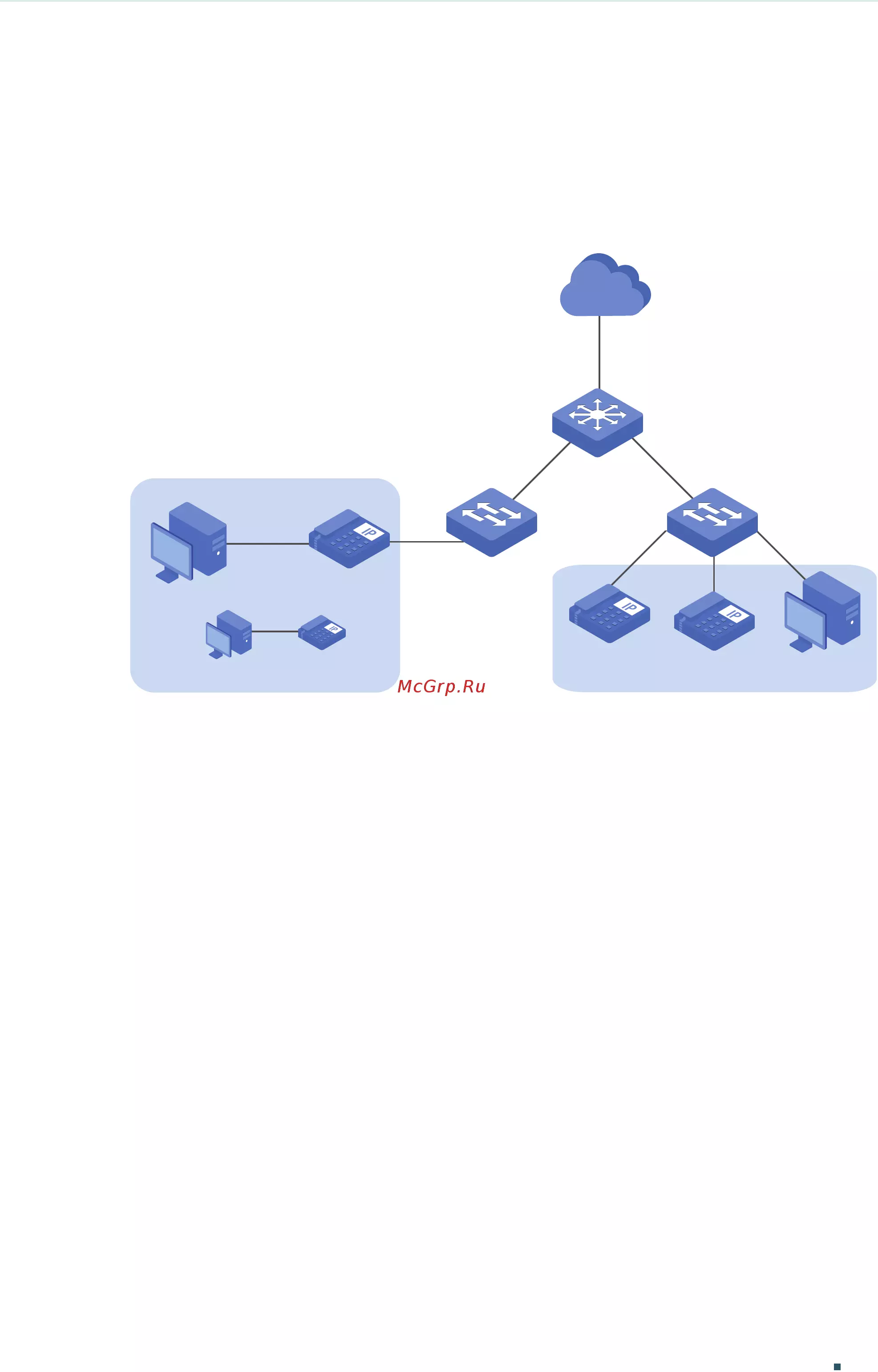

Figure 3-1 Network Topology
Internet
IP Phone 20 IP Phone 30
Switch B
Gi1/0/2
Gi1/0/1
Gi1/0/1
Switch C
Switch A
Gi1/0/2
Gi1/0/3
Gi1/0/4
PC 20
Meeting Room
Gi1/0/1
Gi1/0/2
Gi1/0/3
IP Phone 10
PC 10
......
Office Area
Demonstrated with T1700G-28TQ, this chapter provides configuration procedures in two
ways: using the GUI and using the CLI.
3.4 Using the GUI
Configurations for Switch A

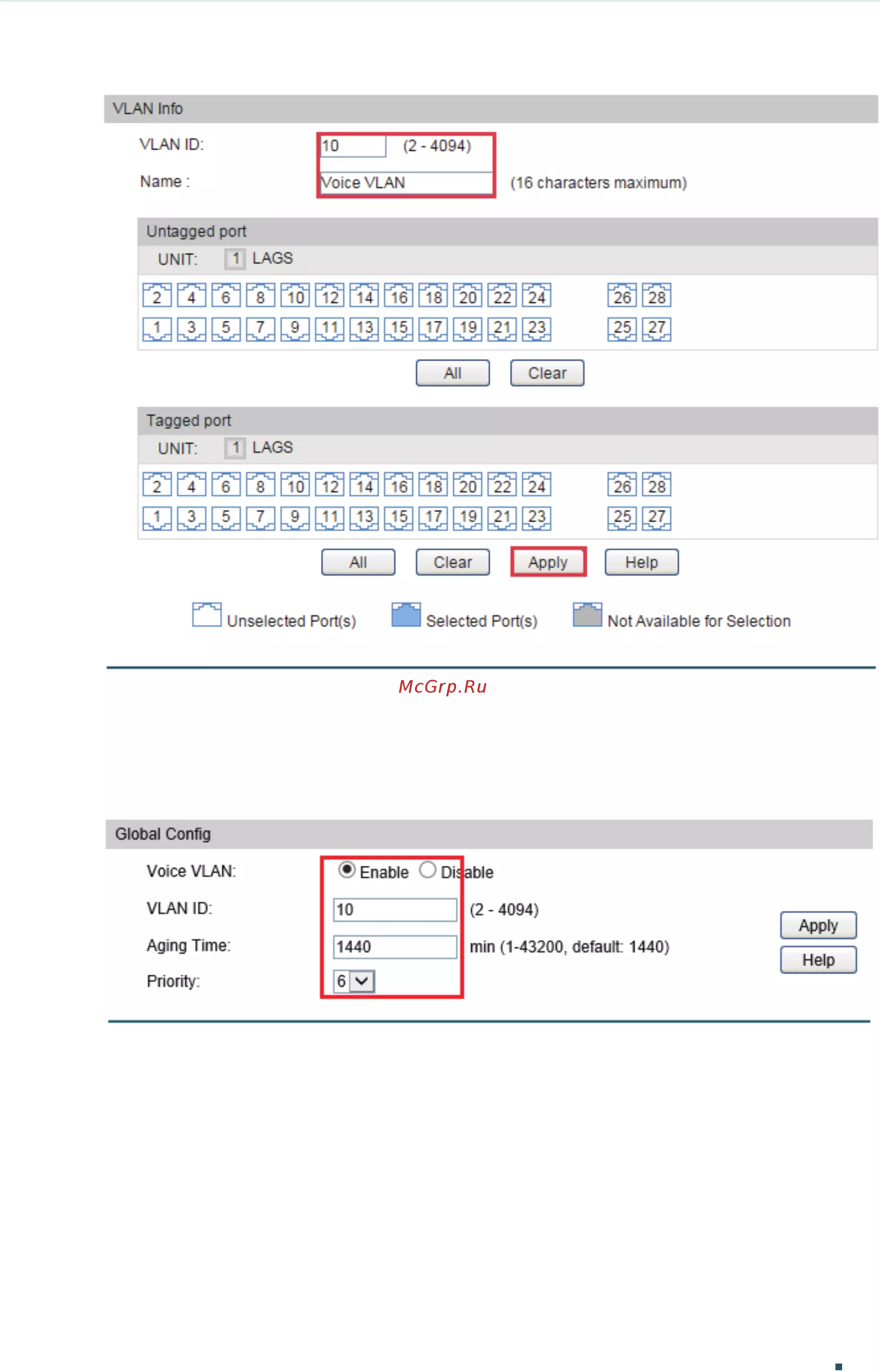

1) Choose the menu VLAN > 802.1Q VLAN > VLAN Config and click Create to load the
following page. Create VLAN 10.
