![Tp-Link T1700G-28TQ V2 Руководство пользователя онлайн [521/772] 394694](/views2/1472751/page521/bg209.png)
Configuration Guide 496
Configuring Voice VLAN Configuration Example

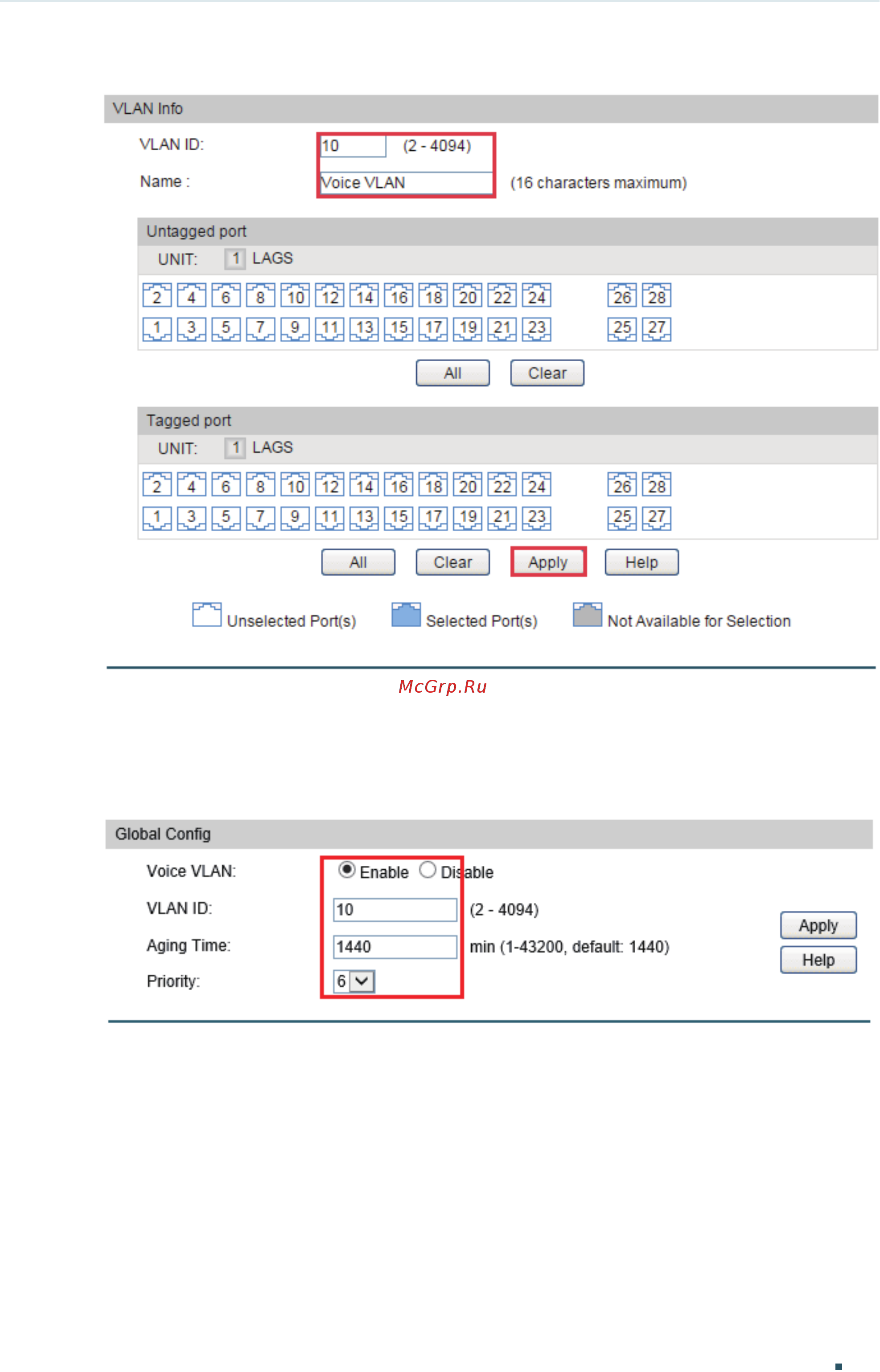

Figure 3-2 Creating a VLAN
2) Choose the menu QoS > Voice VLAN > Global Config to load the following page.
Enable voice VLAN, enter 10 in the VLAN ID field and set aging time as 1440 minutes
and priority as 6. Then click Apply.
Figure 3-3 Configuring Voice VLAN Globally

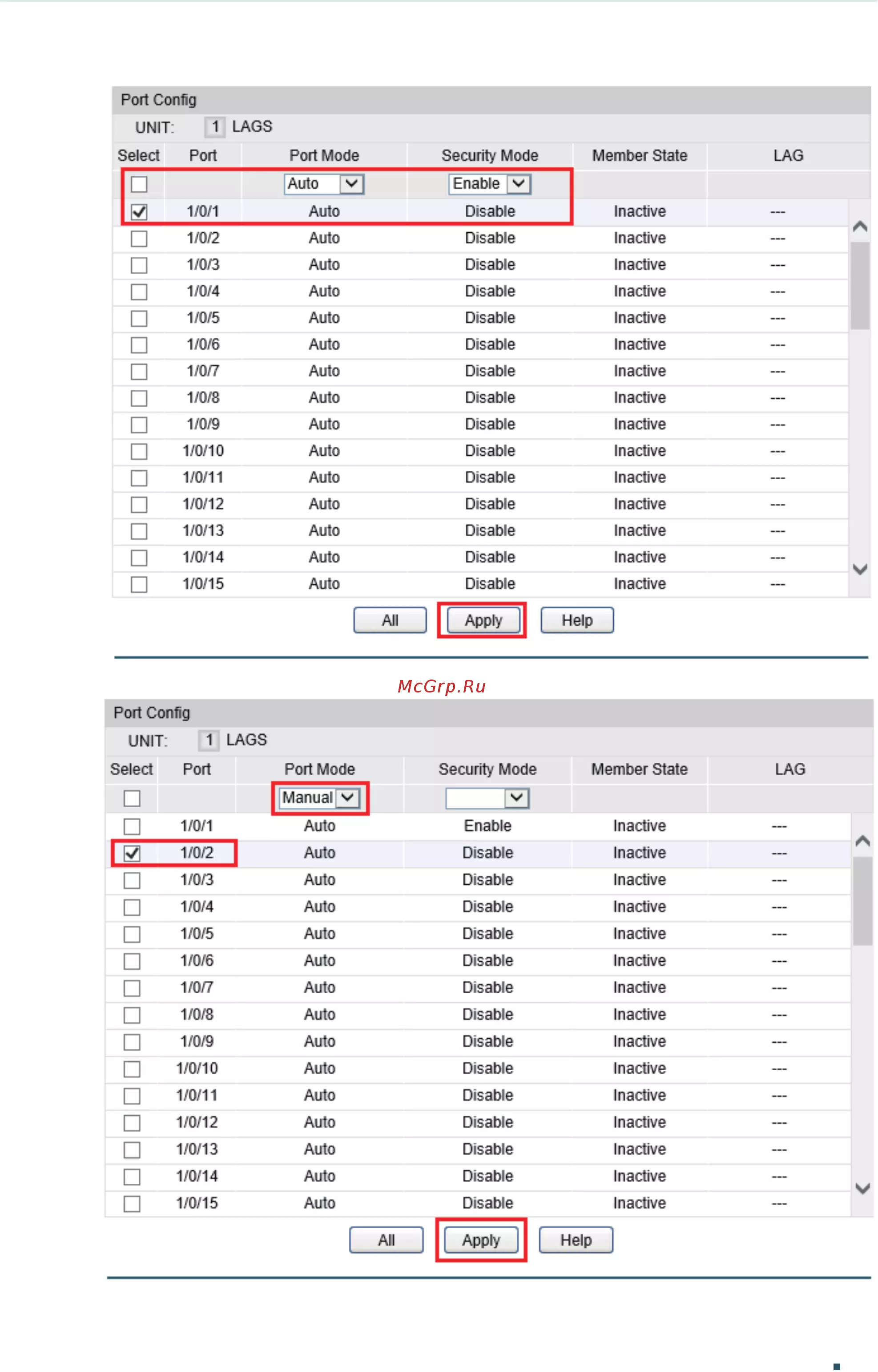

3) Choose the menu QoS > Voice VLAN > Port Config to load the following page. Select
port 1/0/1, choose auto mode and enable security mode. Select port 1/0/2 and choose
manual mode. Click Apply.
