![Tp-Link T1700G-28TQ V2 Руководство пользователя онлайн [409/772] 394694](/views2/1472751/page409/bg199.png)
Configuration Guide 384
Configuring Layer 2 Multicast Configuration Examples
6) Specify the multicast data that Host C and Host D can receive.
a. Choose the menu Multicast > IGMP Snooping > Profile Config to load the following
page. Create Profile 1, select Permit as the Mode and click Create.

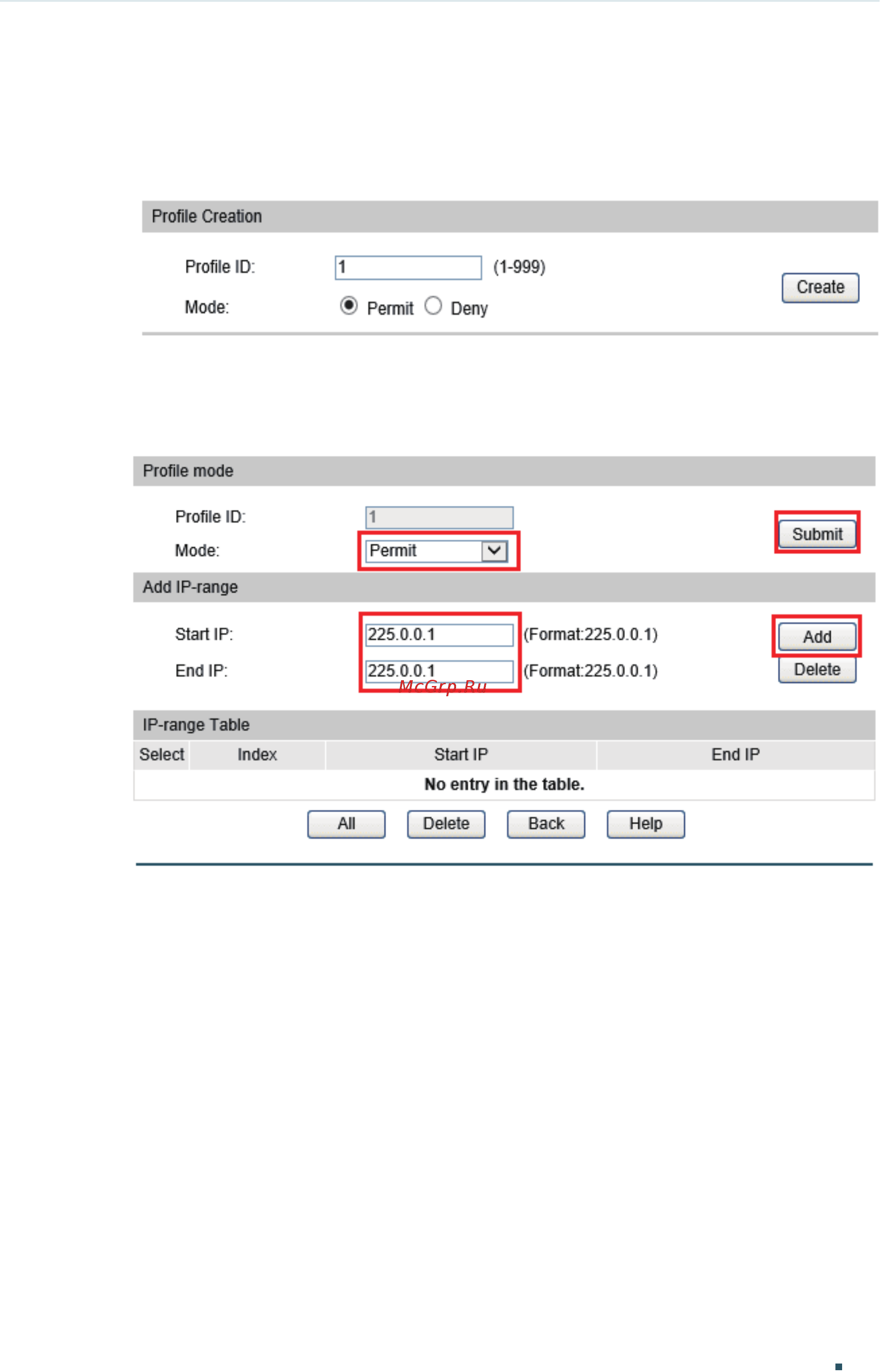

Figure 5-23 Create Profile 1
b. Choose the menu Multicast > IGMP Snooping > Profile Config to load the following
page.
Figure 5-24 Edit Add IP-range in Profile 1

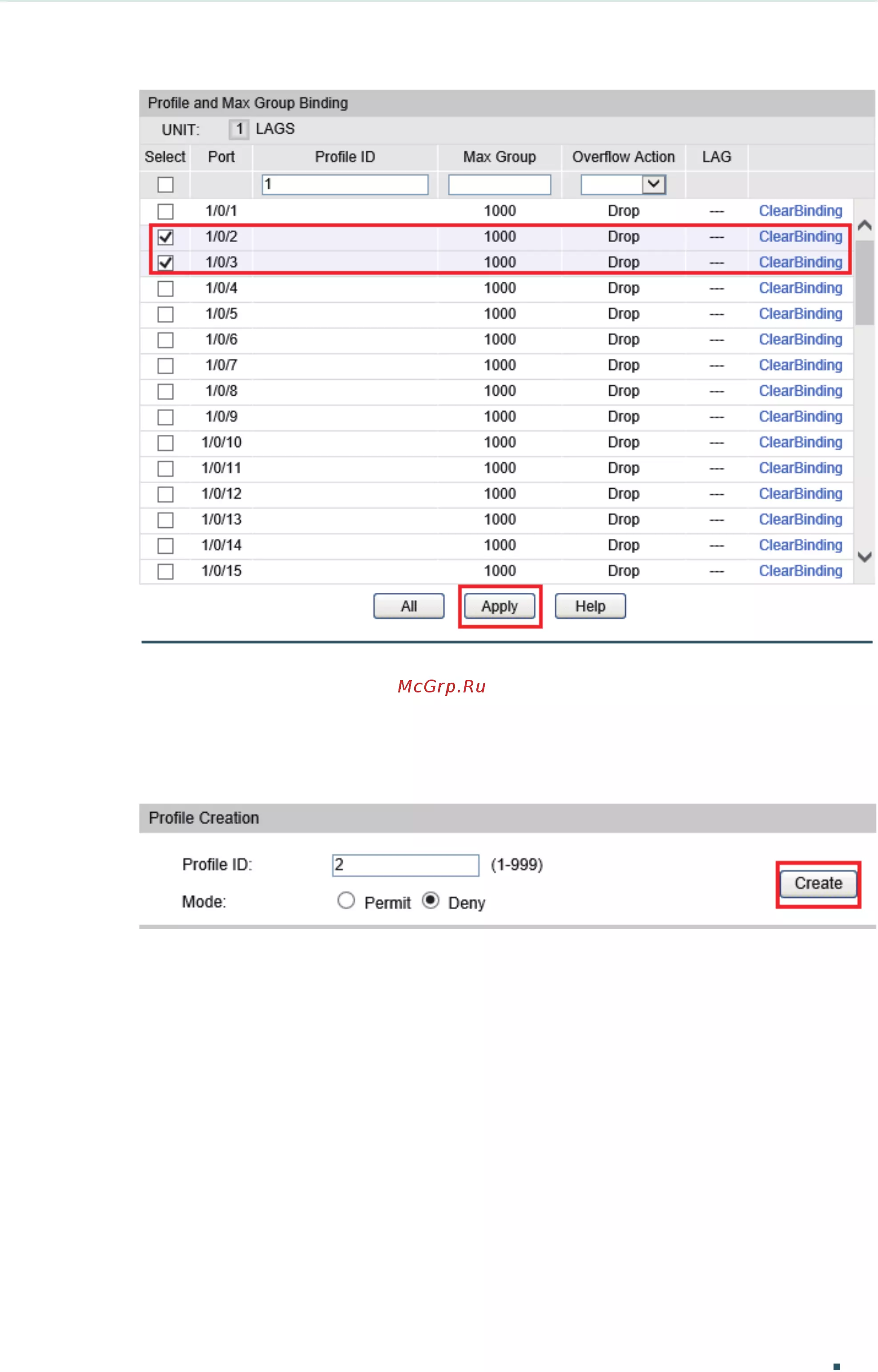

c. Choose the menu Multicast > IGMP Snooping > Profile Binding to load the
following page. Select port 1/0/2 and port 1/0/3, enter 1 in the Profile ID field and
click Apply to bind Profile 1 to these ports.
