![Tp-Link T1700G-28TQ V2 Руководство пользователя онлайн [410/772] 394694](/views2/1472751/page410/bg19a.png)
Configuring Layer 2 Multicast Configuration Examples
Configuration Guide
385

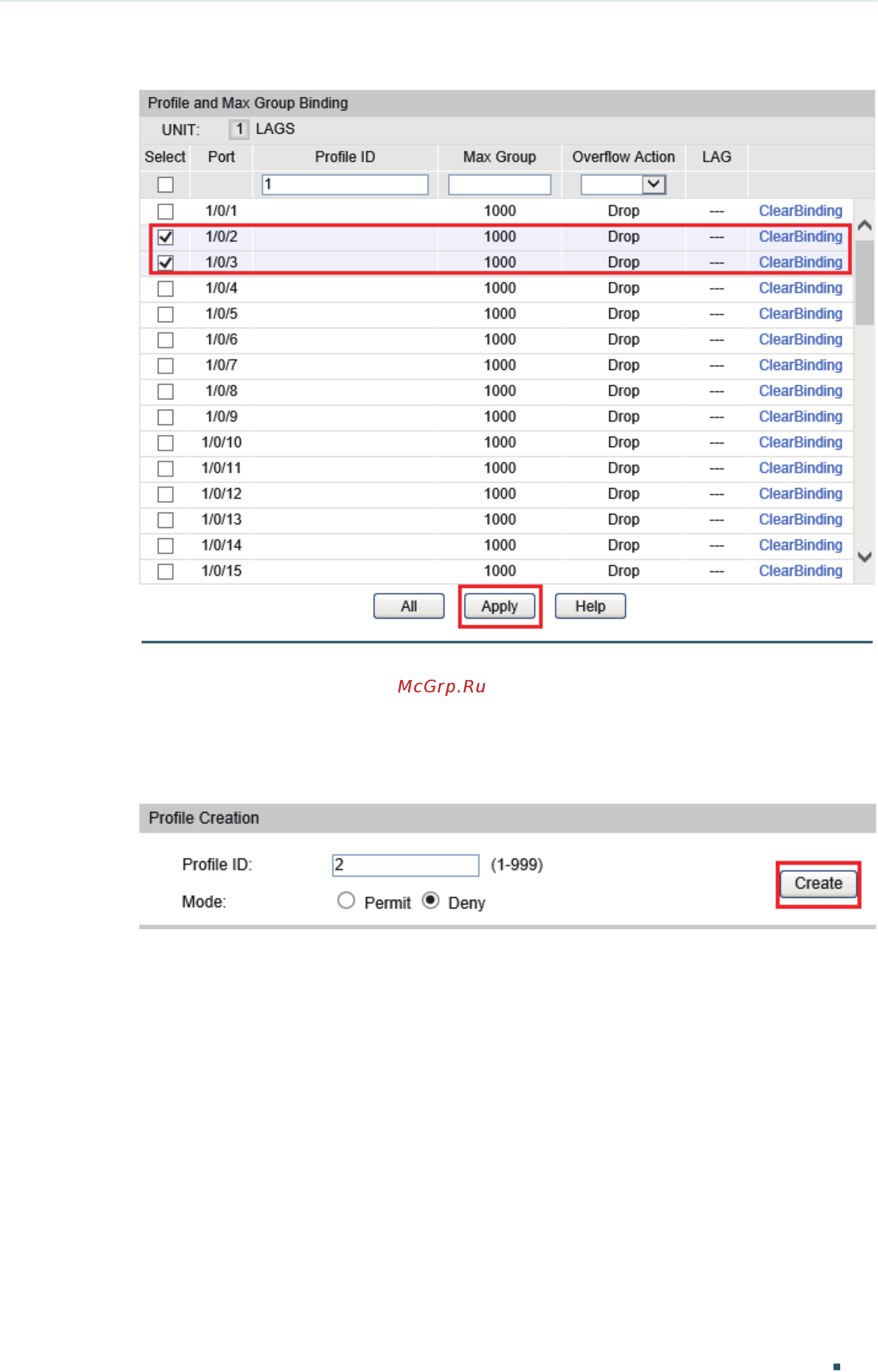

Figure 5-25 Bind Profile 1 to Port 1/0/2 and Port 1/0/3
7) Specify the multicast data that Host B can receive
a. Choose the menu Multicast > IGMP Snooping > Profile Config to load the following
page. Create Profile 2, select Deny as the Mode and click Create.
Figure 5-26 Profile 2
b. Choose the menu Multicast > IGMP Snooping > Profile Config to load the following
page. In the IGMP Profile Info table, click Edit in the Profile 2 entry, enter 225.0.0.2 in
both Start IP and End IP fields, and click Add.
