Configuration Guide 386
Configuring Layer 2 Multicast Configuration Examples

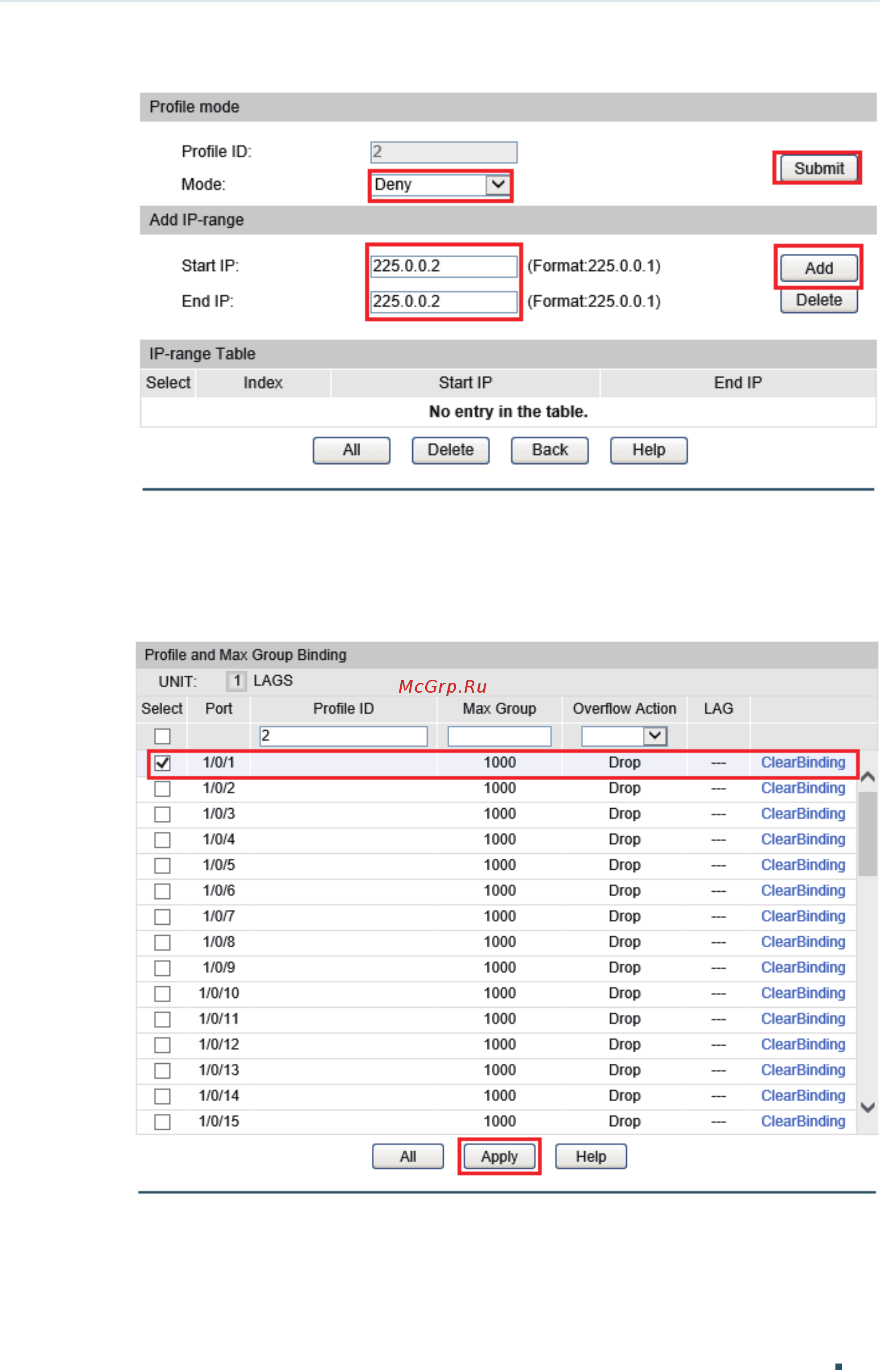

Figure 5-27 Edit Add IP-range in Profile 2
c. Choose the menu Multicast > IGMP Snooping > Profile Binding to load the
following page. Select port 1/0/1, enter 2 in the Profile ID field and click Apply to bind
Profile 2 to this port.
Figure 5-28 Bind Profile 2 to Port 1/0/1
8) Click Save Config to save the settings.
