Configuring Spanning Tree Configuration Example for MSTP
Configuration Guide
277

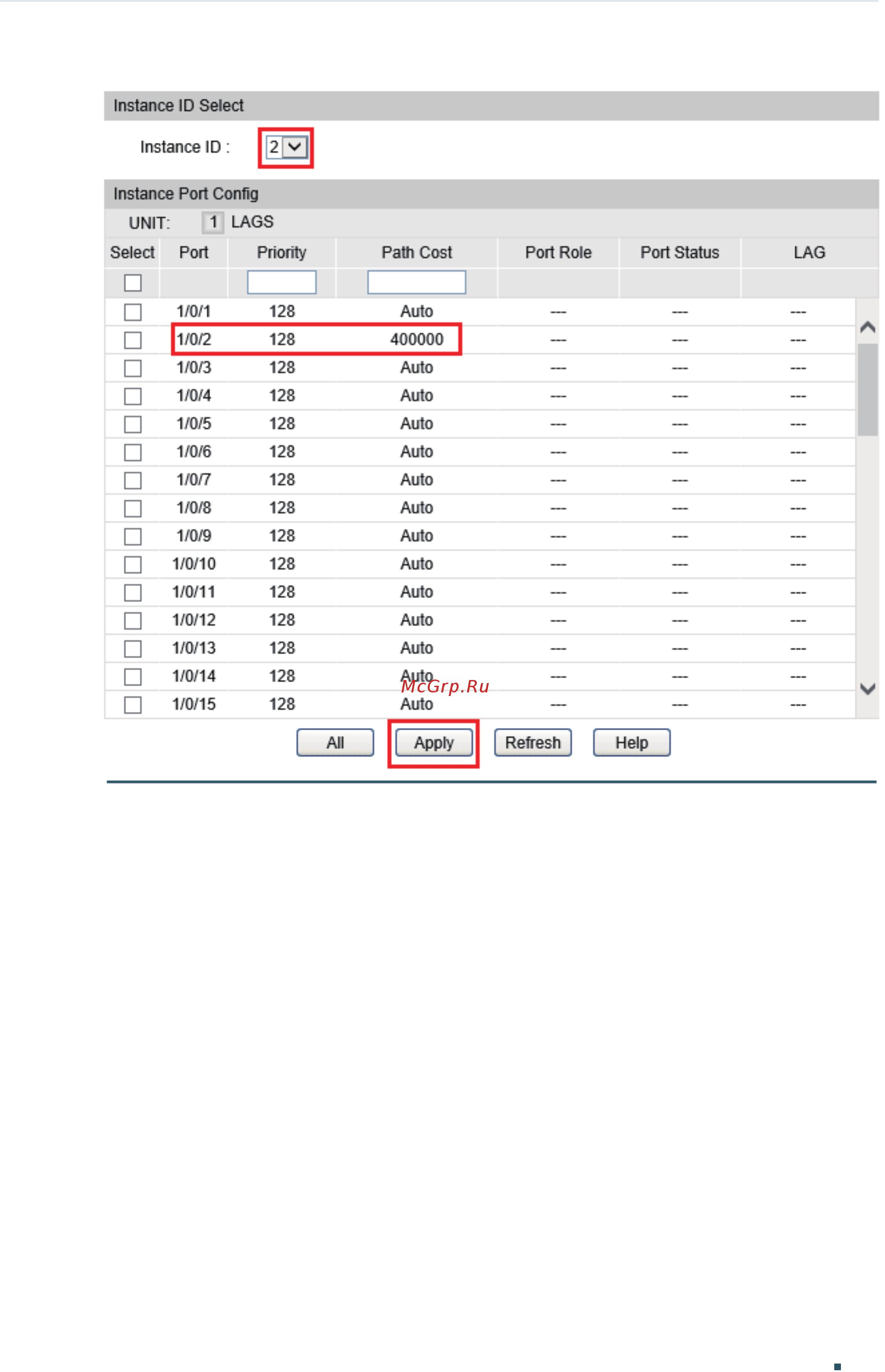

Figure 5-12 Configure the Path Cost of Port 1/0/2 in Instance 2
6) Choose the menu Spanning Tree > STP Config > STP Config to load the following
page. Enable MSTP function globally. Here we leave the values of the other global
parameters as default settings.
