Configuring Spanning Tree Configuration Example for MSTP
Configuration Guide
275

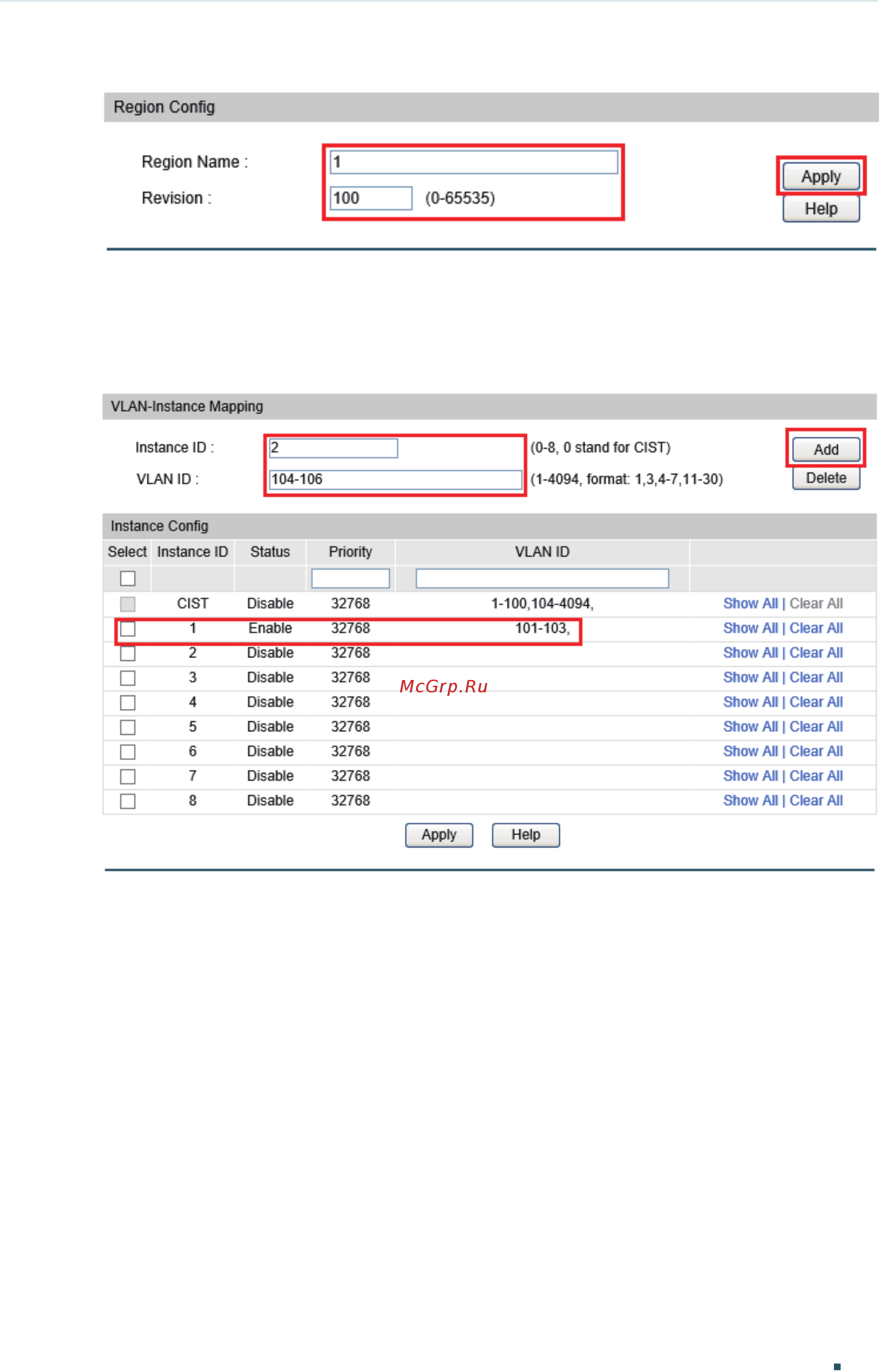

Figure 5-9 Configuring the Region
3) Choose the menu Spanning Tree > MSTP Instance > Instance Config to load the
following page. Map VLAN101-VLAN103 to instance 1; map VLAN104-VLAN106 to
instance 2.
Figure 5-10 Configuring the VLAN-Instance Mapping
4) Choose the menu Spanning Tree > MSTP Instance > Instance Config to load the
following page. Configure the priority of Switch B as 0 to set it as the root bridge in
instance 1.
