Configuration Guide 92
Configuring Stack Configuration Example

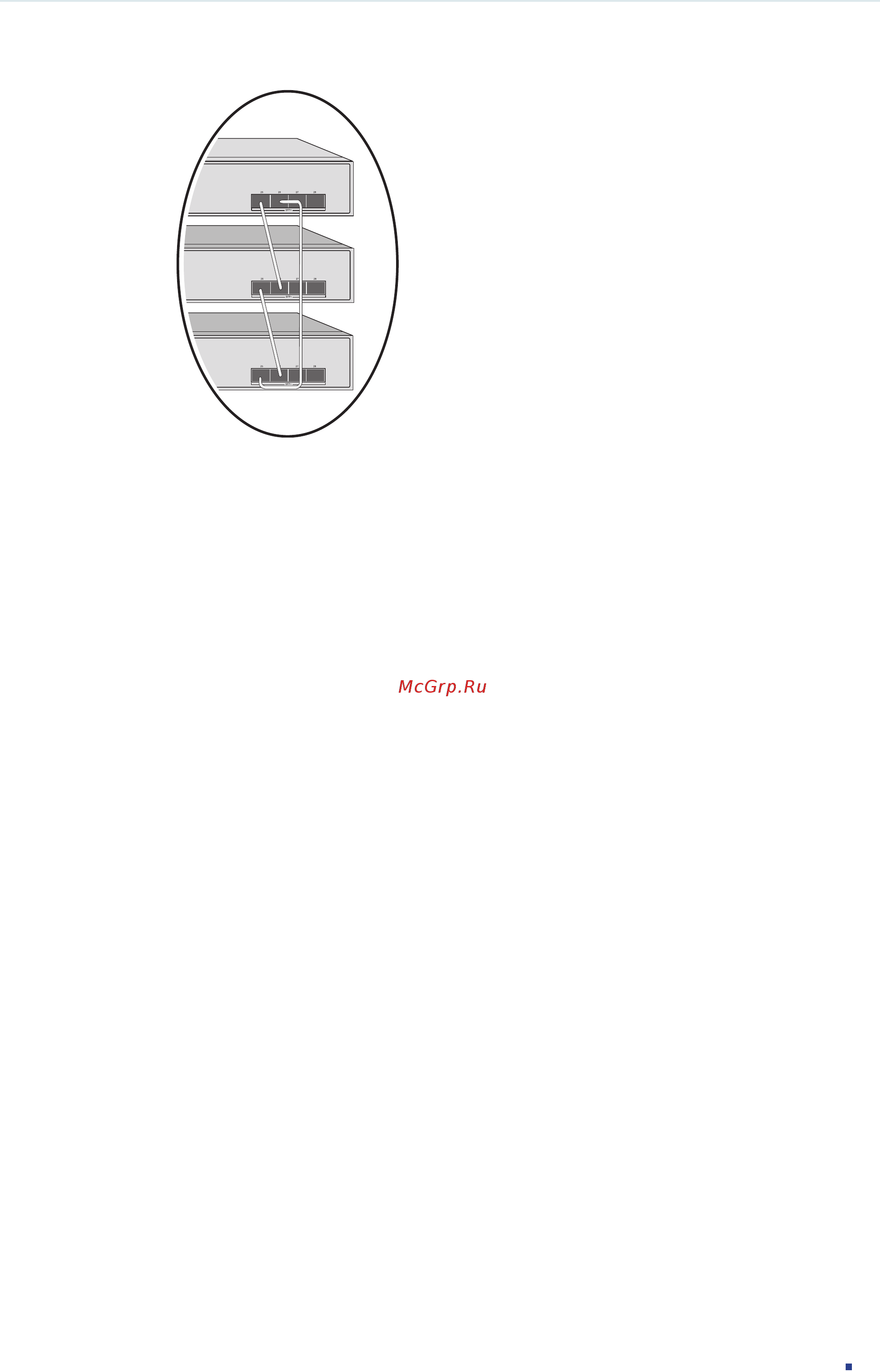

Figure 3-5 Ring Connection
4) Identify the unit to be the master. Power this unit up first.
5) If this unit has the default configuration, it will come up as unit1 (as displayed on the
Unit ID LED) and automatically becomes the master.
6) Power on the second switch. It will come up as a member switch. Its Unit ID LED on the
front panel will display 2.
7) Power on the third switch. It will come up as a member switch. Its Unit ID LED on the
front panel will display 3.
8) Log on to one of the switch to check the ring stack configurations.
Switch(config)#show switch detail
Switch# New ID Role Mac Address Priority Version Switch Type State
------- --------- ------ ----------------- -------- ------- ---------------- -----
* 1 AUTO Master 00:0A:EB:13:12:3E 5 2.0.0 T1700G-28TQRev2 Ready
2 AUTO Member 50:C7:BF:07:5F:0E 5 2.0.0 T1700G-28TQRev2 Ready
3 AUTO Member 00:0A:EB:13:12:91 5 2.0.0 T1700G-28TQRev2 Ready
Stack Port Group Status Neighbor
---------- ----- ------ --------
1/0/25 0 OK 2
1/0/26 0 OK 3
1/0/27 1 Ethernet None
1/0/28 1 Ethernet None
