Configuration Guide 94
Configuring Stack Configuration Example

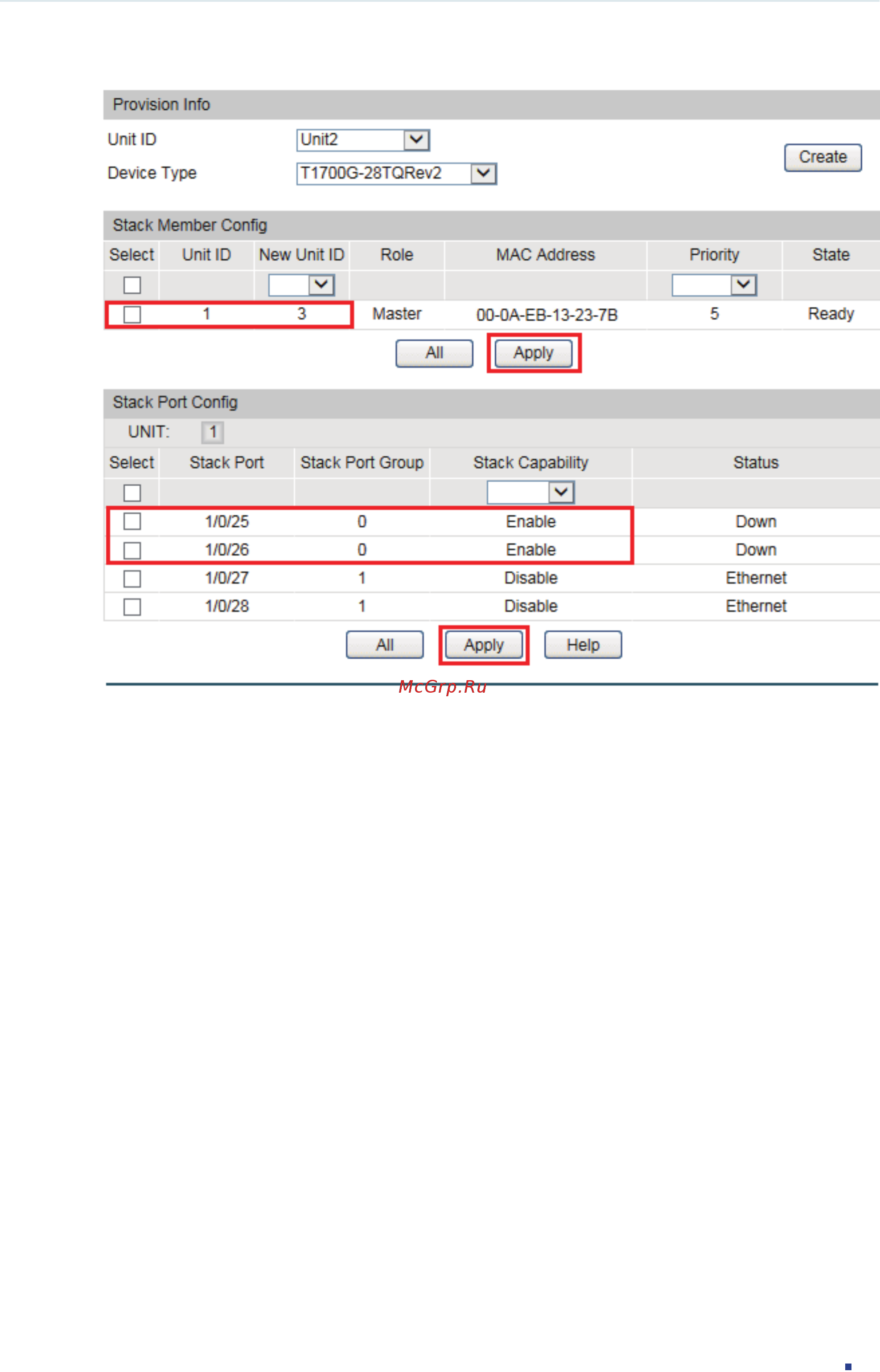

Figure 3-6 Configure the New Switch
2) Save the settings and power off the new switch.
3) Power off the failed member, replace it with the new switch.
4) Connect the new switch’s port 1/0/26 to switch B’s 1/0/25, and 1/0/25 to switch A’s
1/0/26.
5) Power on the new switch. After the new stack is established, log in to the stack to view
the detailed running status.
