Managing Physical Interfaces Configuration Examples

Configuration Guide

121

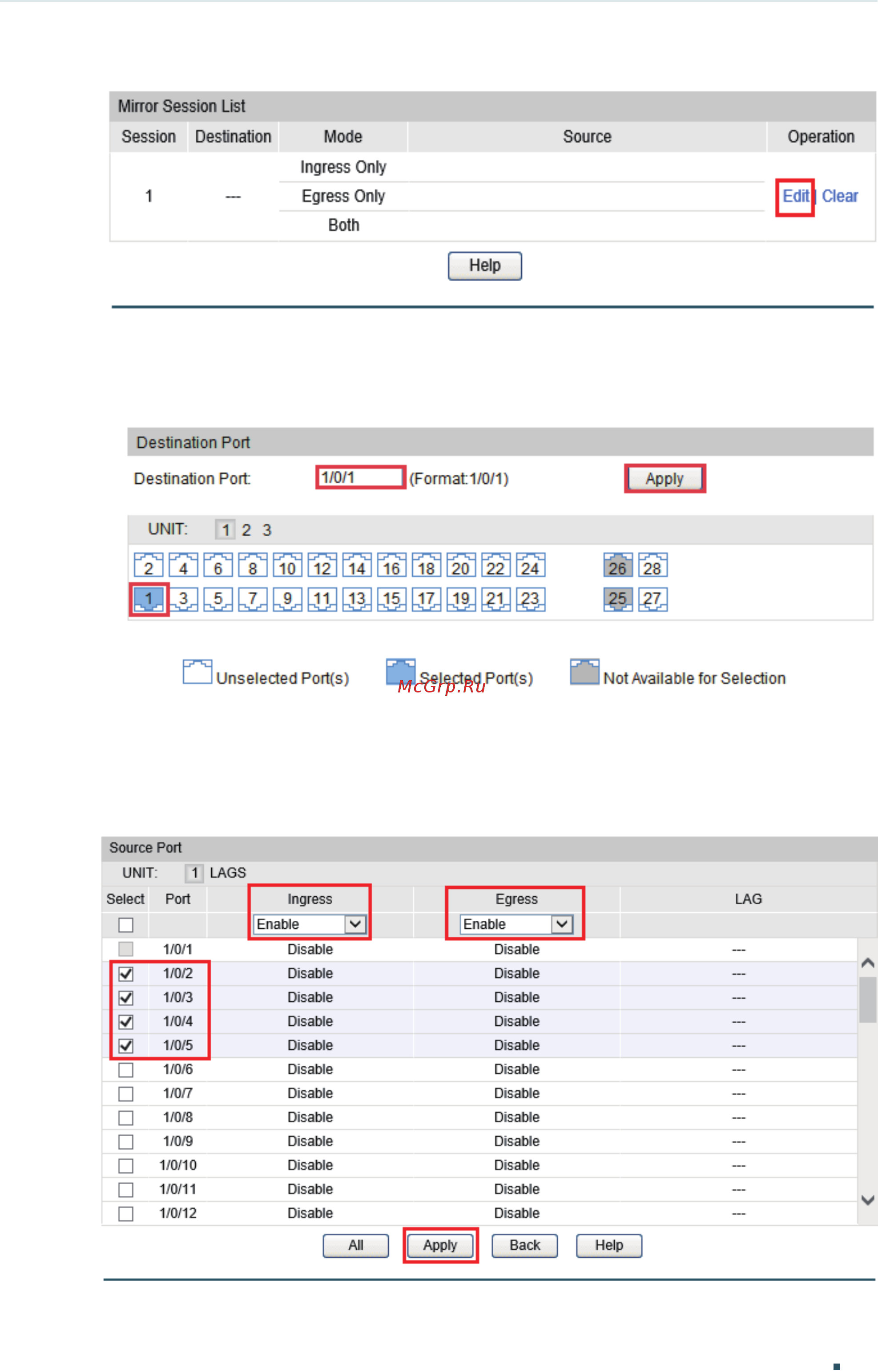

Figure 7-2 Mirror Session List

2) Click Edit on the above page to load the following page. In the Destination Port section,

select port 1/0/1 as the monitoring port and click Apply.

Figure 7-3 Destination Port Configuration

3) In the Source Port section, select ports 1/0/2-5 as the monitored ports, and enable

Ingress and Egress to allow the received and sent packets to be copied to the

monitoring port. Then click Apply.

Figure 7-4 Source Port Configuration

4) Click Save Config to save the settings.
