Configuration Guide 248
Configuring Spanning Tree MSTP Configurations
Configuring Parameters on Ports in the Instance
Choose the menu Spanning Tree > MSTP Instance > Instance Port Config to load the
following page.

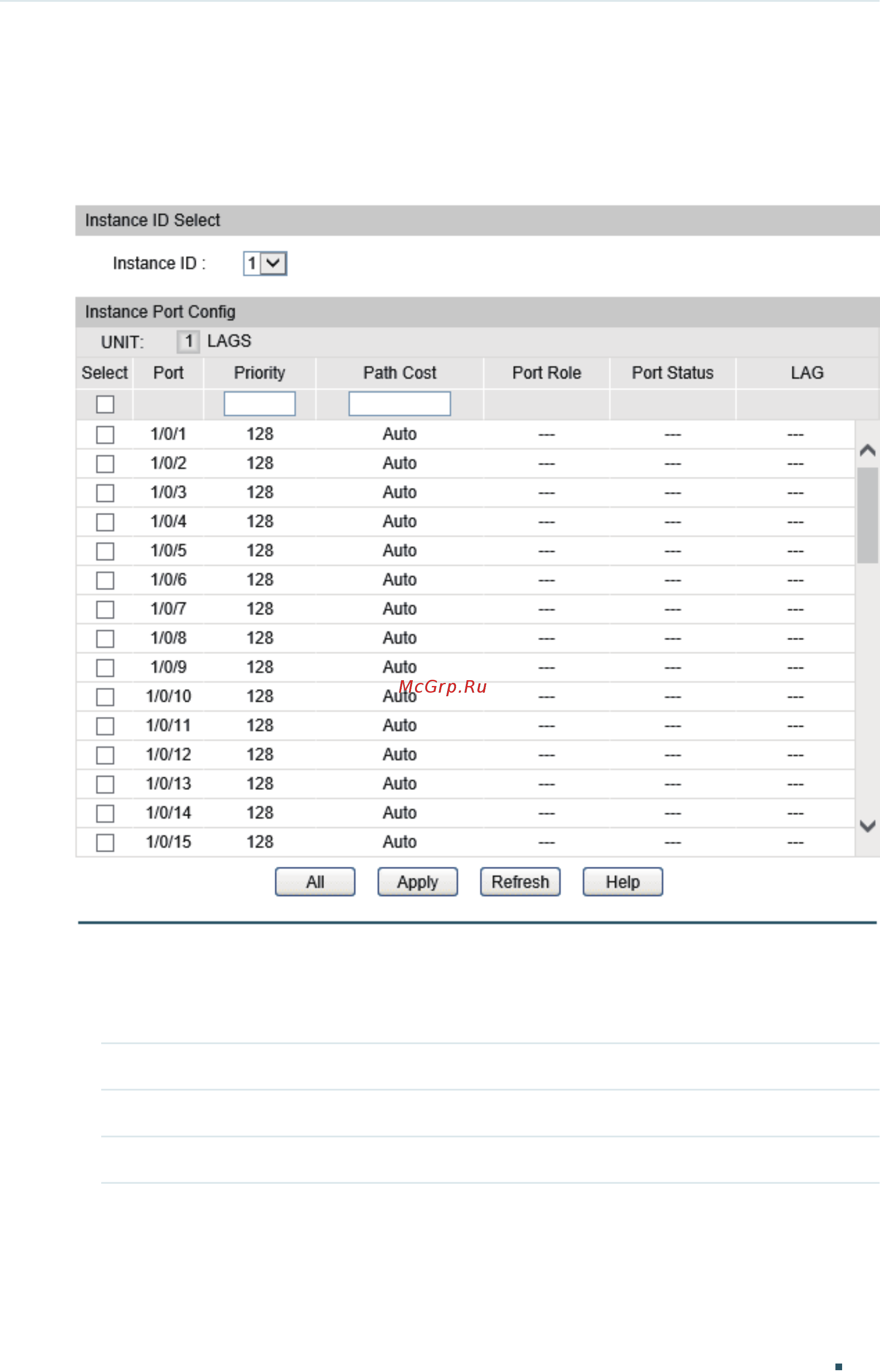

Figure 3-4 Configuring Port Parameters in the Instance
Follow these steps to configure port parameters in the instance:
1) In the Instance ID Select section, select the desired instance ID for its port
configuration.
Instance ID Select the desired instance.
2) In the Instance Port Config section, configure port parameters in the desired instance.
UNIT Select the desired unit or LAGs for configuration.
