Configuring Spanning Tree Configuration Example for MSTP
Configuration Guide
273

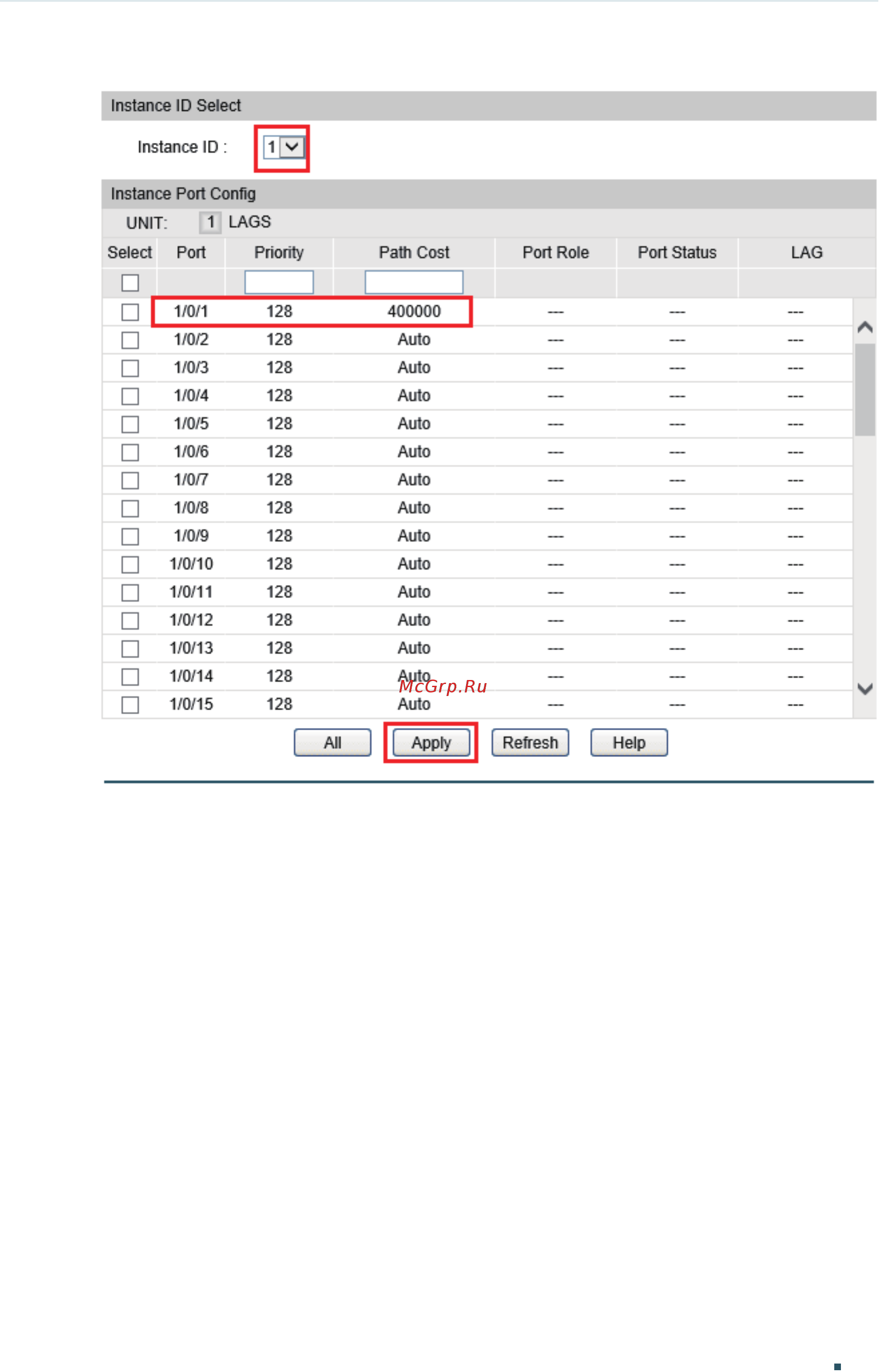

Figure 5-6 Configure the Path Cost of Port 1/0/1 In Instance 1

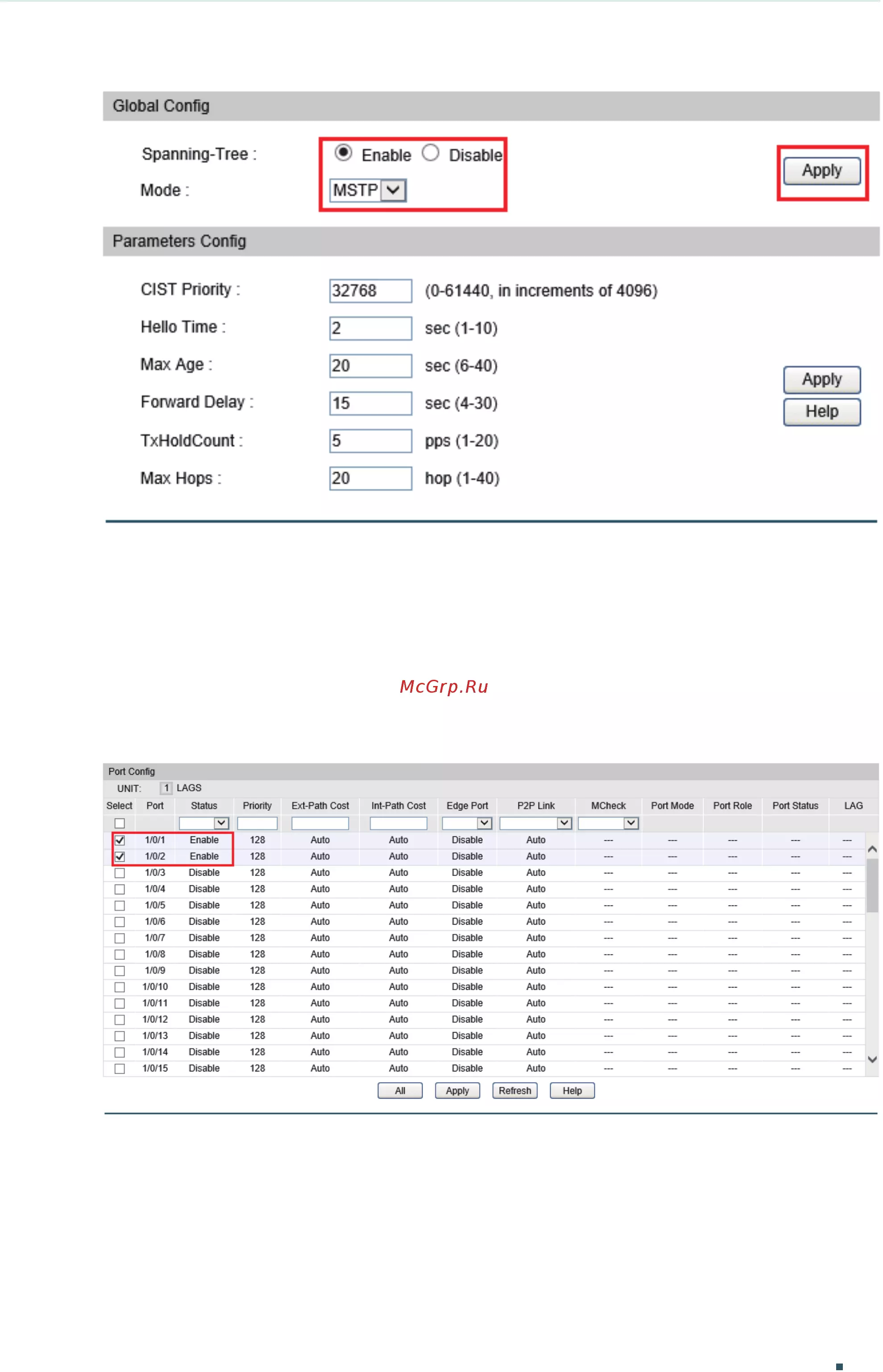

5) Choose the menu Spanning Tree > STP Config > STP Config to load the following
page. Enable MSTP function globally, here we leave the values of the other global
parameters as default settings.
