Configuring Layer 2 Multicast Configuration Examples
Configuration Guide
377

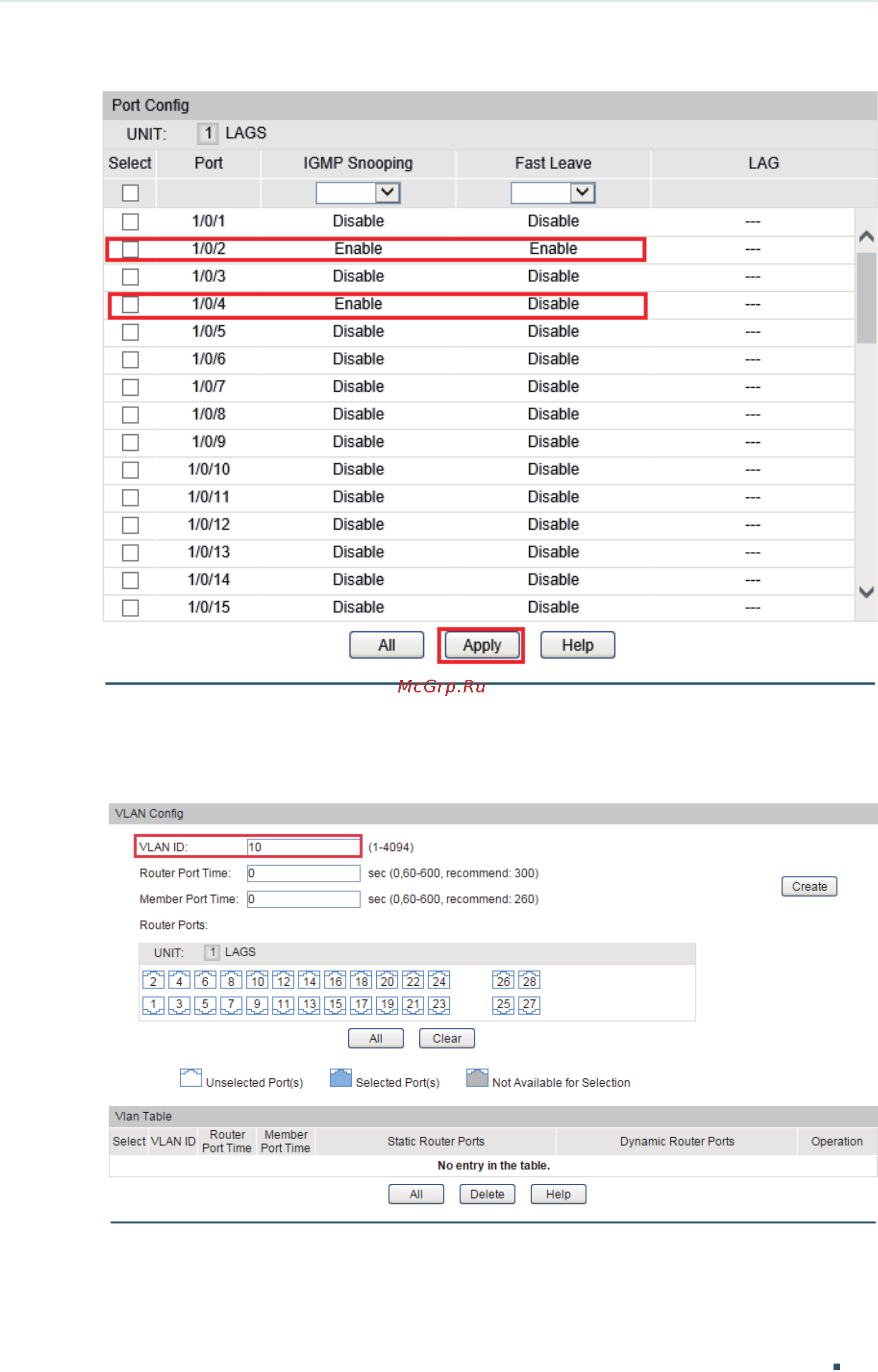

Figure 5-15 Configure IGMP Snooping Globally
3) Choose the menu Multicast > IGMP Snooping > VLAN Config to load the following
page. Enable IGMP Snooping in VLAN 10.
Figure 5-16 Enable IGMP Snooping in the VLAN
4) Click Save Config to save the settings.
