Configuration Guide 474
Configuring QoS Configuration Examples

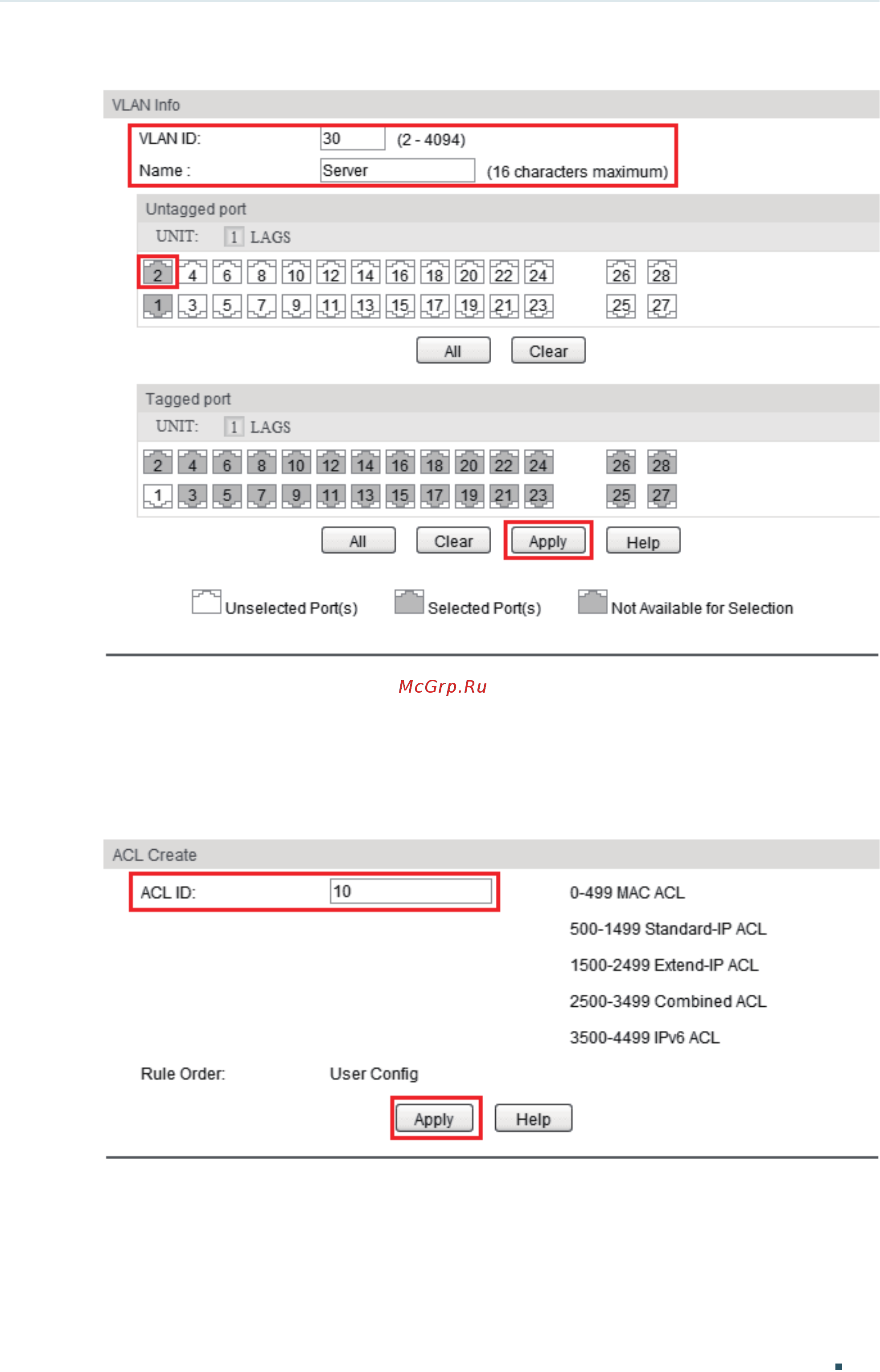

Figure 4-11 Configure VLAN30
3) Create MAC ACL 10 with its Rule ID as 1 and Operation as Permit.
Choose ACL> ACL Config > ACL Create to load the following page. Create ACL 10, and
click Apply.
Figure 4-12 Create MAC ACL 10
Choose ACL> ACL Config > MAC ACL to load the following page. Select ACL 10,
specify the Rule ID as 1 and the Operation as Permit. Click Apply.
