Configuring QoS Configuration Examples
Configuration Guide
477

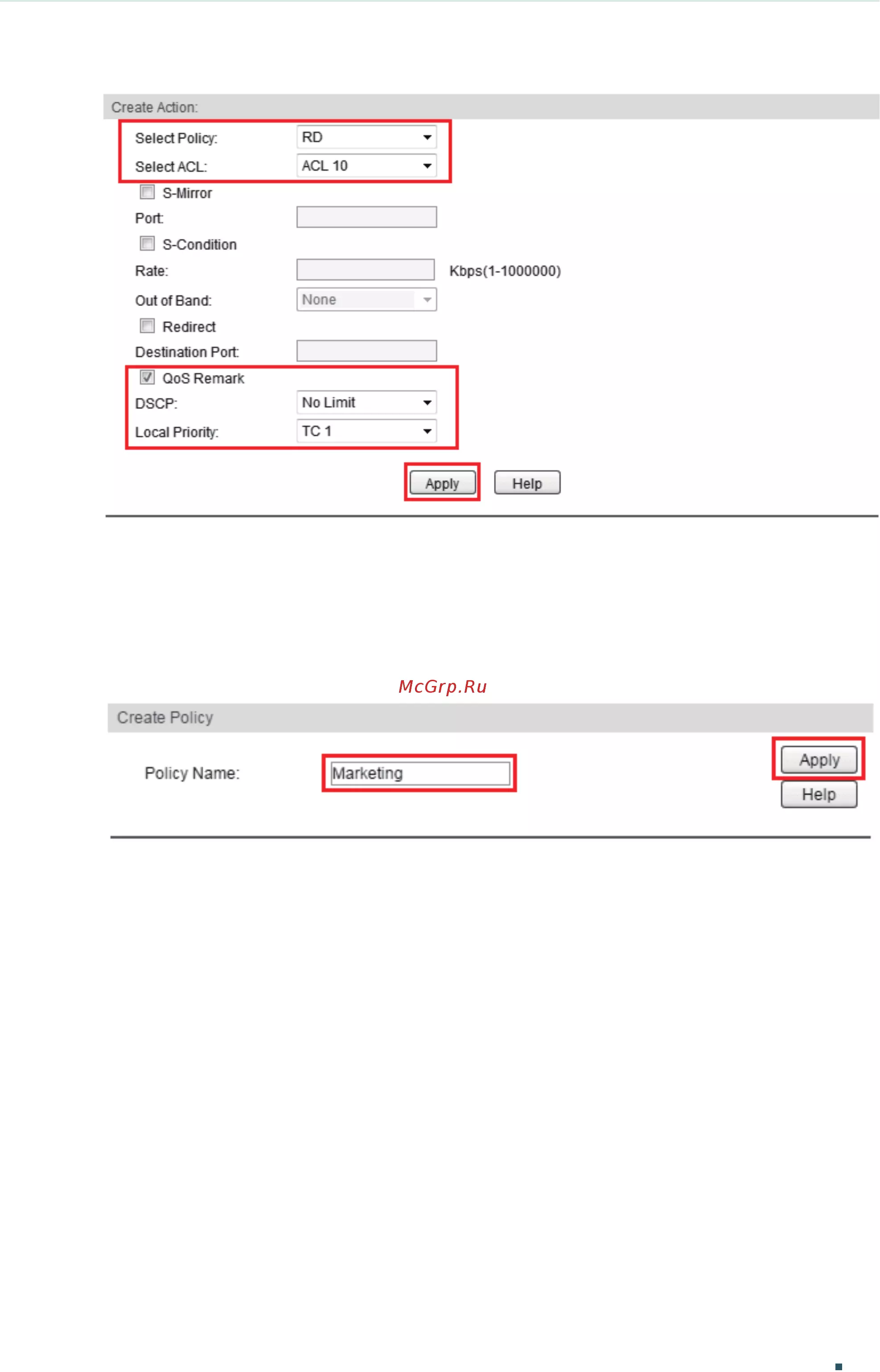

Figure 4-17 Action Create
6) Choose ACL > Policy Binding > VLAN Binding. Bind Policy RD and Policy Marketing to
VLAN10 and VLAN 20 respectively.

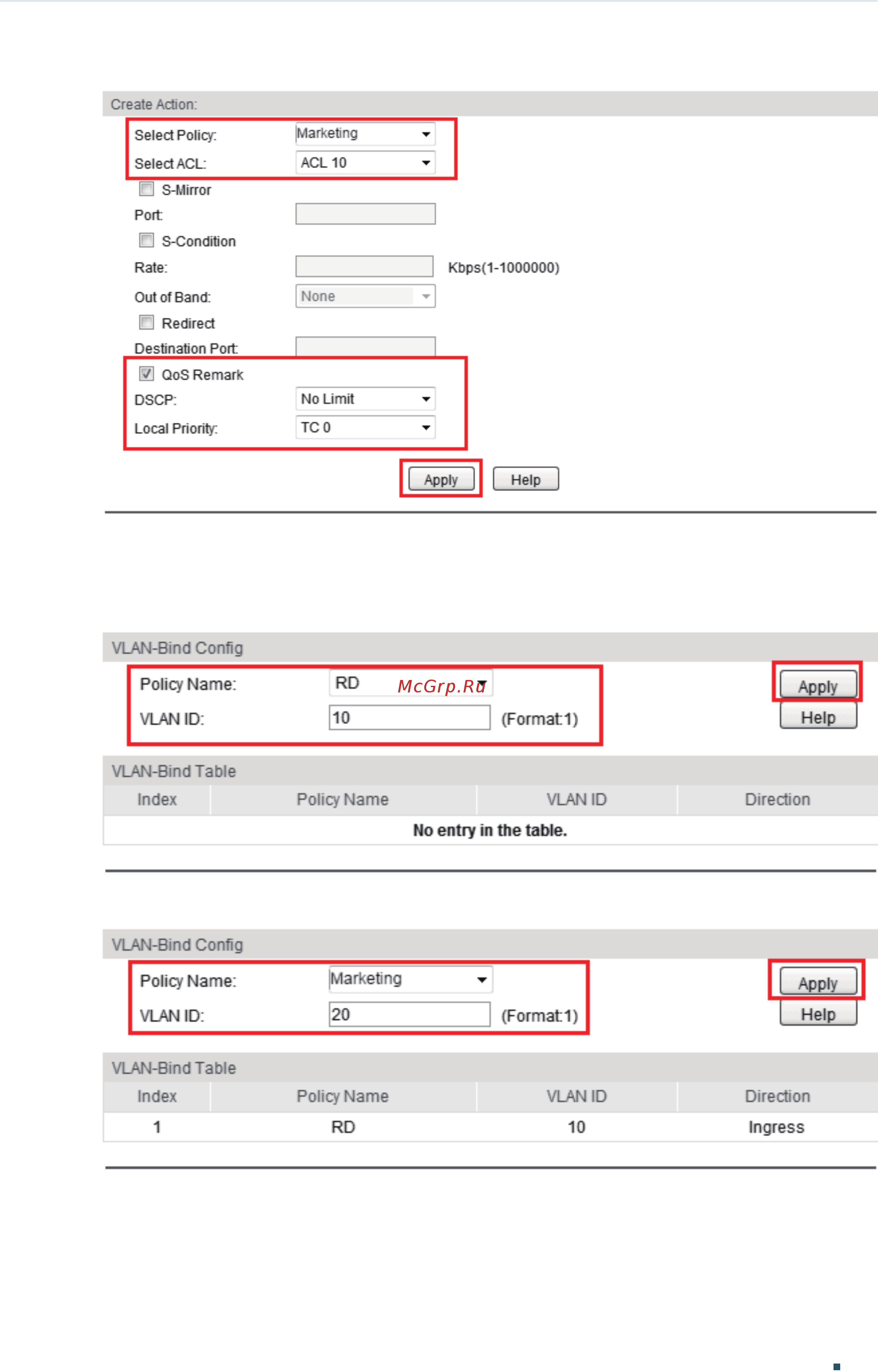

Figure 4-18 Bind Policy RD to VLAN 10
Figure 4-19 Bind Policy Marketing to VLAN 20
7) Choose QoS > DiffServ > Schedule Mode. Select WRR-Mode as the schedule mode,
and click Apply. No configuration is required here because queues based on ACL rules
have higher priority.
