![Tp-Link T1700G-28TQ V2 Руководство пользователя онлайн [643/772] 394694](/views2/1472751/page643/bg283.png)
Configuration Guide 618
Configuring Network Security Configuration Examples
6) Choose the menu Network Security > 802.1X Authentication > Global Config to load
the following page. Enable 802.1X authentication and configure the Authentication
Method as EAP. Enable the Quiet feature and then keep the default authentication
settings.

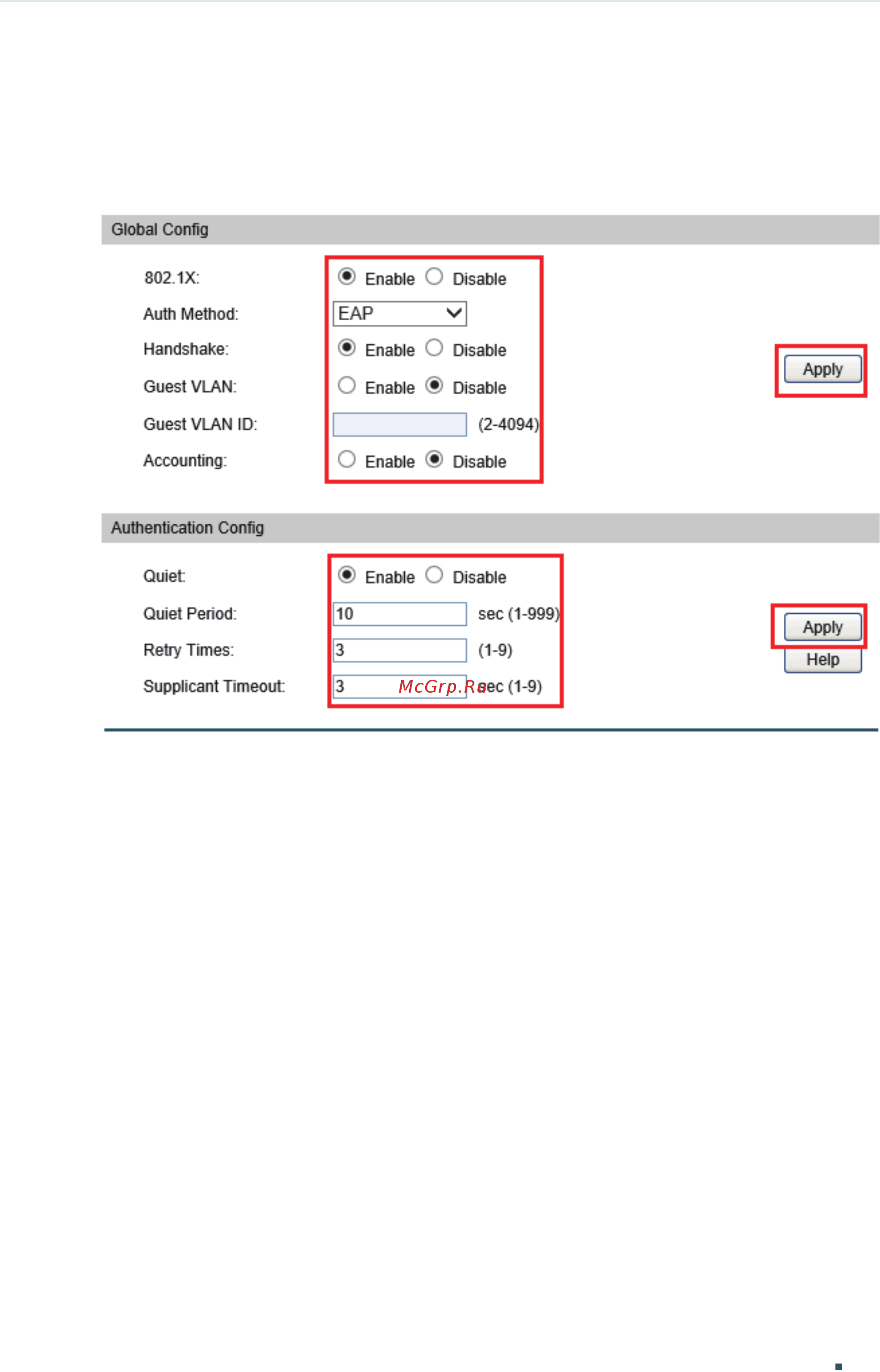

Figure 8-14 Global Config
7) Choose the menu Network Security > 802.1X Authentication > Port Config to load
the following page. For port 1/0/1, enable 802.1X authentication, set the Control Mode
as auto and set the Control Type as MAC Based; For port 1/0/2 and port 1/0/3, disable
802.1X authentication.
