Configuring Network Security Configuration Examples
Configuration Guide
623

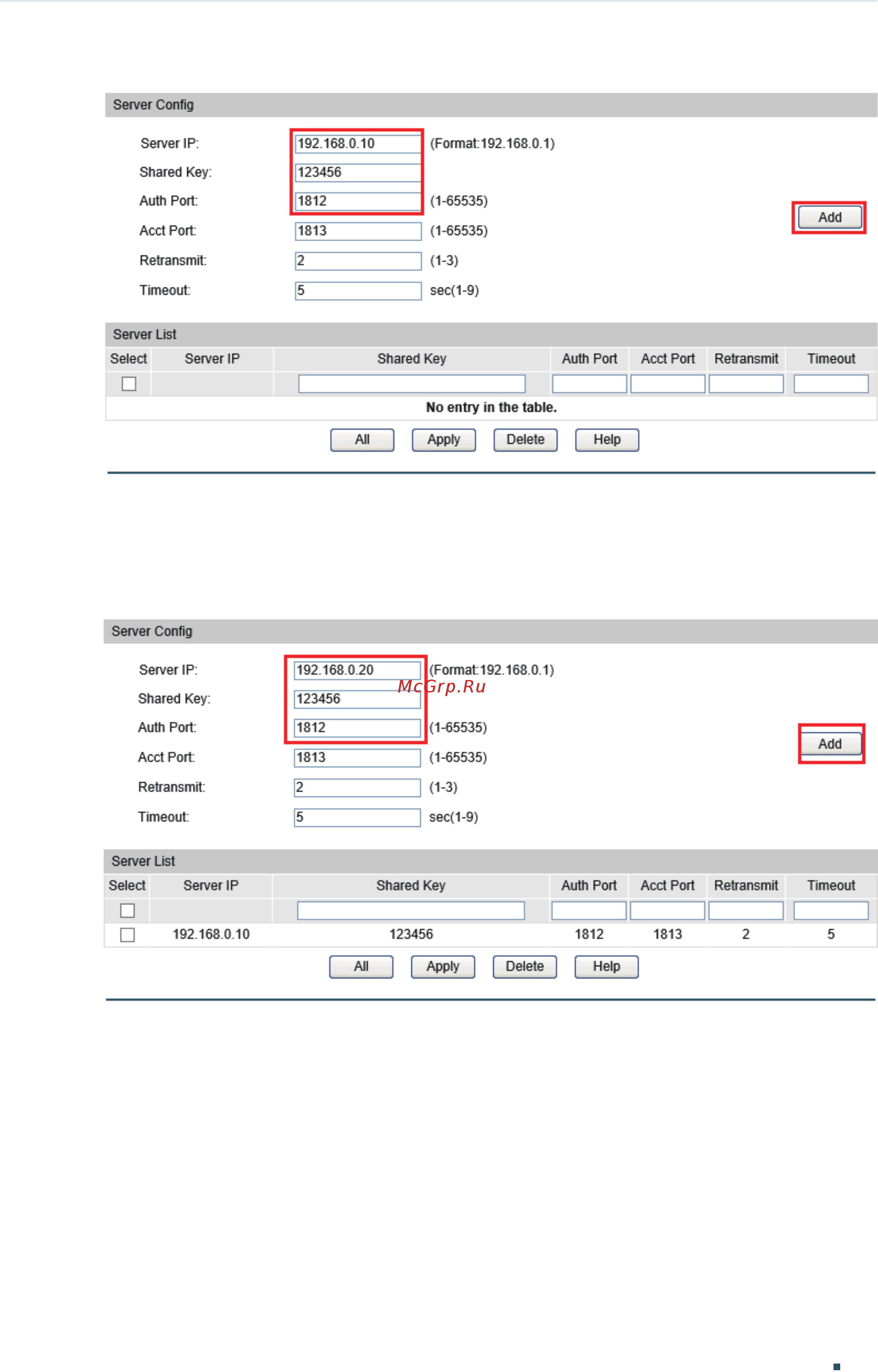

Figure 8-18 Add RADIUS Server 1
3) On the same page, configure the Server IP as 192.168.0.20, the Shared Key as 123456,
the Auth Port as 1812, and keep the other parameters as default. Click Add to add
RADIUS Server 2 on the switch.
Figure 8-19 Add RADIUS Server 2
4) Choose the menu Network Security > AAA > Server Group to load the following page.
In the Add New Server Group section, specify the group name as RADIUS1 and the
server type as RADIUS. Click Add to create the server group.
