Configuring LLDP Configuration Example
Configuration Guide
667

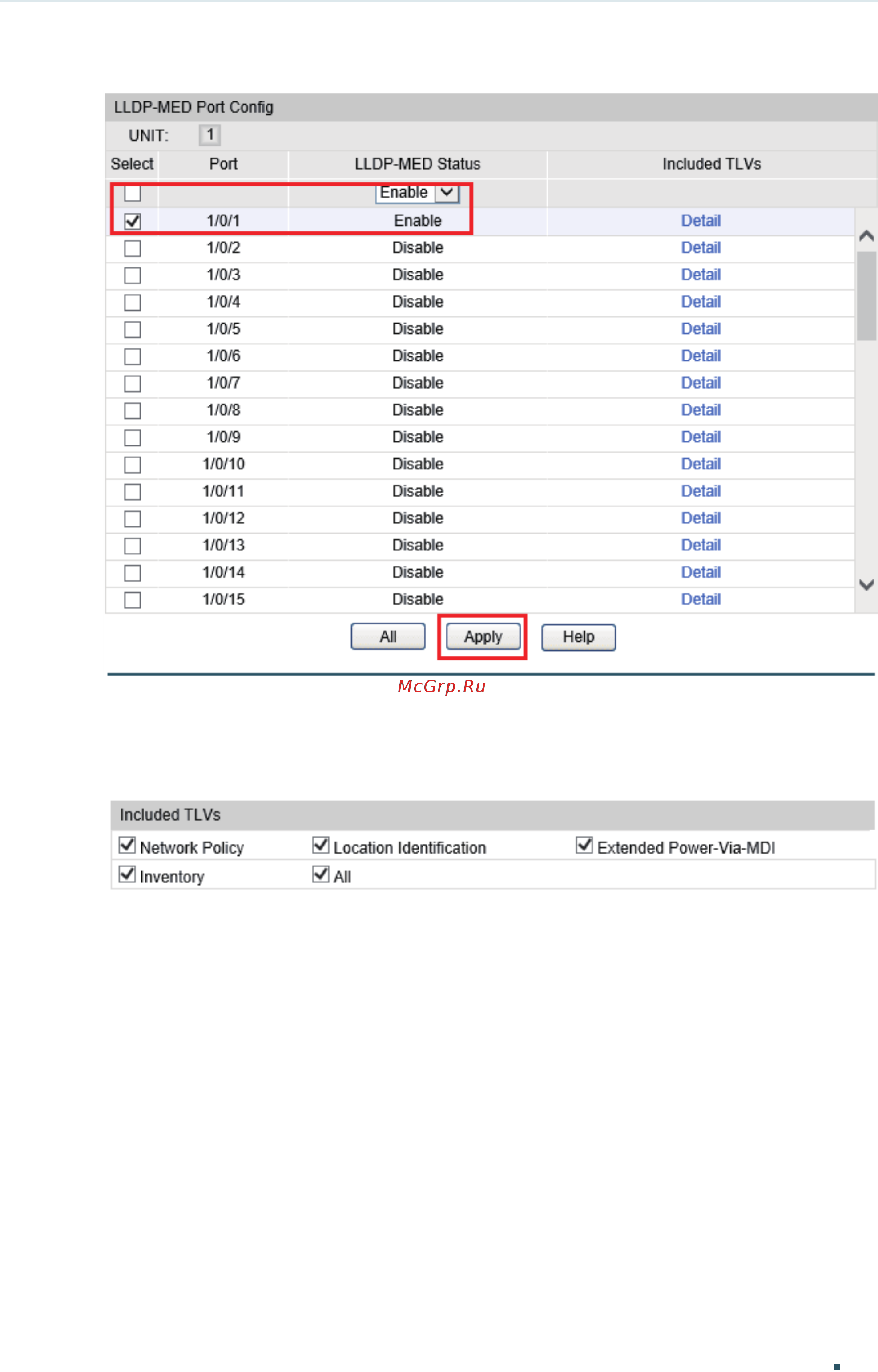

Figure 6-12 LLDP-MED Port Config
Click Detail in the Port 1/0/1 entry to configure TLVs included in the outgoing LLDP-
MED packets.
Figure 6-13 LLDP-MED Port Config-Detail
In the Location Identification Parameters section, configure the detailed address of the
IP phone. Click Apply.
