Configuring Protocol VLAN Configuration Example
Configuration Guide
215

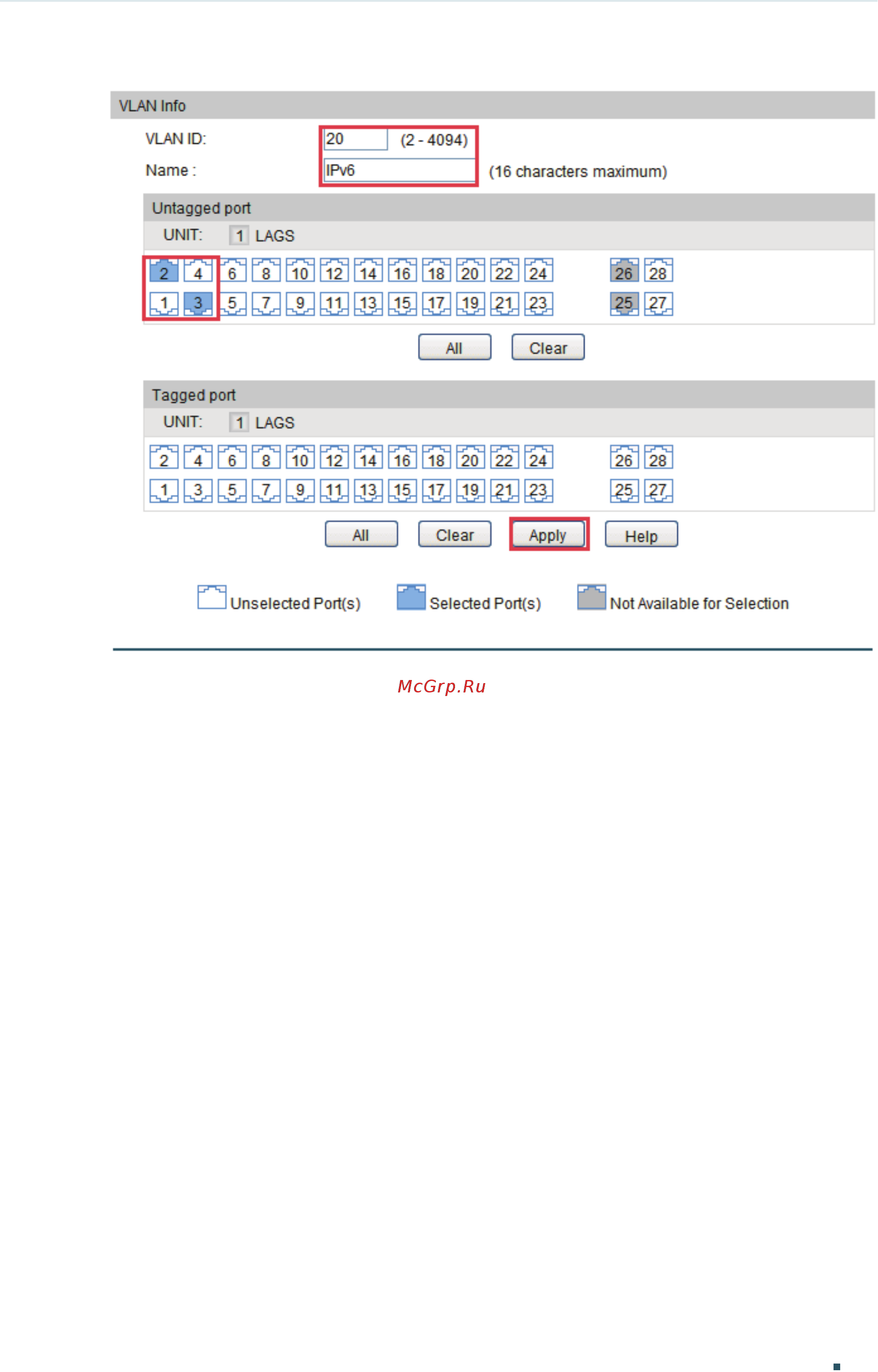

Figure 3-3 Create VLAN 20
3) Click Save Config to save the settings.
Configurations for Switch 2

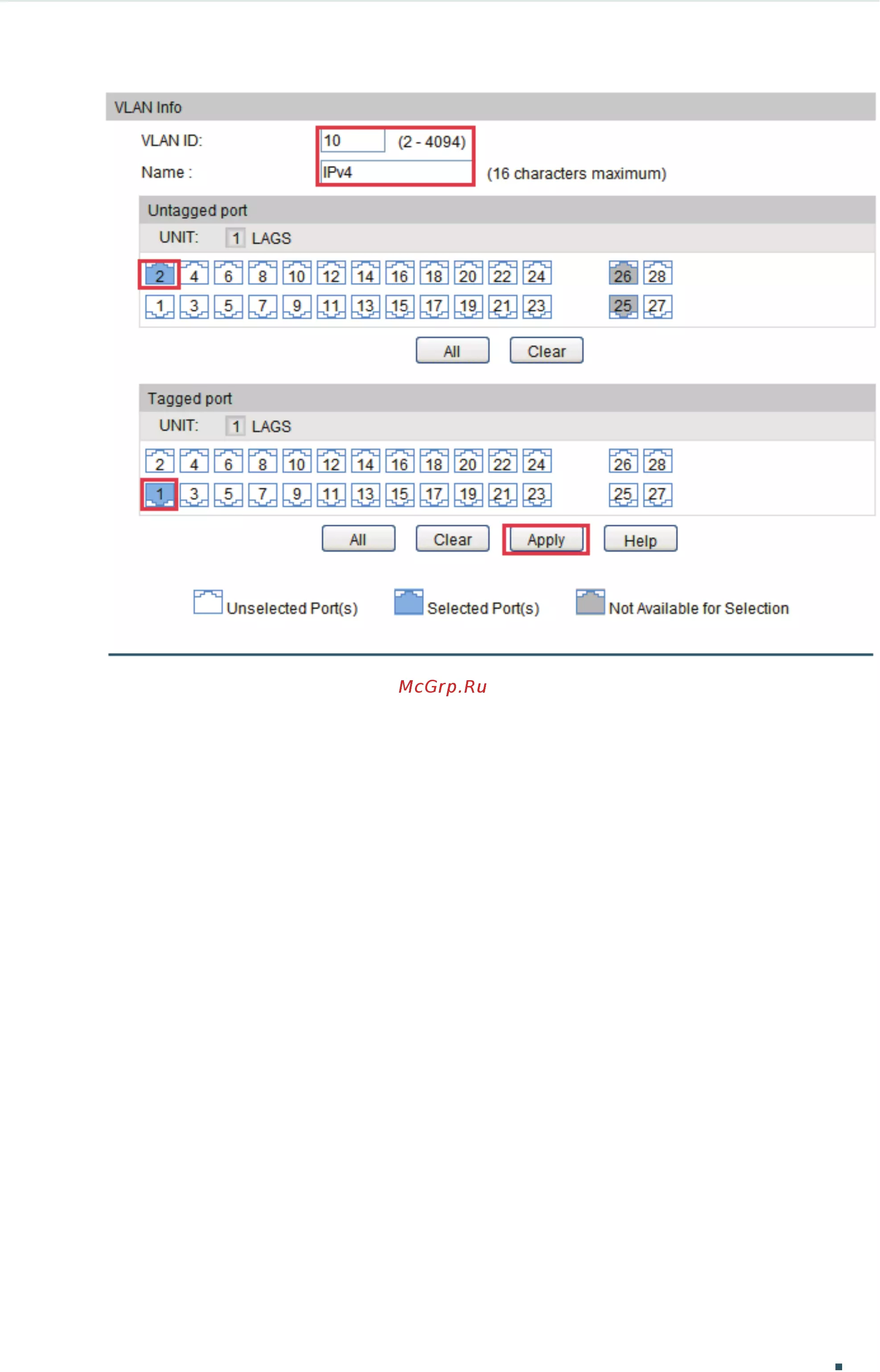

1) Choose the menu VLAN > 802.1Q VLAN > VLAN Config and click Create to load the
following page. Create VLAN 10, and add port 1/0/1 as tagged port and port 1/0/2 as
untagged port to VLAN 10. Click Apply.
