Configuration Guide 218
Configuring Protocol VLAN Configuration Example
4) Choose the menu VLAN > Protocol VLAN > Protocol Group to load the following page.
Select the IP protocol name (that is the IPv4 protocol template), enter VLAN ID 10,
select port 1, and click Apply. Select the IPv6 protocol name, enter VLAN ID 20, select
port 1, and click Apply.

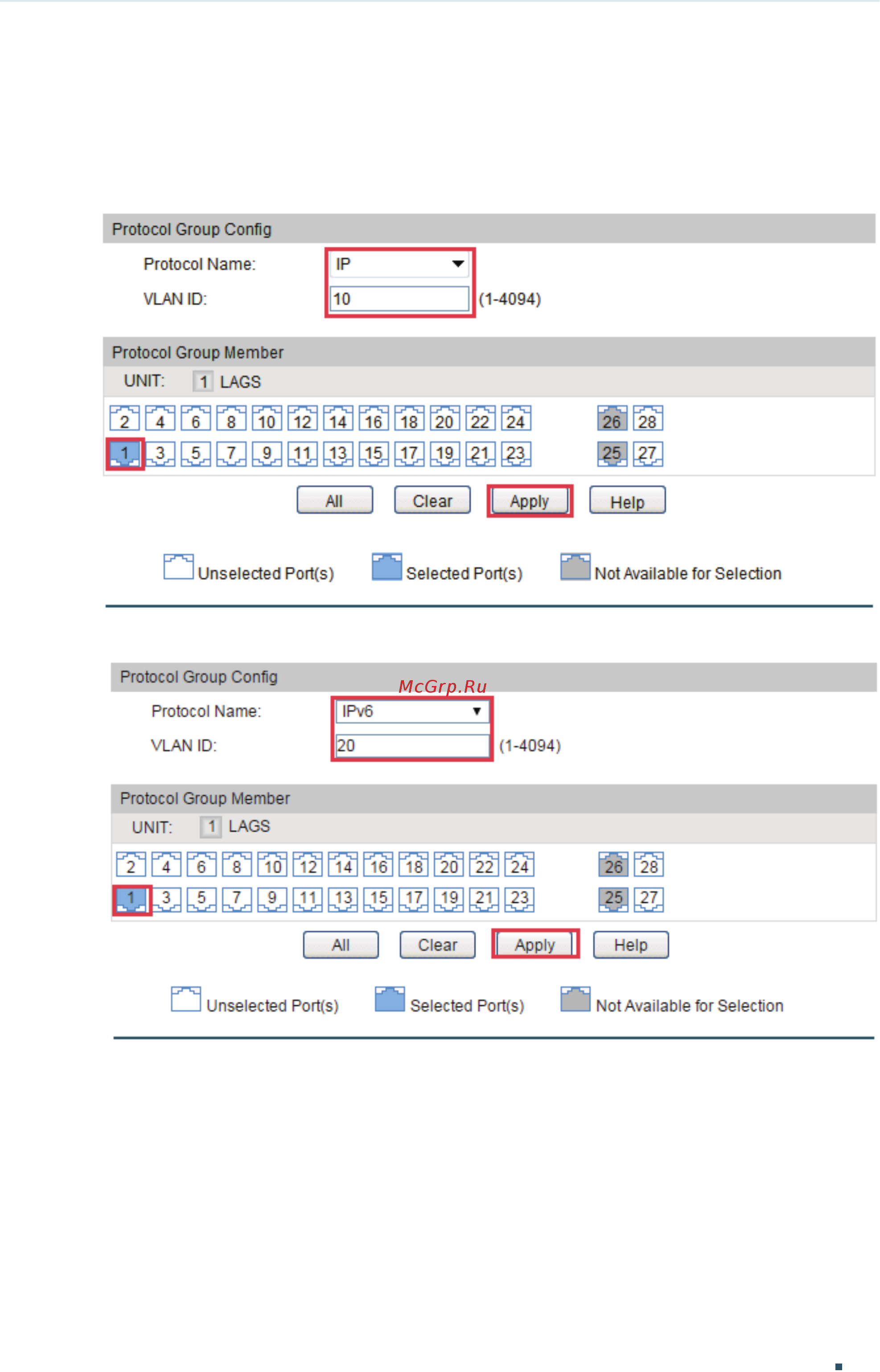

Figure 3-7 Configure the IPv4 Protocol Group
Figure 3-8 Configure the IPv6 Protocol Group
5) Choose the menu VLAN > Protocol VLAN > Protocol Group Table to load the following
page. Here you can view the protocol VLAN configuration.
