Configuring Protocol VLAN Configuration Example
Configuration Guide
217

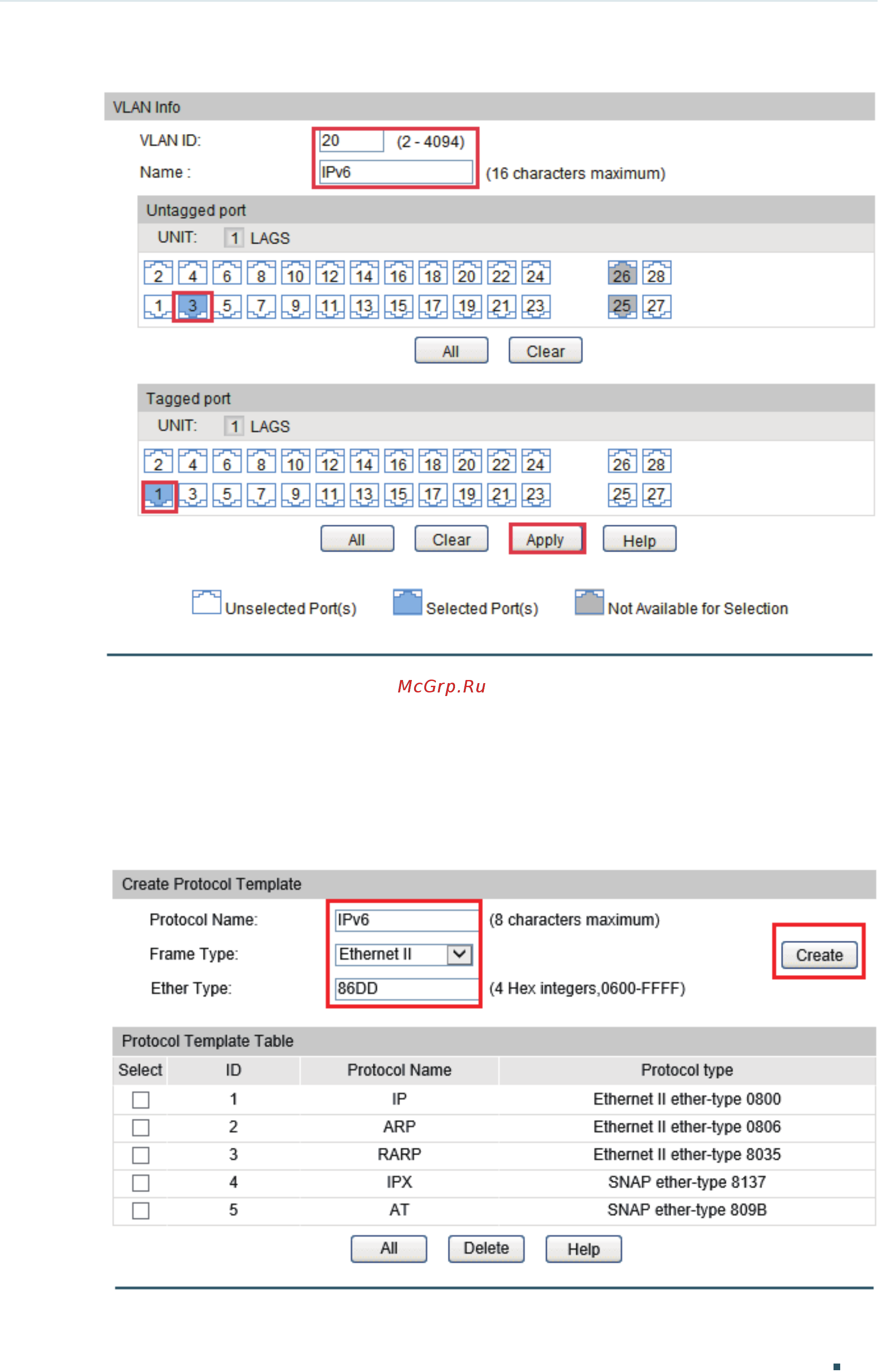

Figure 3-5 Create VLAN 20
3) Choose the menu VLAN > Protocol VLAN > Protocol Template to load the following
page. Enter IPv6 in the protocol name, select the Ethernet II frame type, enter 86DD in
the Ether Type field, and click Create to create the IPv6 protocol template.
Tips:
The IPv4 protocol template is already provided by the switch, you only need to
create the IPv6 protocol template.
Figure 3-6 Create the IPv6 Protocol Template
