Configuring QoS Configuration Examples
Configuration Guide
471

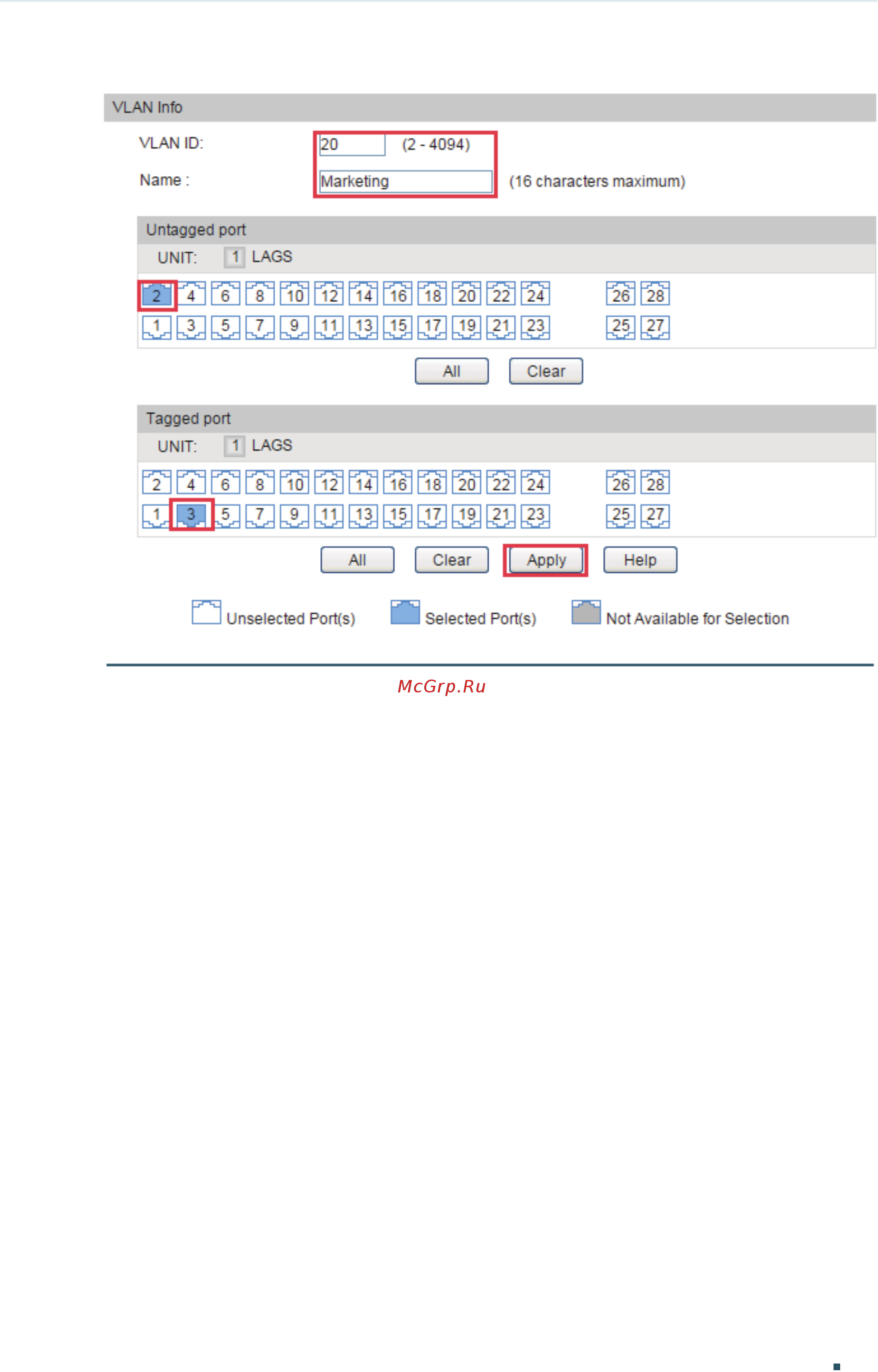

Figure 4-7 Configure VLAN 20
3) Click save config to save the settings.
Configurations for Switch B (Demonstrated with T3700G-28TQ)
1) Choose VLAN > 802.1Q VLAN > Port Config to load the following page. For port 1/0/1,
set the Link Type as TRUNK, and for port 1/0/2, set the Link Type as ACCESS. Click
Apply.
