Configuration Guide 472
Configuring QoS Configuration Examples

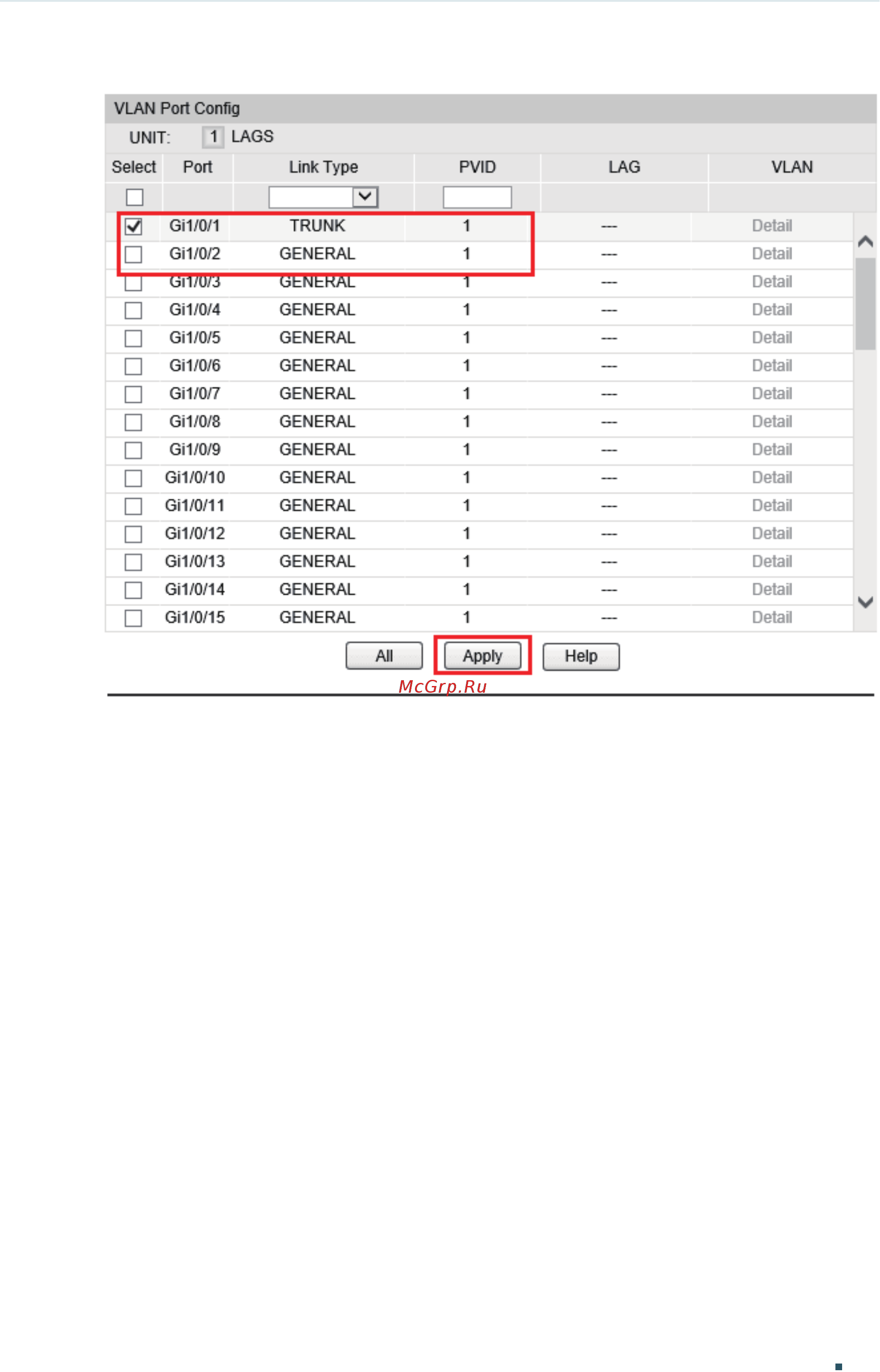

Figure 4-8 Configure the Port

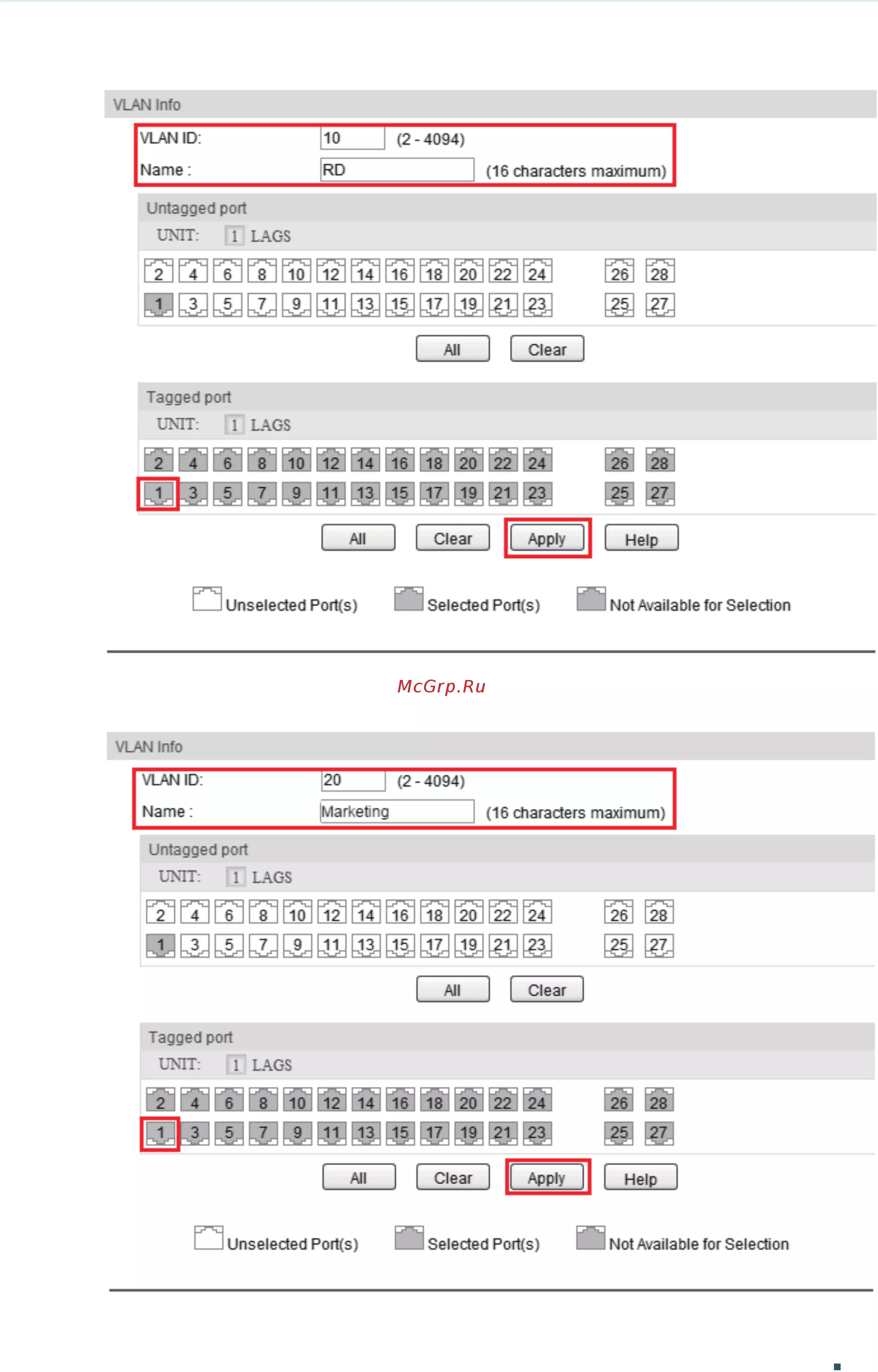

2) Choose VLAN > 802.1Q VLAN > VLAN Config and click Create to load the following
page. Create VLAN 10 and VLAN 20, and add port 1/0/1 to the two VLANs; create VLAN
30, and add port 1/0/2 to VLAN 30.
